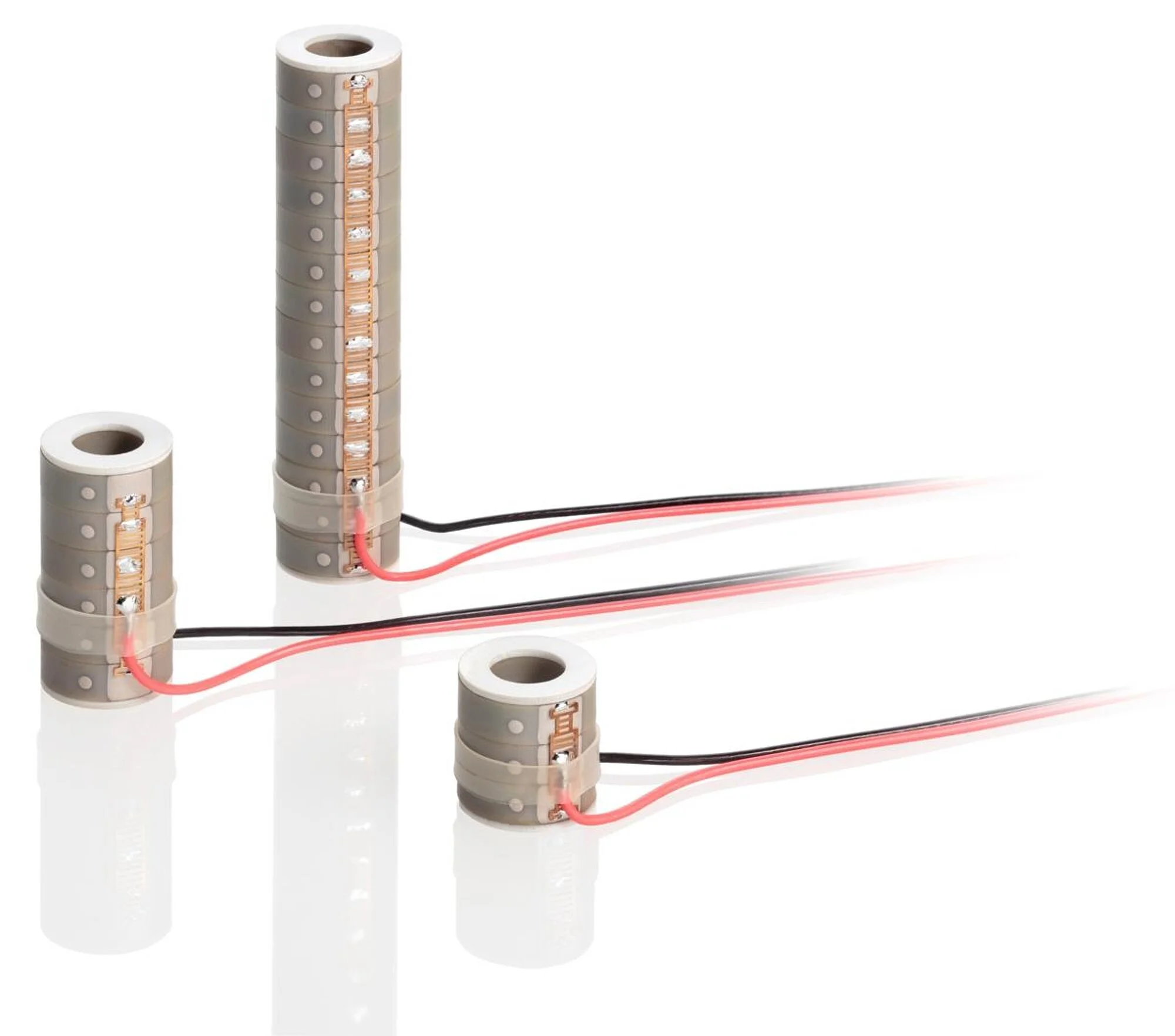

P-080 PICMA® Stack Multilayer Ring Actuator

With Inner Hole

Inner hole for preload or as aperture for optical applications
Superior lifetime
Ideal for dynamic operation
Microsecond response
Subnanometer resolution
UHV-compatible to 10^-9 hPa

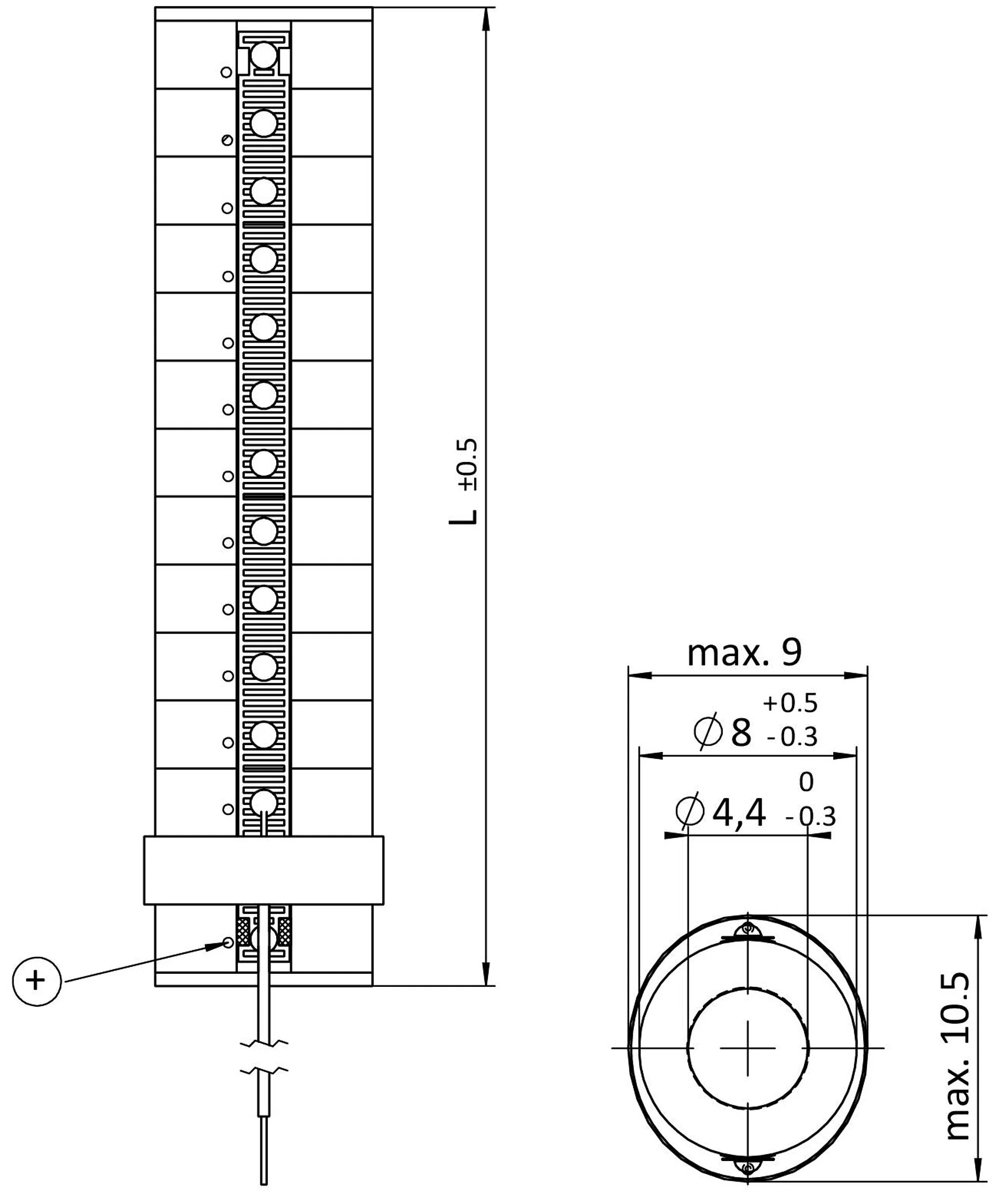

P-080 PICMA® Stack multilayer ring actuator, dimensions in mm. P-080.31x models: L = 8.5 mm; P-080.34x models: L = 16 mm; P-080.39x models: L = 36 mm.

Ürün Bilgileri Bilgiler Özellikler İndirmeler Taklif İste

Multilayer stack actuators

Flexible travel range up to 30 µm. Round cross section for easy integration.

UHV-compatible to 10^-9 hPa, no outgassing, high bakeout temperature.

PICMA® piezo linear actuators

Low operating voltage -20 to 100 V. Ceramic insulation. High reliability, long lifetime.

Possible modifications

Different heights, fast mounting according to customer requirements. Variety of shapes. Precision-ground end plates for reduced tolerances

Fields of application

Industry and research. For laser tuning, microdispensing, life sciences.

Motion	P-080.310	P-080.311	P-080.340	P-080.341	P-080.390	P-080.391	Tolerance
Active axes	Z	Z	Z	Z	Z	Z
Travel range in Z, open loop, at 0 to 100 V	5.5 µm	5.5 µm	11 µm	11 µm	25 µm	25 µm
Drive Properties	P-080.310	P-080.311	P-080.340	P-080.341	P-080.390	P-080.391	Tolerance
Actuator type	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator
Drive type	PICMA® Stack	PICMA® Stack	PICMA® Stack	PICMA® Stack	PICMA® Stack	PICMA® Stack
Operating voltage	-20 to 100 V	-20 to 100 V	-20 to 100 V	-20 to 100 V	-20 to 100 V	-20 to 100 V
Electrical capacitance in Z	0.86 µF	0.86 µF	1.7 µF	1.7 µF	4 µF	4 µF	±20 %
Mechanical Properties	P-080.310	P-080.311	P-080.340	P-080.341	P-080.390	P-080.391	Tolerance
Stiffness in Z	145 N/µm	145 N/µm	75 N/µm	75 N/µm	34 N/µm	34 N/µm
Resonant frequency in Z, unloaded	135 kHz	135 kHz	85 kHz	85 kHz	40 kHz	40 kHz	±20 %
Blocking force in Z	800 N	800 N	825 N	825 N	850 N	850 N	±20 %
Recommended preload for dynamic operation	15 MPa	15 MPa	15 MPa	15 MPa	15 MPa	15 MPa
Maximum preload for constant force	30 MPa	30 MPa	30 MPa	30 MPa	30 MPa	30 MPa
Cross section	annular	annular	annular	annular	annular	annular
Material	Piezo ceramic. Ceramic end surfaces made of Al₂O₃.	Piezo ceramic. Ceramic end surfaces made of Al₂O₃.	Piezo ceramic. Ceramic end surfaces made of Al₂O₃.	Piezo ceramic. Ceramic end surfaces made of Al₂O₃.	Piezo ceramic. Ceramic end surfaces made of Al₂O₃.	Piezo ceramic. Ceramic end surfaces made of Al₂O₃.
Piezo material	PIC252	PIC252	PIC252	PIC252	PIC252	PIC252
Length	8.5 mm	8.5 mm	16 mm	16 mm	36 mm	36 mm
Outer diameter	8 mm	8 mm	8 mm	8 mm	8 mm	8 mm
Inner diameter	4.4 mm	4.4 mm	4.4 mm	4.4 mm	4.4 mm	4.4 mm
Miscellaneous	P-080.310	P-080.311	P-080.340	P-080.341	P-080.390	P-080.391	Tolerance
Operating temperature range	-40 to 150 °C	-40 to 150 °C	-40 to 150 °C	-40 to 150 °C	-40 to 150 °C	-40 to 150 °C
Vacuum class	10⁻⁹ hPa	10⁻⁹ hPa	10⁻⁹ hPa	10⁻⁹ hPa	10⁻⁹ hPa	10⁻⁹ hPa
Connector	Solderable contacts	Stranded wires, PTFE isolated, AWG 30, Ø 0.61 mm	Solderable contacts	Stranded wires, PTFE isolated, AWG 30, Ø 0.61 mm	Solderable contacts	Stranded wires, PTFE isolated, AWG 30, Ø 0.61 mm
Recommended controllers / drivers	E-610, E-617, E-831, E-836	E-610, E-617, E-831, E-836	E-610, E-617, E-831, E-836	E-610, E-617, E-831, E-836	E-610, E-617, E-831, E-836	E-610, E-617, E-831, E-836
Cable length		0.1 m		0.1 m		0.1 m	±5 mm

Travel range in Z, open loop: Tolerance ±20 % with P-080.31x and P-080.34x models. Tolerance ±10 % with P-080.39x models.

Resonant frequency in Z, unloaded: Measured at 1 Vpp, unclamped. The value is halved for unilateral clamping.

Electrical capacitance in Z: Measured at 1 Vpp, 1 kHz, RT.

All data at 0 to 100 V.

Ask about customized versions.

Veri Sayfası

Datasheet P-080

Versiyon / Tarih

2023-12-13
pdf - 387 KB

İndir

Dokümantasyon

Short Instructions PZ264

PICMA® Multilayer Piezo Actuators: P-08x, P-88x, PD0xx, PD410, PL0xx, PL1xx, PICMA® Stack, PICMA® Chip, PICMA® Bender

Versiyon / Tarih

3.0.0 04/2020
,pdf - 826 KB,

İndir

Dokümantasyon

User Manual PZ259

P-882 – P-888 PICMA® Stack multilayer piezo actuators, P-080 PICMA® Stack multilayer ring actuators with inner hole, P-088 PICMA® Stack multilayer piezo actuators, round cross section

Versiyon / Tarih

1.1.0 2021-09-27
pdf - 3 MB

Listeye Ekle Listeden Çıkar

P-080.310

PICMA® Stack multilayer ring actuator; PICMA® piezo actuator drive; 5.5 µm travel range (open loop); 8 mm × 4.4 mm × 8.5 mm (OD × ID × L); 800 N feed force; vacuum-compatible to 10-9 hPa; solderable contacts
