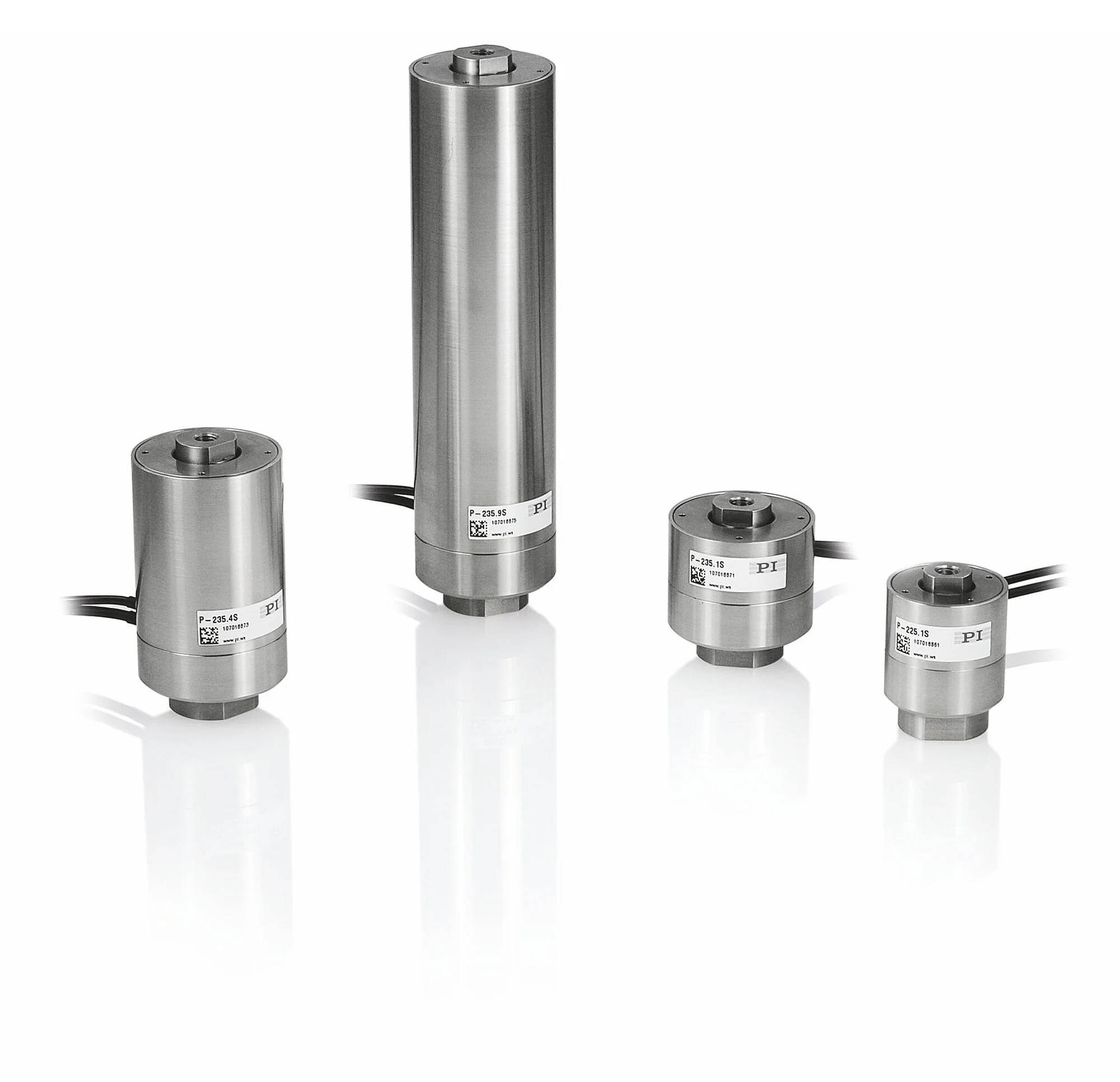

P-235 PICA Power Piezo Actuators

Preloaded High-Load Piezo Actuators (HVPZT) with Sensor Option

Extremely high stiffness
Push force capacity to 30000 N
Pull force capacity to 3500 N
Travel range up to 180 µm
Options: Vacuum, high-temperature versions, waterproof housing

P-235, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

Ürün Bilgileri Bilgiler Özellikler İndirmeler Taklif İste

Application fields

Active vibration absorber
Adaptive mechanics
Precision mechanics / micromechanics
Optics
Measuring technology / interferometry
Adaptive systems technology
Switch
Laser tuning
Force generation / materials testing
Nanotechnology

PICA Power piezo actuators for high loads

PICA Power high-load stack actuators are reliable and provide long travel ranges for heavy loads. The actuators are suitable for demanding loads with high temperatures.

Suitable for sophisticated vacuum applications

Piezo actuators do not require lubricants or cause abrasion. Versions are available for vacuum to 10^-6 hPa and for particularly high or low operating temperatures.

Motion	P-235.10	P-235.10V	P-235.1S	P-235.1SV	P-235.20	P-235.20V	P-235.2S	P-235.2SV	P-235.40	P-235.40V	P-235.4S	P-235.4SV	P-235.80	P-235.80V	P-235.8S	P-235.8SV	P-235.90	P-235.90V	P-235.9S	P-235.9SV	Tolerance
Active axes	Z	Z	Z	Z	Z	Z	Z	Z	Z	Z	Z	Z	Z	Z	Z	Z	Z	Z	Z	Z
Travel range in Z, open loop	15 µm	15 µm	15 µm	15 µm	30 µm	30 µm	30 µm	30 µm	60 µm	60 µm	60 µm	60 µm	120 µm	120 µm	120 µm	120 µm	180 µm	180 µm	180 µm	180 µm	±20 %
Travel range in Z			15 µm	15 µm			30 µm	30 µm			60 µm	60 µm			120 µm	120 µm			180 µm	180 µm
Linearity error in Z			0.2 %	0.2 %			0.2 %	0.2 %			0.2 %	0.2 %			0.2 %	0.2 %			0.2 %	0.2 %	typ.
Positioning	P-235.10	P-235.10V	P-235.1S	P-235.1SV	P-235.20	P-235.20V	P-235.2S	P-235.2SV	P-235.40	P-235.40V	P-235.4S	P-235.4SV	P-235.80	P-235.80V	P-235.8S	P-235.8SV	P-235.90	P-235.90V	P-235.9S	P-235.9SV	Tolerance
Resolution in Z, open loop	0.15 nm	0.15 nm	0.15 nm	0.15 nm	0.3 nm	0.3 nm	0.3 nm	0.3 nm	0.6 nm	0.6 nm	0.6 nm	0.6 nm	1.2 nm	1.2 nm	1.2 nm	1.2 nm	1.8 nm	1.8 nm	1.8 nm	1.8 nm	typ.
Integrated sensor			SGS, direct position measuring	SGS, direct position measuring			SGS, direct position measuring	SGS, direct position measuring			SGS, direct position measuring	SGS, direct position measuring			SGS, direct position measuring	SGS, direct position measuring			SGS, direct position measuring	SGS, direct position measuring
System resolution in Z			0.3 nm	0.3 nm			0.6 nm	0.6 nm			1.2 nm	1.2 nm			2.4 nm	2.4 nm			3.6 nm	3.6 nm
Drive Properties	P-235.10	P-235.10V	P-235.1S	P-235.1SV	P-235.20	P-235.20V	P-235.2S	P-235.2SV	P-235.40	P-235.40V	P-235.4S	P-235.4SV	P-235.80	P-235.80V	P-235.8S	P-235.8SV	P-235.90	P-235.90V	P-235.9S	P-235.9SV	Tolerance
Operating voltage	0 to 1000	0 to 1000	0 to 1000	0 to 1000	0 to 1000	0 to 1000	0 to 1000	0 to 1000	0 to 1000	0 to 1000	0 to 1000	0 to 1000	0 to 1000	0 to 1000	0 to 1000	0 to 1000	0 to 1000	0 to 1000	0 to 1000	0 to 1000
Drive type	PICA	PICA	PICA	PICA	PICA	PICA	PICA	PICA	PICA	PICA	PICA	PICA	PICA	PICA	PICA	PICA	PICA	PICA	PICA	PICA
Actuator type	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator
Electrical capacitance in Z	550 nF	550 nF	550 nF	550 nF	1100 nF	1100 nF	1100 nF	1100 nF	2400 nF	2400 nF	2400 nF	2400 nF	5100 nF	5100 nF	5100 nF	5100 nF	7800 nF	7800 nF	7800 nF	7800 nF	±20 %
Mechanical Properties	P-235.10	P-235.10V	P-235.1S	P-235.1SV	P-235.20	P-235.20V	P-235.2S	P-235.2SV	P-235.40	P-235.40V	P-235.4S	P-235.4SV	P-235.80	P-235.80V	P-235.8S	P-235.8SV	P-235.90	P-235.90V	P-235.9S	P-235.9SV	Tolerance
Stiffness in Z	860 N/µm	860 N/µm	860 N/µm	860 N/µm	600 N/µm	600 N/µm	600 N/µm	600 N/µm	380 N/µm	380 N/µm	380 N/µm	380 N/µm	210 N/µm	210 N/µm	210 N/µm	210 N/µm	150 N/µm	150 N/µm	150 N/µm	150 N/µm	±20 %
Resonant frequency in Z, unloaded	14 kHz	14 kHz	14 kHz	14 kHz	10 kHz	10 kHz	10 kHz	10 kHz	7 kHz	7 kHz	7 kHz	7 kHz	4 kHz	4 kHz	4 kHz	4 kHz	2.8 kHz	2.8 kHz	2.8 kHz	2.8 kHz	±20 %
Permissible push force in Y	707 N	707 N	707 N	707 N	420 N	420 N	420 N	420 N	232 N	232 N	232 N	232 N	147 N	147 N	147 N	147 N	147 N	147 N	147 N	147 N	max.
Permissible push force in Z	30000 N	30000 N	30000 N	30000 N	30000 N	30000 N	30000 N	30000 N	30000 N	30000 N	30000 N	30000 N	30000 N	30000 N	30000 N	30000 N	30000 N	30000 N	30000 N	30000 N	max.
Permissible pull force in Z	3500 N	3500 N	3500 N	3500 N	3500 N	3500 N	3500 N	3500 N	3500 N	3500 N	3500 N	3500 N	3500 N	3500 N	3500 N	3500 N	3500 N	3500 N	3500 N	3500 N	max.
Permissible torque in θZ	2 N·m	2 N·m	2 N·m	2 N·m	2 N·m	2 N·m	2 N·m	2 N·m	2 N·m	2 N·m	2 N·m	2 N·m	2 N·m	2 N·m	2 N·m	2 N·m	2 N·m	2 N·m	2 N·m	2 N·m	max.
Overall mass	580 g	580 g	580 g	580 g	690 g	690 g	690 g	690 g	940 g	940 g	940 g	940 g	1400 g	1400 g	1400 g	1400 g	1900 g	1900 g	1900 g	1900 g	±5 %
Material	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel
Miscellaneous	P-235.10	P-235.10V	P-235.1S	P-235.1SV	P-235.20	P-235.20V	P-235.2S	P-235.2SV	P-235.40	P-235.40V	P-235.4S	P-235.4SV	P-235.80	P-235.80V	P-235.8S	P-235.8SV	P-235.90	P-235.90V	P-235.9S	P-235.9SV	Tolerance
Operating temperature range	-40 to 80 °C	-40 to 100 °C	-40 to 80 °C	-40 to 100 °C	-40 to 80 °C	-40 to 100 °C	-40 to 80 °C	-40 to 100 °C	-40 to 80 °C	-40 to 100 °C	-40 to 80 °C	-40 to 100 °C	-40 to 80 °C	-40 to 100 °C	-40 to 80 °C	-40 to 100 °C	-40 to 80 °C	-40 to 100 °C	-40 to 80 °C	-40 to 100 °C
Connector	LEMO HVPZT	LEMO HVPZT	LEMO HVPZT	LEMO HVPZT	LEMO HVPZT	LEMO HVPZT	LEMO HVPZT	LEMO HVPZT	LEMO HVPZT	LEMO HVPZT	LEMO HVPZT	LEMO HVPZT	LEMO HVPZT	LEMO HVPZT	LEMO HVPZT	LEMO HVPZT	LEMO HVPZT	LEMO HVPZT	LEMO HVPZT	LEMO HVPZT
Cable length	1 m	1.5 m	1 m	1.5 m	1 m	1.5 m	1 m	1.5 m	1 m	1.5 m	1 m	1.5 m	1 m	1.5 m	1 m	1.5 m	1 m	1.5 m	1 m	1.5 m
Recommended controllers / drivers	E-462, E-464, E-470 • E-472 • E-421, E-481, E-482, E-508	E-462, E-464, E-470 • E-472 • E-421, E-481, E-482, E-508	E-462, E-464, E-470 • E-472 • E-421, E-481, E-482, E-508	E-462, E-464, E-470 • E-472 • E-421, E-481, E-482, E-508	E-462, E-464, E-470 • E-472 • E-421, E-481, E-482, E-508	E-462, E-464, E-470 • E-472 • E-421, E-481, E-482, E-508	E-462, E-464, E-470 • E-472 • E-421, E-481, E-482, E-508	E-462, E-464, E-470 • E-472 • E-421, E-481, E-482, E-508	E-462, E-464, E-470 • E-472 • E-421, E-481, E-482, E-508	E-462, E-464, E-470 • E-472 • E-421, E-481, E-482, E-508	E-462, E-464, E-470 • E-472 • E-421, E-481, E-482, E-508	E-462, E-464, E-470 • E-472 • E-421, E-481, E-482, E-508	E-462, E-464, E-470 • E-472 • E-421, E-481, E-482, E-508	E-462, E-464, E-470 • E-472 • E-421, E-481, E-482, E-508	E-462, E-464, E-470 • E-472 • E-421, E-481, E-482, E-508	E-462, E-464, E-470 • E-472 • E-421, E-481, E-482, E-508	E-462, E-464, E-470 • E-472 • E-421, E-481, E-482, E-508	E-462, E-464, E-470 • E-472 • E-421, E-481, E-482, E-508	E-462, E-464, E-470 • E-472 • E-421, E-481, E-482, E-508	E-462, E-464, E-470 • E-472 • E-421, E-481, E-482, E-508
Vacuum class		10⁻⁶ hPa		10⁻⁶ hPa		10⁻⁶ hPa		10⁻⁶ hPa		10⁻⁶ hPa		10⁻⁶ hPa		10⁻⁶ hPa				10⁻⁶ hPa		10⁻⁶ hPa
Sensor connector			LEMO for strain gauge sensors	LEMO for strain gauge sensors			LEMO for strain gauge sensors	LEMO for strain gauge sensors			LEMO for strain gauge sensors	LEMO for strain gauge sensors			LEMO for strain gauge sensors	LEMO for strain gauge sensors			LEMO for strain gauge sensors	LEMO for strain gauge sensors

3D Modeller

P-235 3-D model

Versiyon / Tarih

zip - 2 MB

Listeye Ekle Listeden Çıkar

Veri Sayfası

Datasheet P-235

Versiyon / Tarih

2022-12-21
pdf - 741 KB

İndir

Dokümantasyon

Short Instructions PZ246EK

Preloaded PICA Piezo Actuators 1000 V: P-21x, P-2x5

Versiyon / Tarih

2.2.1 August 2018
pdf - 1 MB

İndir

Dokümantasyon

User Manual PZ245

P-225, P-235 Preloaded High-Load Piezo Actuators, 1000 V

Versiyon / Tarih

1.1.1 2022-05-24
pdf - 2 MB

Listeye Ekle Listeden Çıkar

Ürün Notu

Product Change Notification Piezo Actuator Driven Products

Versiyon / Tarih

2021-04-19
pdf - 377 KB

İndir

P-235.10

PICA Power piezo actuator; PICA piezo actuator drive; 15 µm travel range (open loop); PIC255; LEMO HVPZT; 1 m cable length
