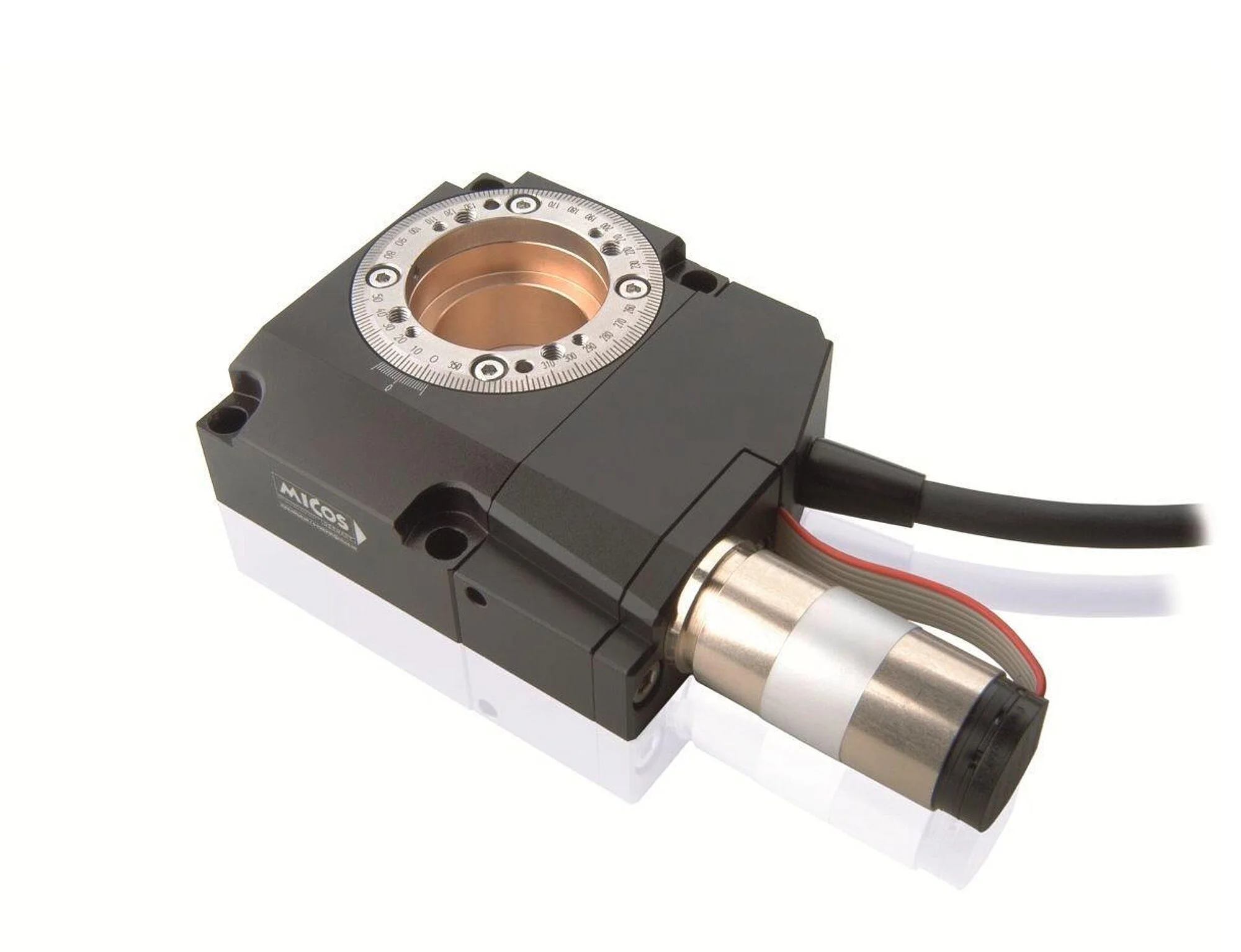

RS-40 Compact Rotation Stage

Precision Positioning

Unlimited travel range
Repeatability to 87 µrad
20 mm Ø aperture
Reference switch
Vacuum-compatible variants available

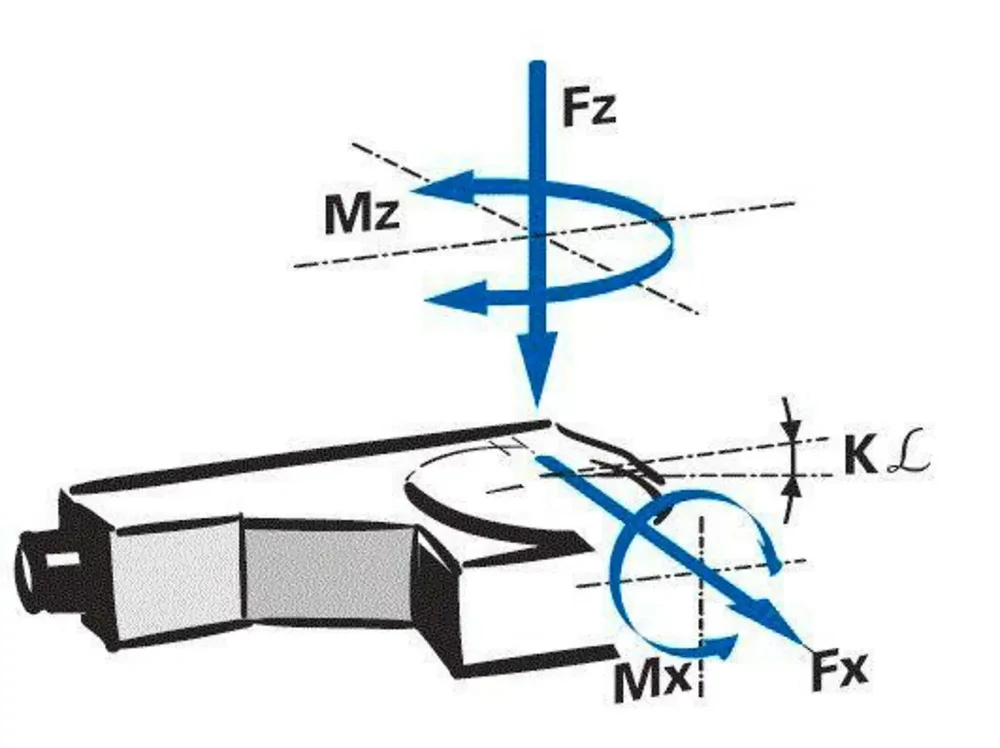

Direction of the axes and torques for rotation stages

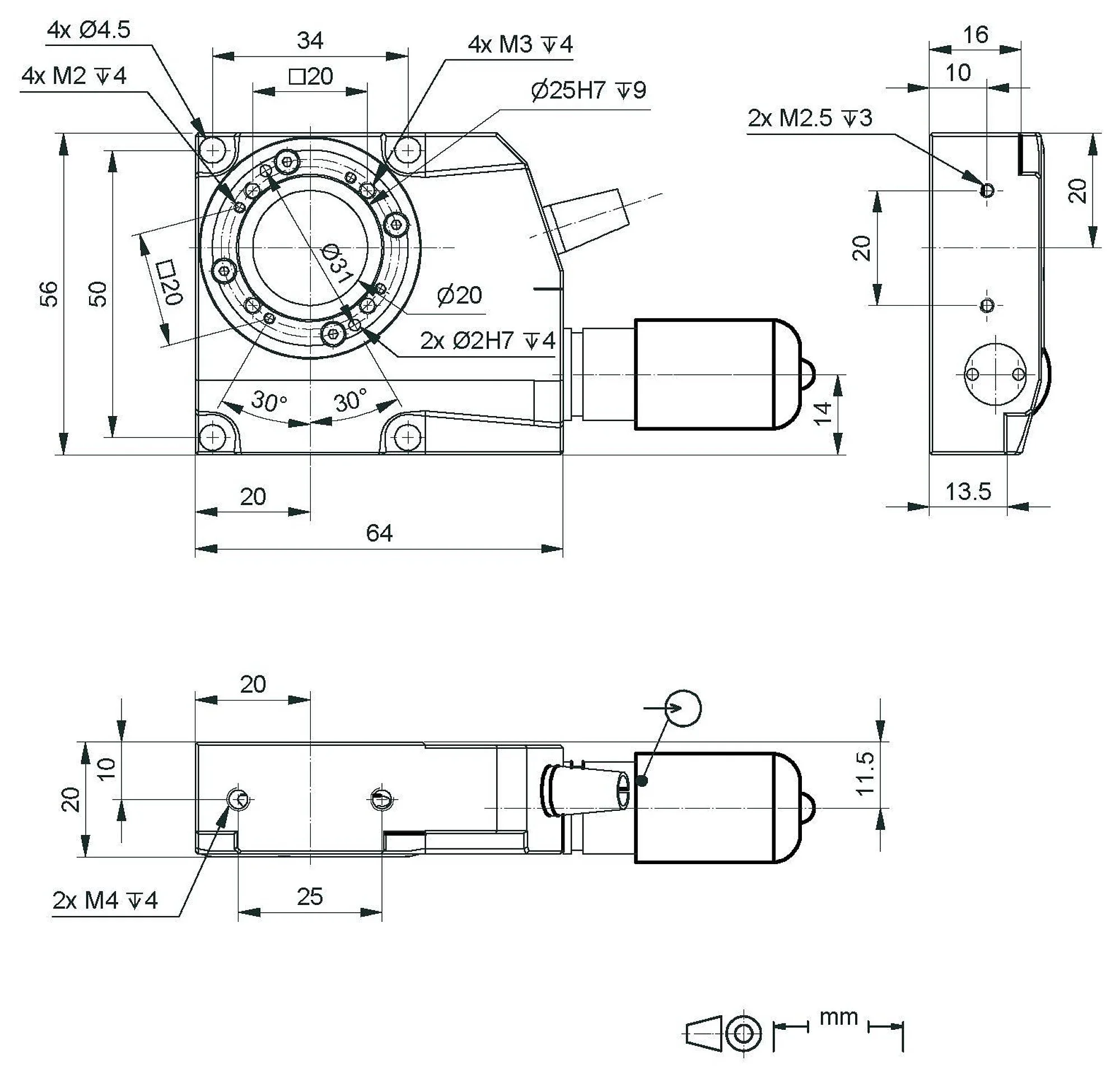

RS-40 rotation stage, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

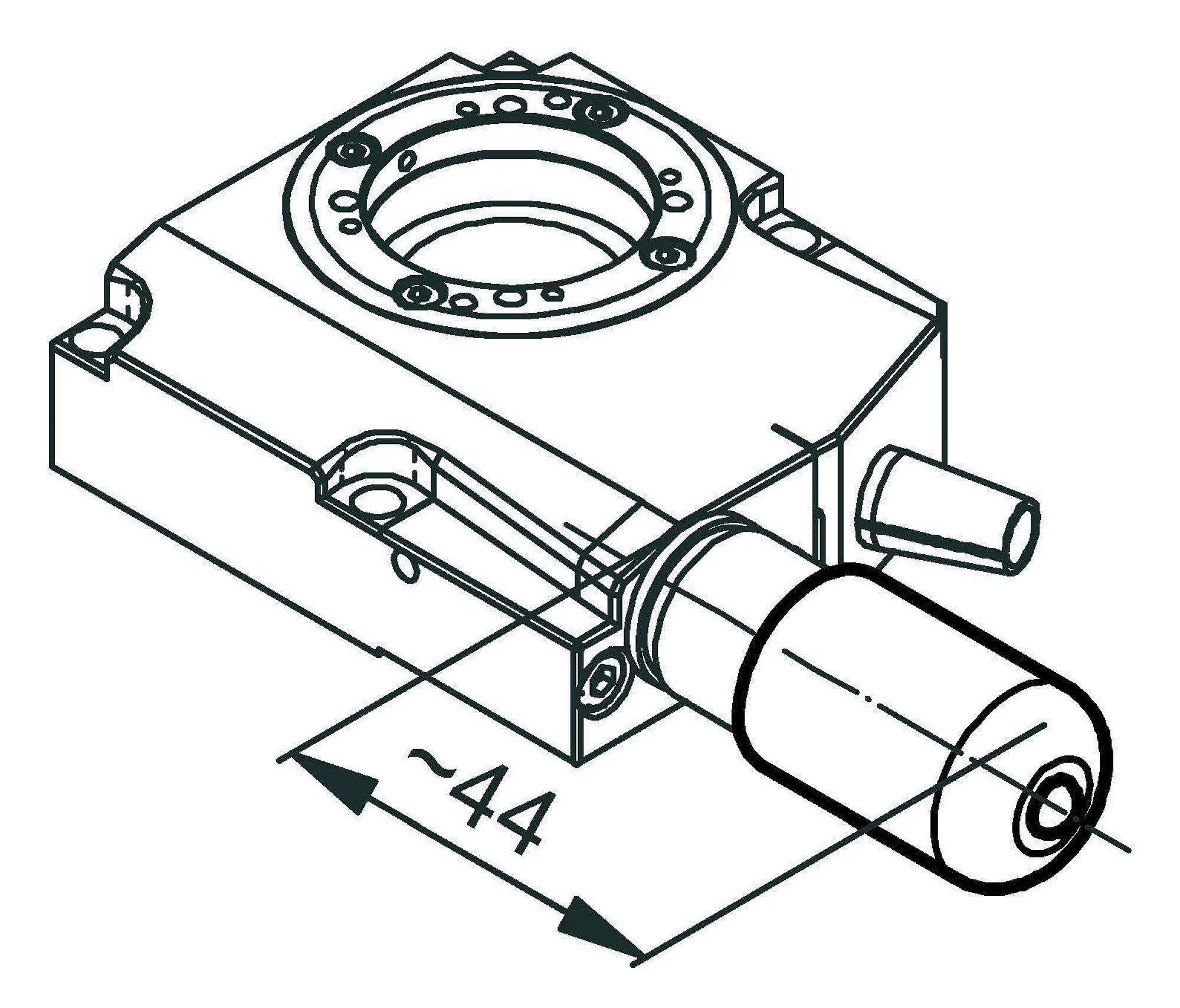

RS-40 rotation stage, DC motor, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

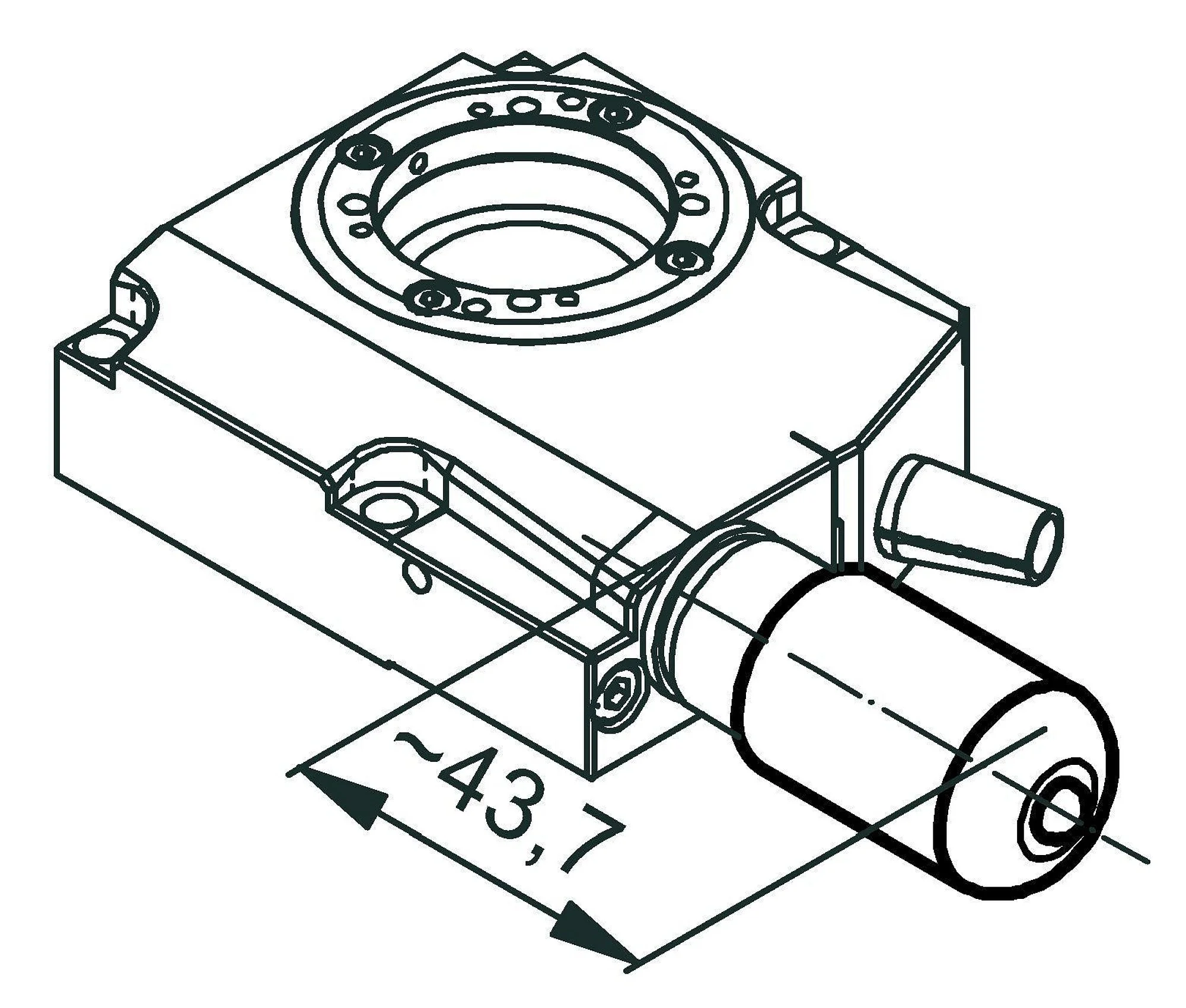

RS-40 rotation stage, stepper motor, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

Ürün Bilgileri Bilgiler İndirmeler Taklif İste

Standard-class rotation stage

Worm drive. Aperture with 20 mm Ø. Reference switch.

Versions

DC motor with gearhead, rotary encoder on the motor shaft
Stepper motor with gearhead
Vacuum versions available on request

Application fields

Precision microassembly, research, automation, vacuum

3D Modeller

RS-40 3-D model

Versiyon / Tarih

zip - 615 KB

Listeye Ekle Listeden Çıkar

Veri Sayfası

Datasheet RS-40

Versiyon / Tarih

2023-07-14
pdf - 880 KB

İndir

Dokümantasyon

Short Instructions MP146EK

Positioners with Electric Motors: DT-xx / HPS-170 / L-xxx / LS-xxx / MTS-65 / PRS-xxx / RS-40 / UPL-120 / VT-80 / WT-xx / WT-xxx

Versiyon / Tarih

2.0.0 01/2020
,,,,,pdf - 736 KB,,,,,

İndir

Dokümantasyon

User Manual RS-40

Compact Rotation Stage

Versiyon / Tarih

2022-05-03
,pdf - 655 KB,

Listeye Ekle Listeden Çıkar

321691001-0000

Compact rotation stage; DC gear motor; 360° rotational angle; 20 N load capacity; 7 °/s maximum angular velocity; incremental rotary encoder, 2048 cts./rev. sensor resolution, A/B quadrature, RS-422

Teklif Listesine Ekle Teklif Listesinden Çıkar

321692001

Compact rotation stage; 2-phase stepper motor with gearhead; 360° rotational angle; 10 N load capacity; 5 °/s maximum angular velocity

Teklif Listesine Ekle Teklif Listesinden Çıkar

İlgili Ürünler

DT-80 Compact Rotation Stage Large Clear Aperture

DT-34 Miniature Rotation Stage Compact Dimensions, with DC or Stepper Motor
