Scalable Solution for Industrial Laser Processing

Fast Configuration & Implementation – Exceptional Contouring – High Throughput

Today, requirements of machine builders in precision automation, such as laser processing cannot only aim at achieving the desired specifications at a purely component level. In order to reach their desired high performance, a coordinated and harmonized design and operation of the overall system is required. For example, laser processes must produce tiny geometries in the micrometer range while enabling consistent, accurate and dynamic machining in multiple dimensions. With the standardized integrated approach for multi-axis systems, the X-417 supports machine builders to quickly configure and integrate the appropriate requirements, helping them to optimize their design and development time and ultimately become more competitive and able to expedite on their customers’ and individual demands.

Key Benefits of the Solution

Fast configuration
Flexibility and scalability
Reduced costs and installation time
On-site support by engineering and application experts

Key Features of the Platform

Exceptional contouring
Increased throughput and accuracy
Easy integration of lasers
Delivered aligned, tuned, and calibrated
Supported by measurement data

Z Axis – Adjustment of Laser Head

High-load ball screw linear stage with holding brake for avoiding collision
Robust industrial IP65 connectors for flexible cable exit

XY Axis – Workpiece Positioning

High-dynamic ironless linear motors for fast and precise contouring
Reference edge to ease the alignment in the machine
Connector for purge air, side seal and hard cover to protect against particles
XY drag chain cable management for smooth integration

Motion Control and Laser Firing

ACS EtherCAT® network motion control
Synchronization of motion to laser/event for high-accuracy cutting at high speeds
Servo control for improved tracking at higher duty cycles and for disturbance rejection
Support of higher level languages: C, C#, .Net, LabView™, MATLAB®, Visual Basic®, Python
G Code* for CNC-support

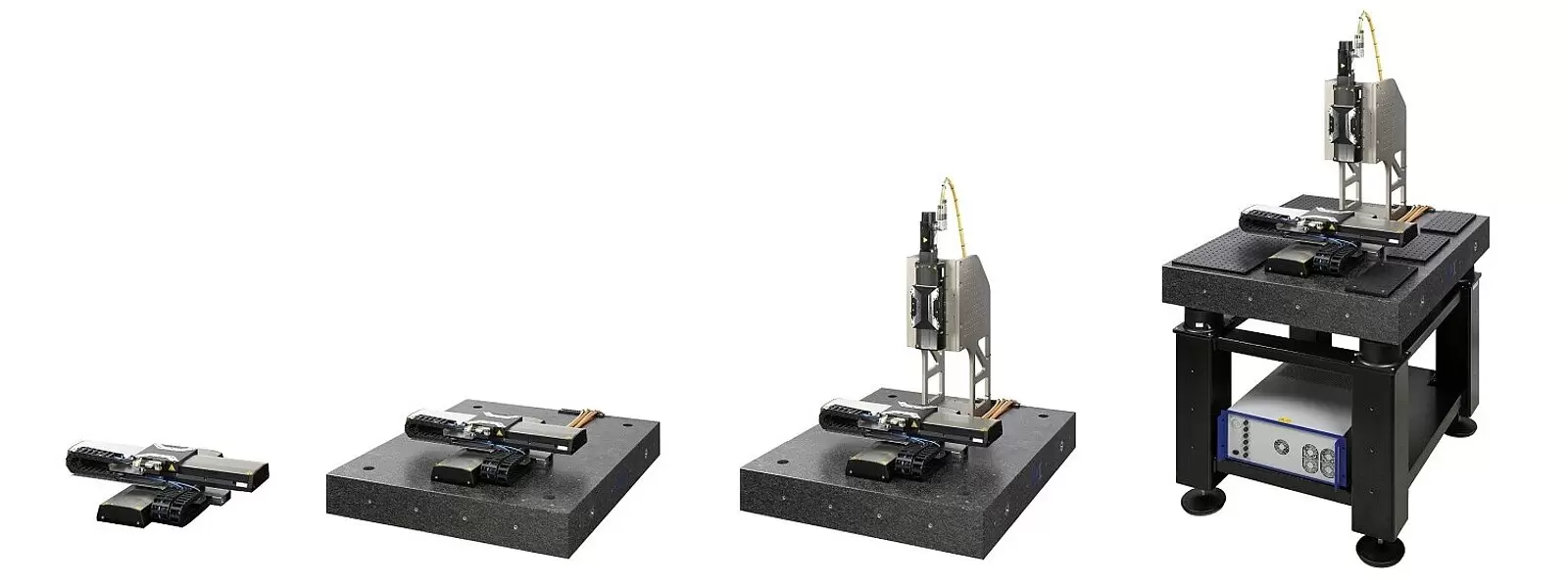

Scalable Standard Integration Levels with Flexible Travel Ranges, Payloads, Mounting Options and Optional Accessories

Accessories

Machine base for installation support
Breadboards for mounting equipment
Vertical bracket for flexible mounting possibilities
Alternative cable sets
Software packages

SPC CAD/CAM Software*

Flexible CAD-to-motion import
2D and 3D formats: DXF, DWG, Gerber, STL,…
Adaptive Mark-on-Fly for efficient processing of large parts

Scalable Solution for Industrial Laser Processing

Fast Configuration & Implementation – Exceptional Contouring – High Throughput

Key Benefits of the Solution

Key Features of the Platform

Z Axis – Adjustment of Laser Head

XY Axis – Workpiece Positioning

Motion Control and Laser Firing

Scalable Standard Integration Levels with Flexible Travel Ranges, Payloads, Mounting Options and Optional Accessories

Accessories

SPC CAD/CAM Software*

System in Motion

The video shows the modular approach and the advantages of the X-417 Integrated Multi-Axis System

Applications that Benefit from this Motion Solution

Laser Drilling

Laser Welding

Laser Cutting

Laser Micromachining

3D Printing

Measurement, Test & Inspection
