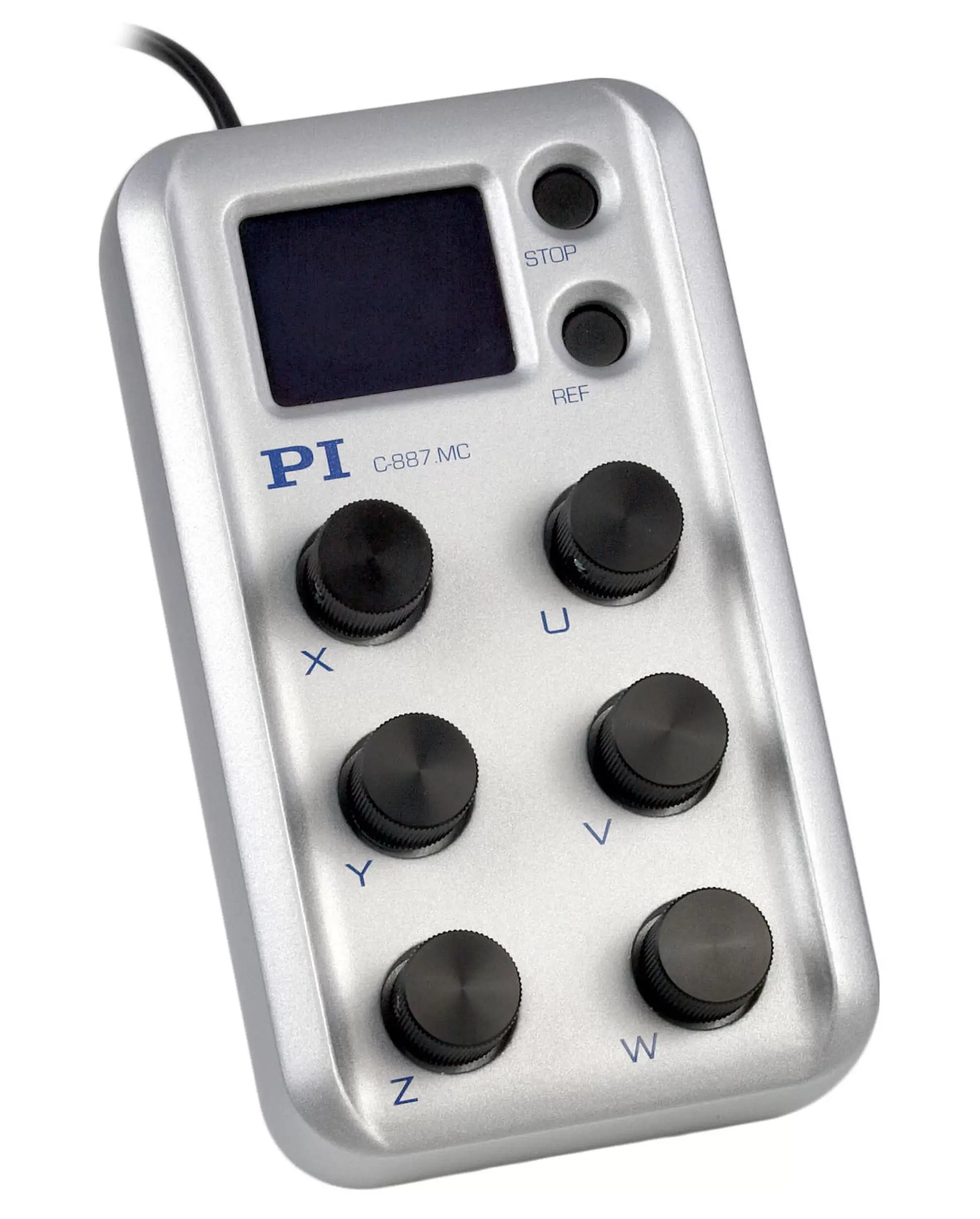

C-887.MC2 Manual Control Unit for Hexapods

Easy Manual Operation, Position Display

6 rotary knobs for independent positioning of all Cartesian axes; velocity and step size can be set
Additional pushbuttons for motion stop and referencing
Display of the position of all Cartesian axes
Display of velocity, errors, or pivot point possible
USB port for direct connection to the controller
Functionality integrated in the firmware of the C-887 controller

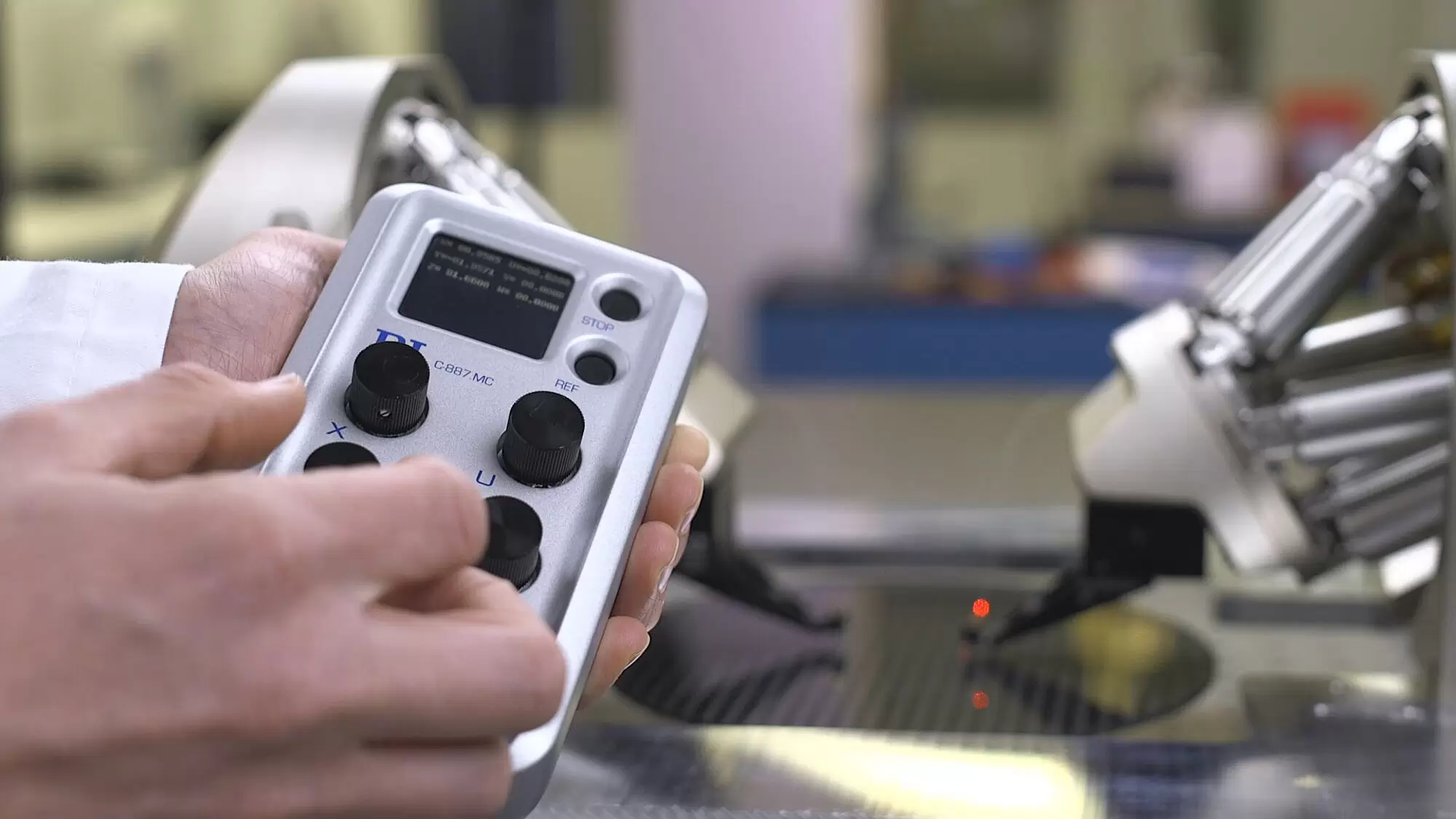

C-887.MC2 in practical use.

	C-887.MC2
Function	Manual control unit

Interfaces and operation	C-887.MC2
Communication interface	USB (1.0/1.1 or higher)
Display	160 × 128 pixels
Rotary knobs	32 steps/revolution, configurable step size

Miscellaneous	C-887.MC2
Operating voltage	Power supply via USB (low power device)
Cable length	3 m
Operating temperature range	5 to 40 °C
Mass	0.35 kg
Dimensions	153 mm × 88 mm × 43.15 mm (incl. rubber feet and knobs, without cable)

Veri Sayfası

Datasheet C-887.MC2

Versiyon / Tarih

2019-06-26
pdf - 467 KB

İndir

Dokümantasyon

User Manual C887T0036

C-887.MC2 Manual Control Unit

Versiyon / Tarih

2019-06-25
pdf - 663 KB

Listeye Ekle Listeden Çıkar

C-887.MC2

Manual control unit for hexapods, USB connector with 3 m connection cable, rotary knobs for all Cartesian axes, buttons for motion stop and referencing, position display
