V-308.APx Adapter Plate for V-308

For Mounting V-308 on Honeycomb Tables

Mounting on honeycomb tables with metrical hole pattern
Mounting on honeycomb tables with imperial hole pattern

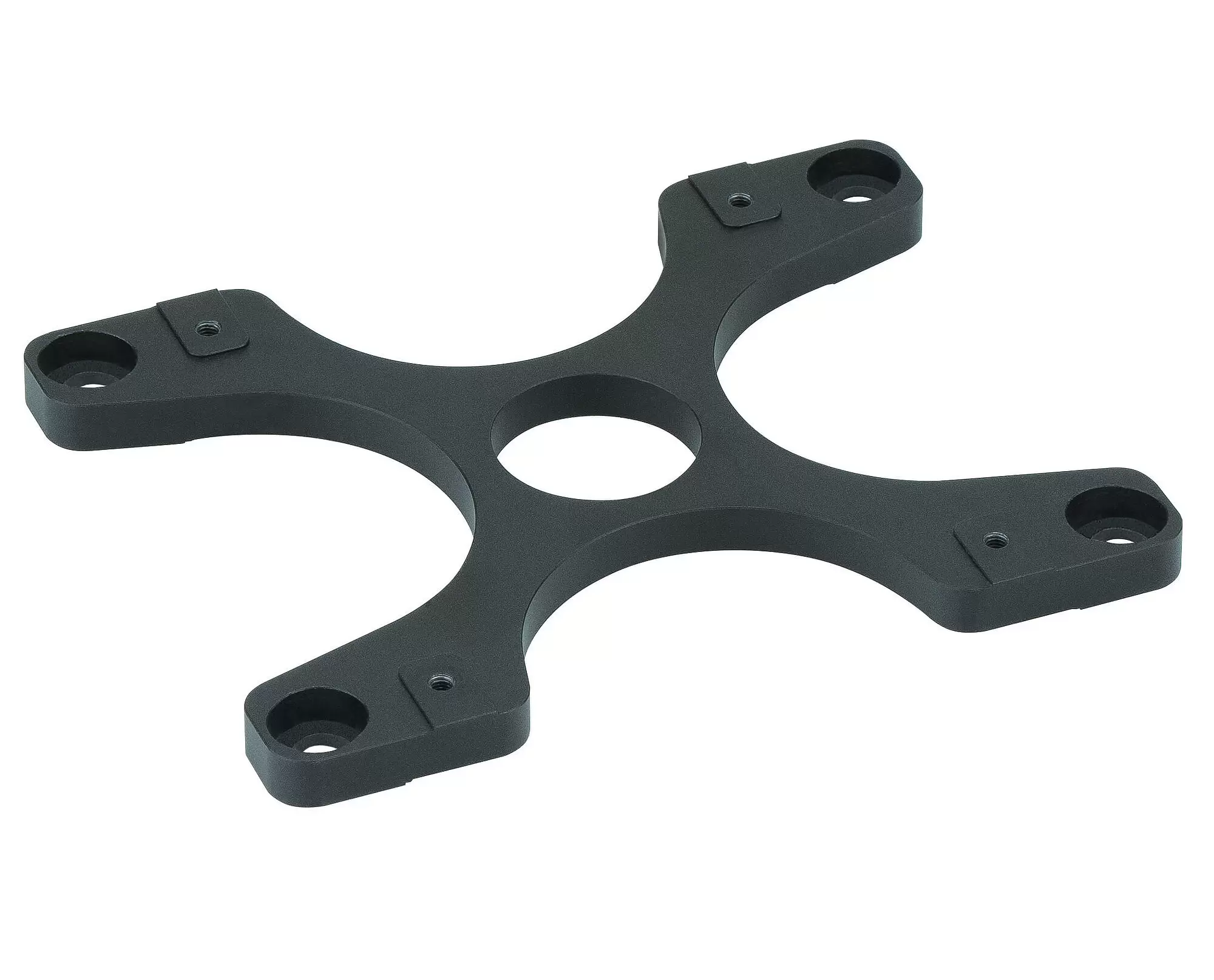

V-308.AP1

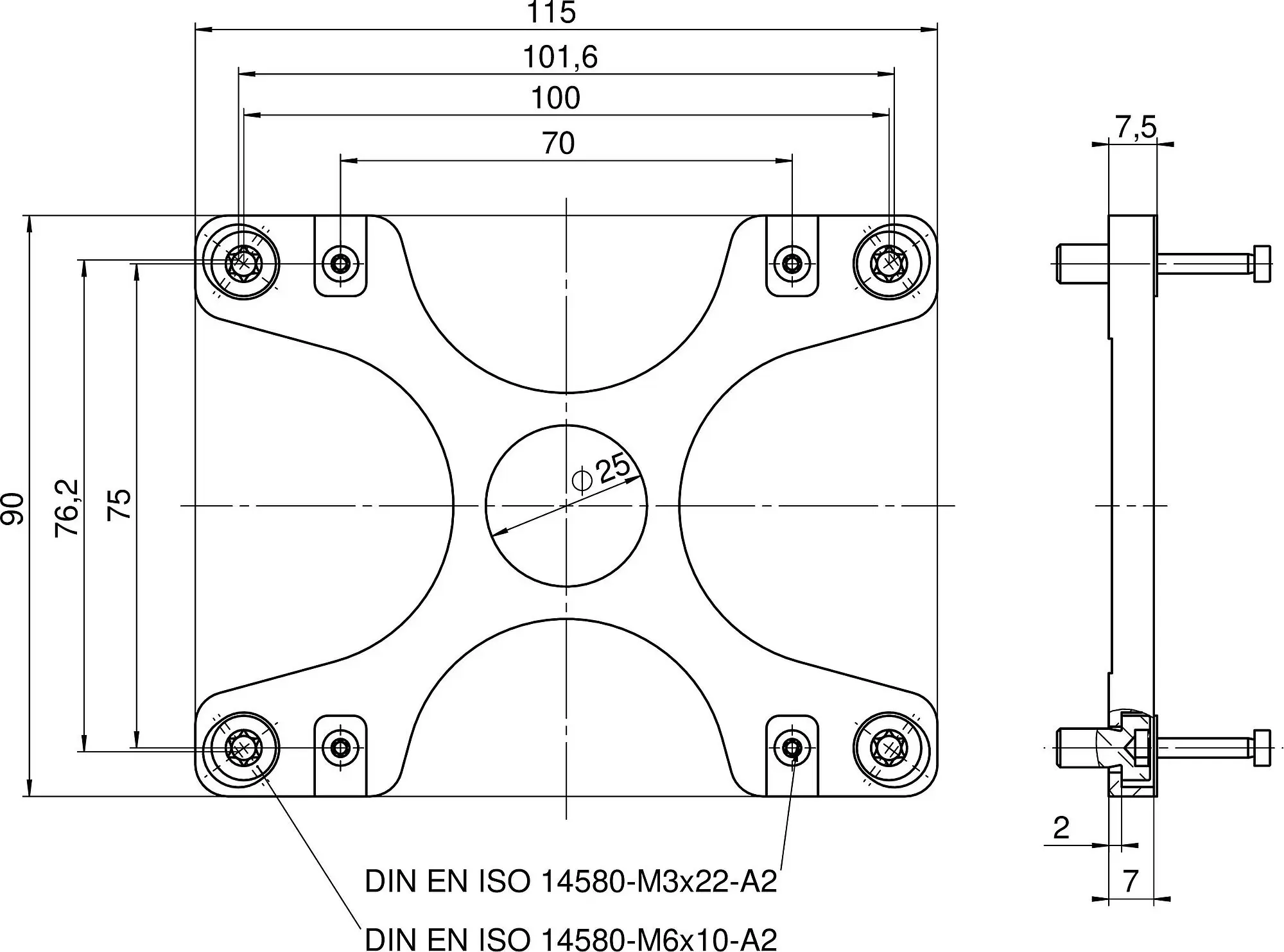

V-308.AP1, dimensions in mm

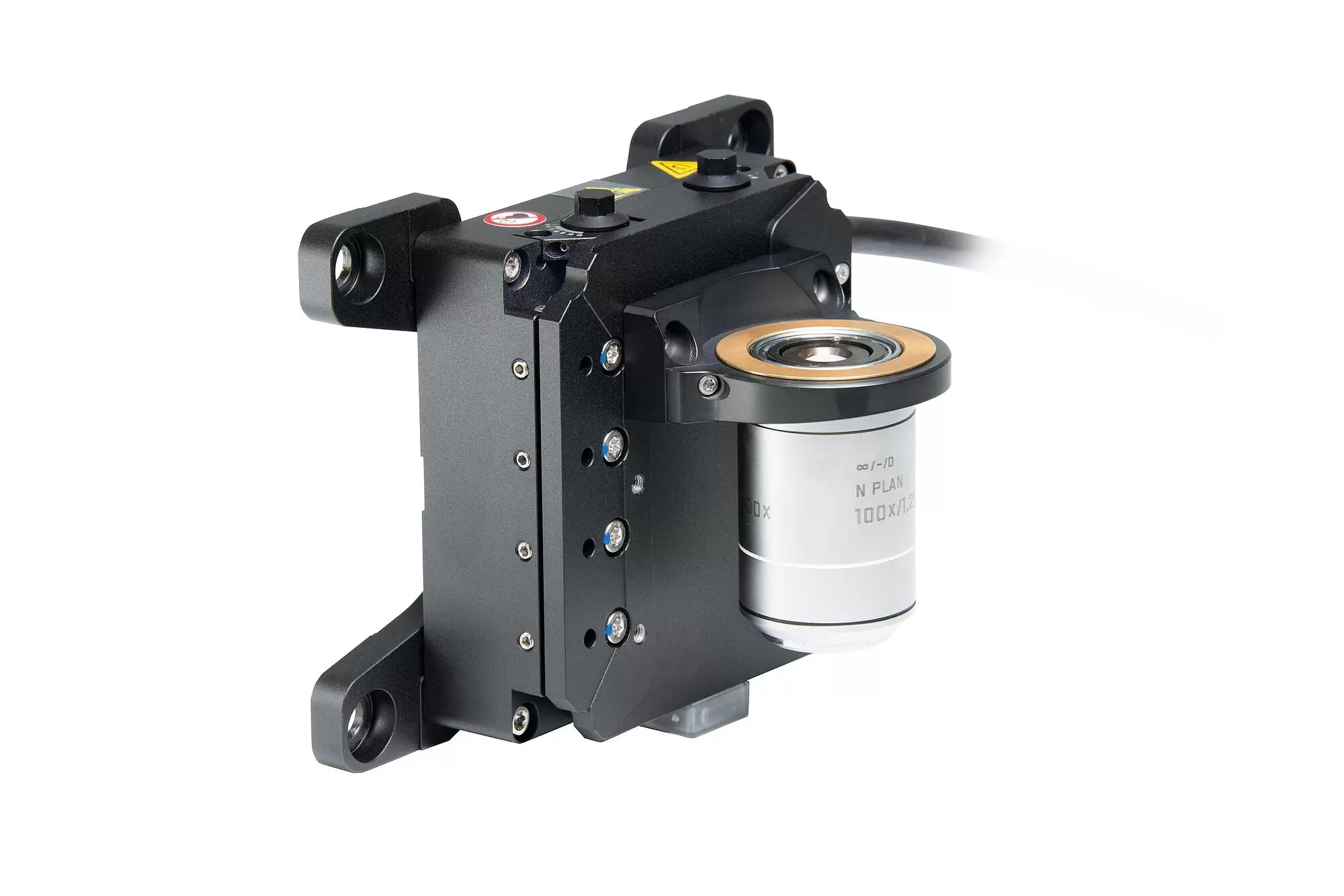

V-308 with V-308.AP1 adapter plate, V-308.OH1 objective holder, P-725.11L thread adapter, and objective

Özellikler İndirmeler Taklif İste

	V-308.AP1
Overall mass	120 g
Material	Aluminum alloy, black matt anodized

3D Modeller

3-D model V-308.AP1

Versiyon / Tarih

2021-07-08
zip - 138 KB

Listeye Ekle Listeden Çıkar

Veri Sayfası

Datasheet V-308.APx

Versiyon / Tarih

2021-07-08
pdf - 2 MB

İndir

V-308.AP1

Adapter plate for mounting V-308 positioners on honeycomb tables (metric or imperial)

Teklif Listesine Ekle Teklif Listesinden Çıkar
