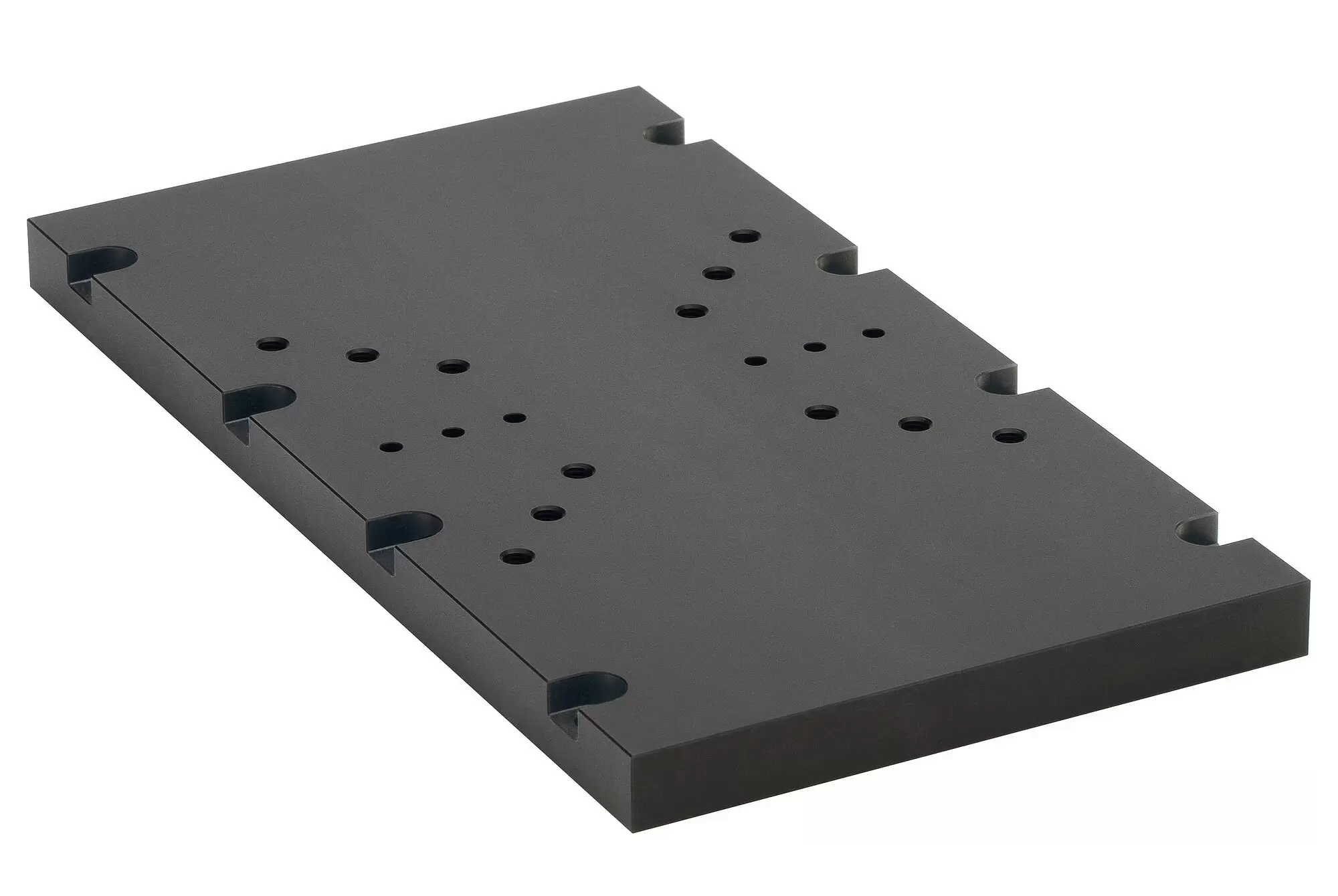

V-857.TTx Motion Platform for V-857 Positioners

Triple M6 Hole Pattern

Hole pattern, 50 mm × 50 mm
Hole pattern, 75 mm × 75 mm
Hole pattern, 100 mm × 100 mm
M6 threaded holes

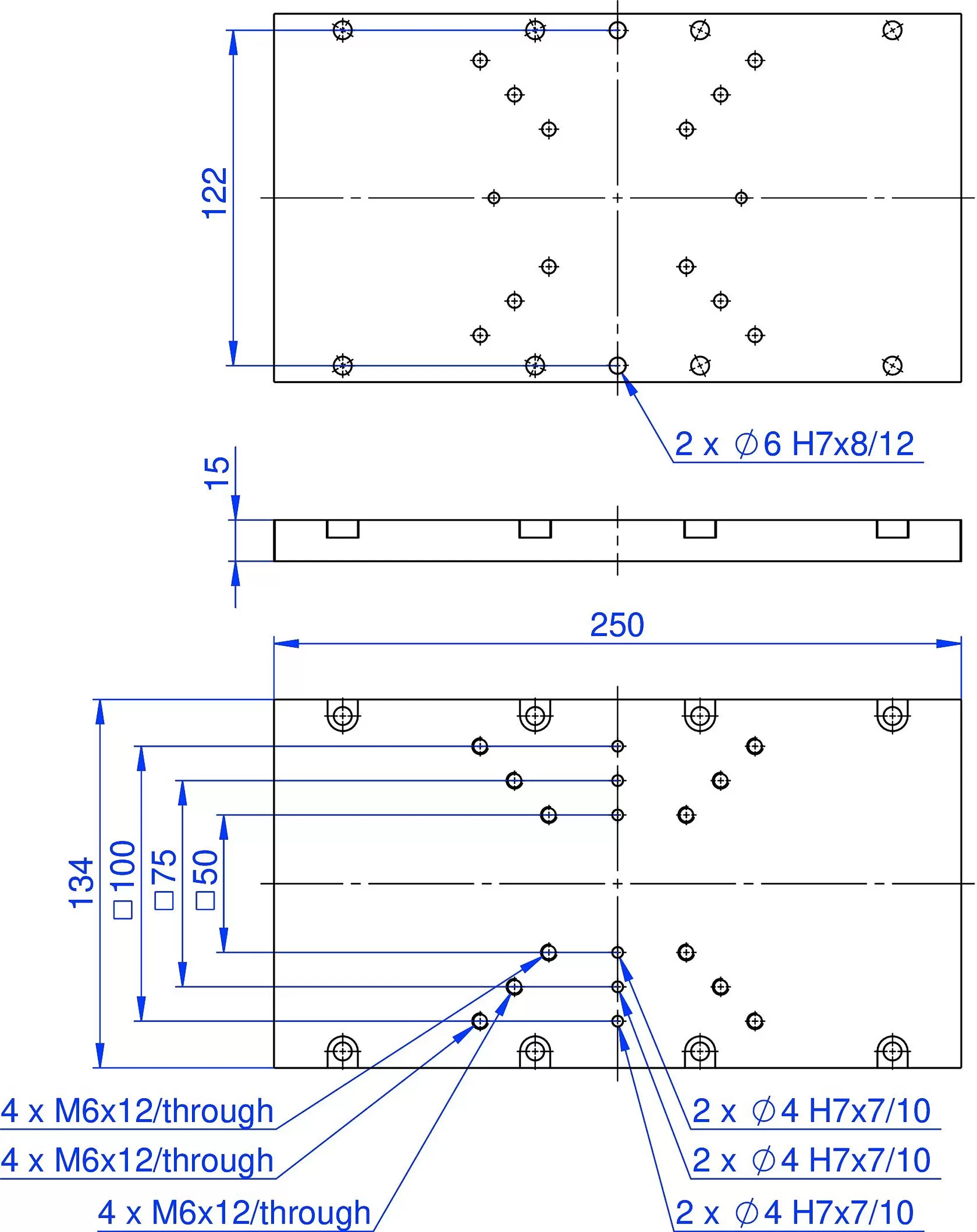

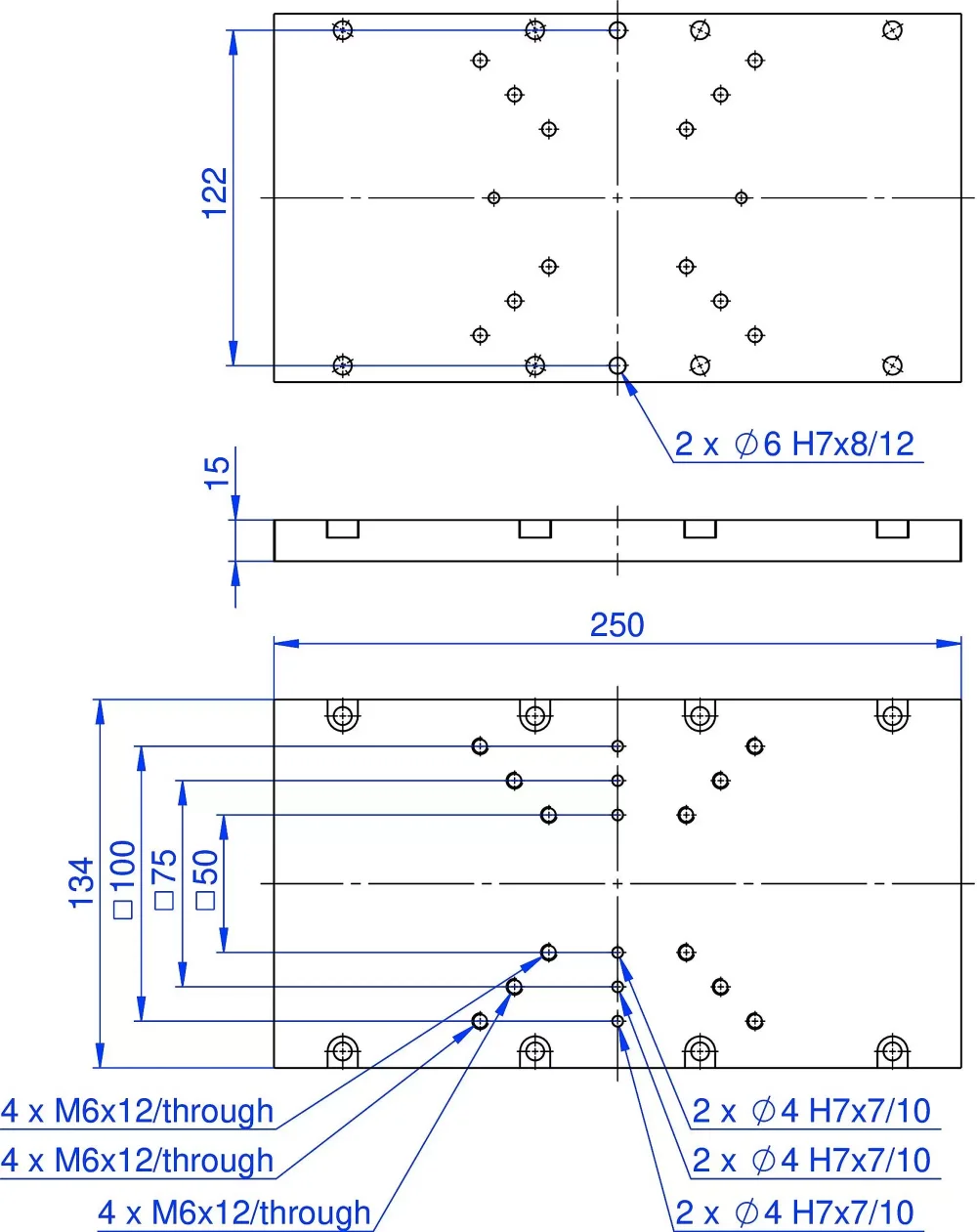

V-857.TT1, dimensions in mm

Ürün Bilgileri Bilgiler Özellikler İndirmeler Taklif İste

Product overview

The motion platform is available as optional accessory for the V-857 high-speed linear stages.

It offers versatile assembly options with a triple M6 hole pattern.

	V-857.TT1
Overall mass	1300 g
Material	Aluminum, black anodized

3D Modeller

3-D model V-857.TT1

Versiyon / Tarih

2021-03-25
zip - 37 KB

Listeye Ekle Listeden Çıkar

Veri Sayfası

Datasheet V-857.TTx

Versiyon / Tarih

2021-04-19
pdf - 650 KB

İndir

V-857.TT1

Motion platform for V-857 Positioners
