Ürünler PI - Vacuum Linear, Rotation, Elevation Stages and Accessories
C-815.VFxx Vacuum Feedthroughs
Interfaces Between Air Side and High Vacuum (HV) or Ultrahigh Vacuum (UHV)
  • Accessories for positioning stages suitable for vacuum
  • Closure and port for vacuum chambers
  • Vacuum compatible to 10-9 hPa
C-815.VFU1
C-815.VFU1

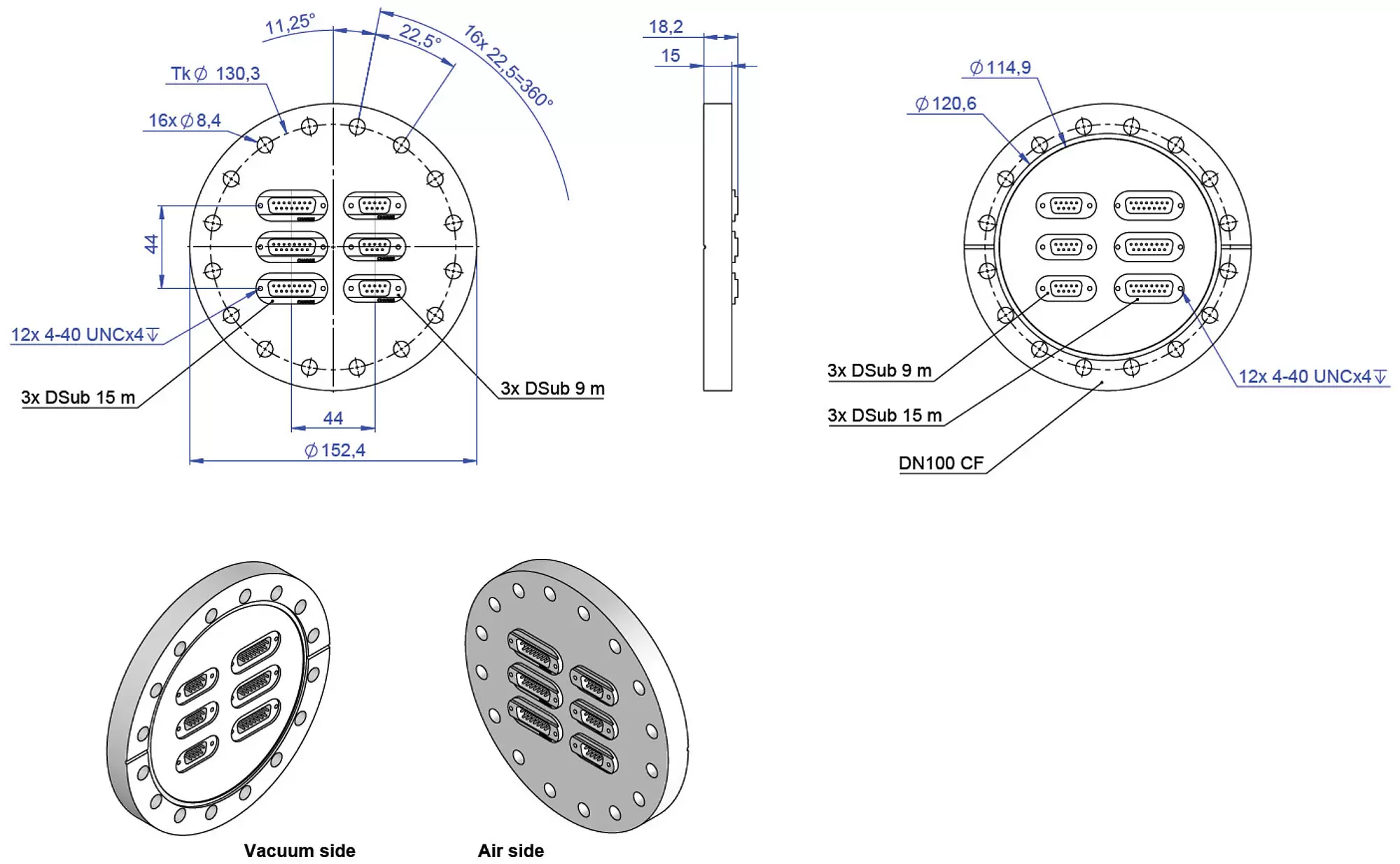

C-815.VFU33, dimensions in mm
C-815.VFU33, dimensions in mm

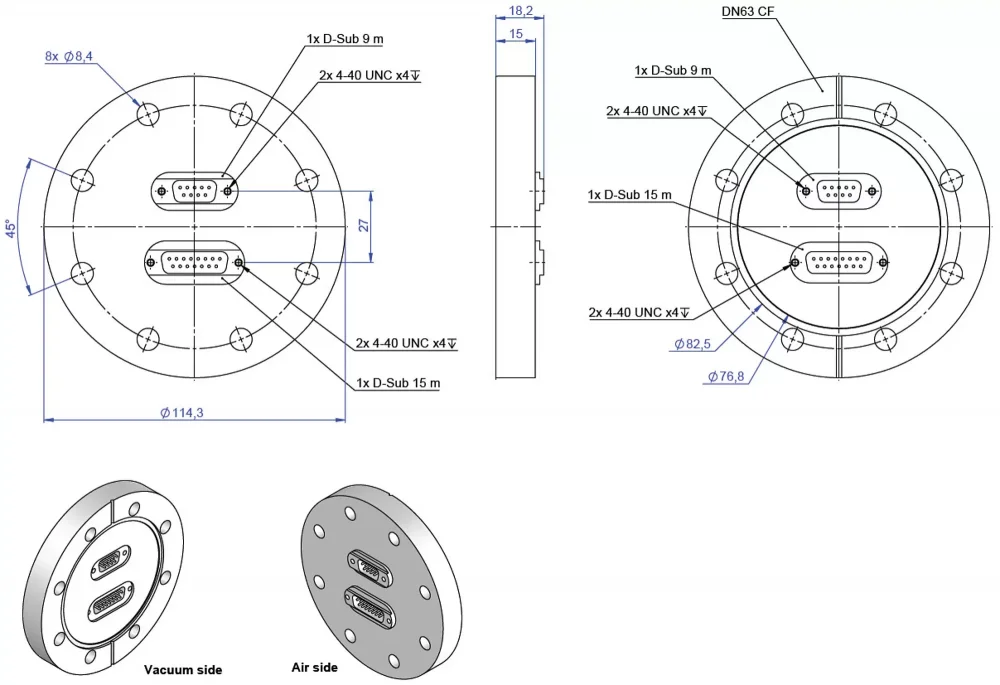

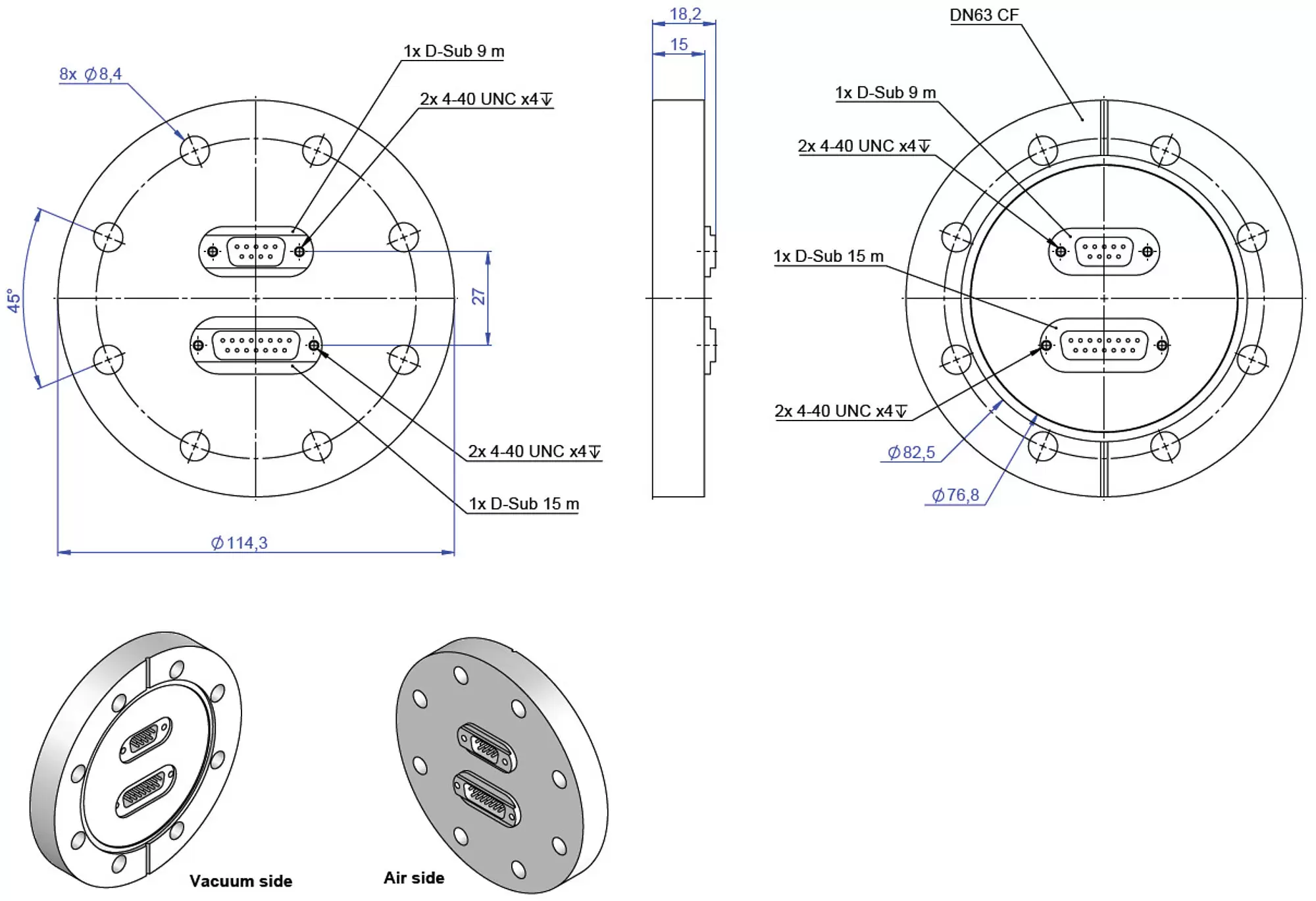

C-815.VFU11, dimensions in mm
C-815.VFU11, dimensions in mm

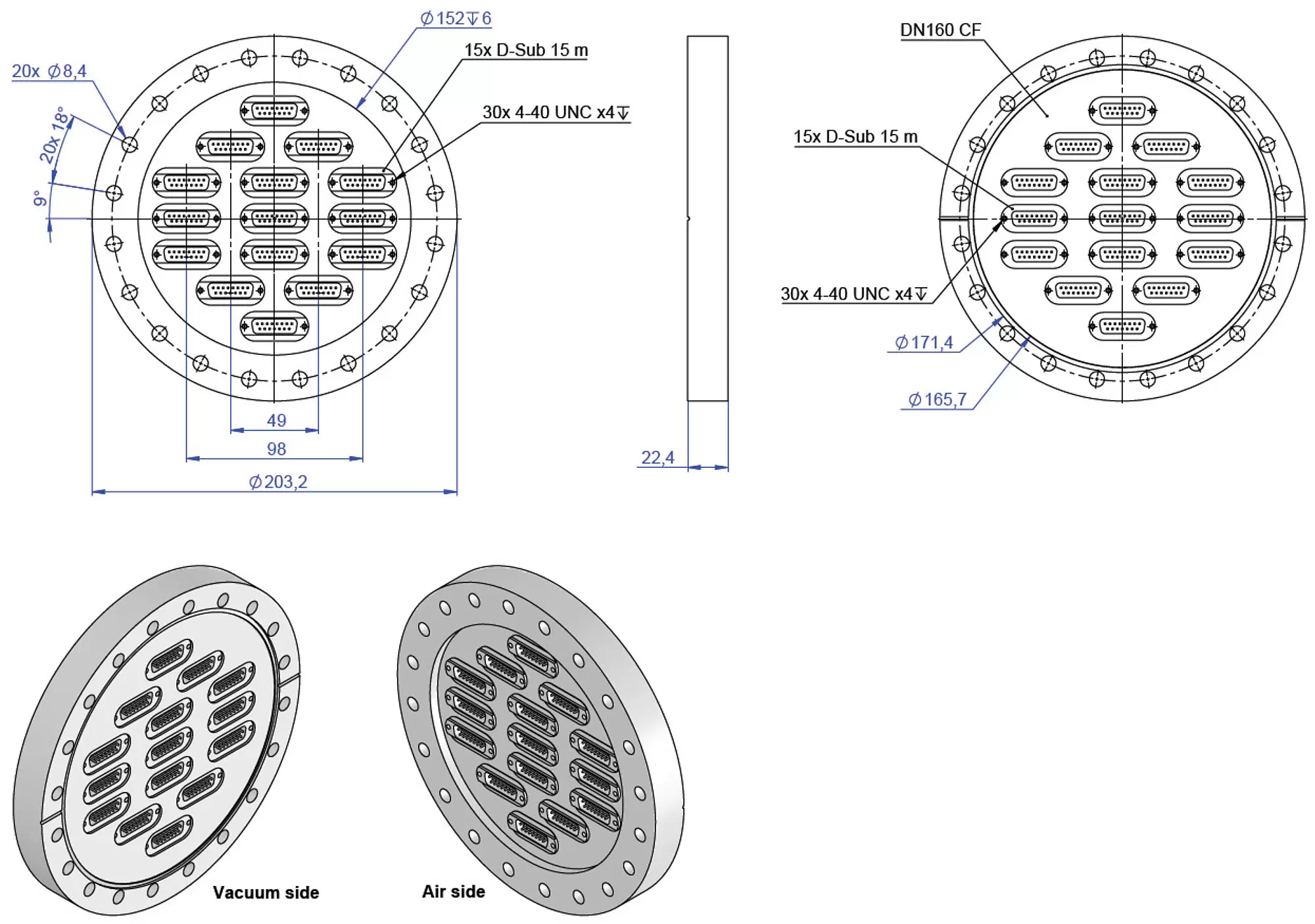

C-815.VFU15, dimensions in mm
C-815.VFU15, dimensions in mm

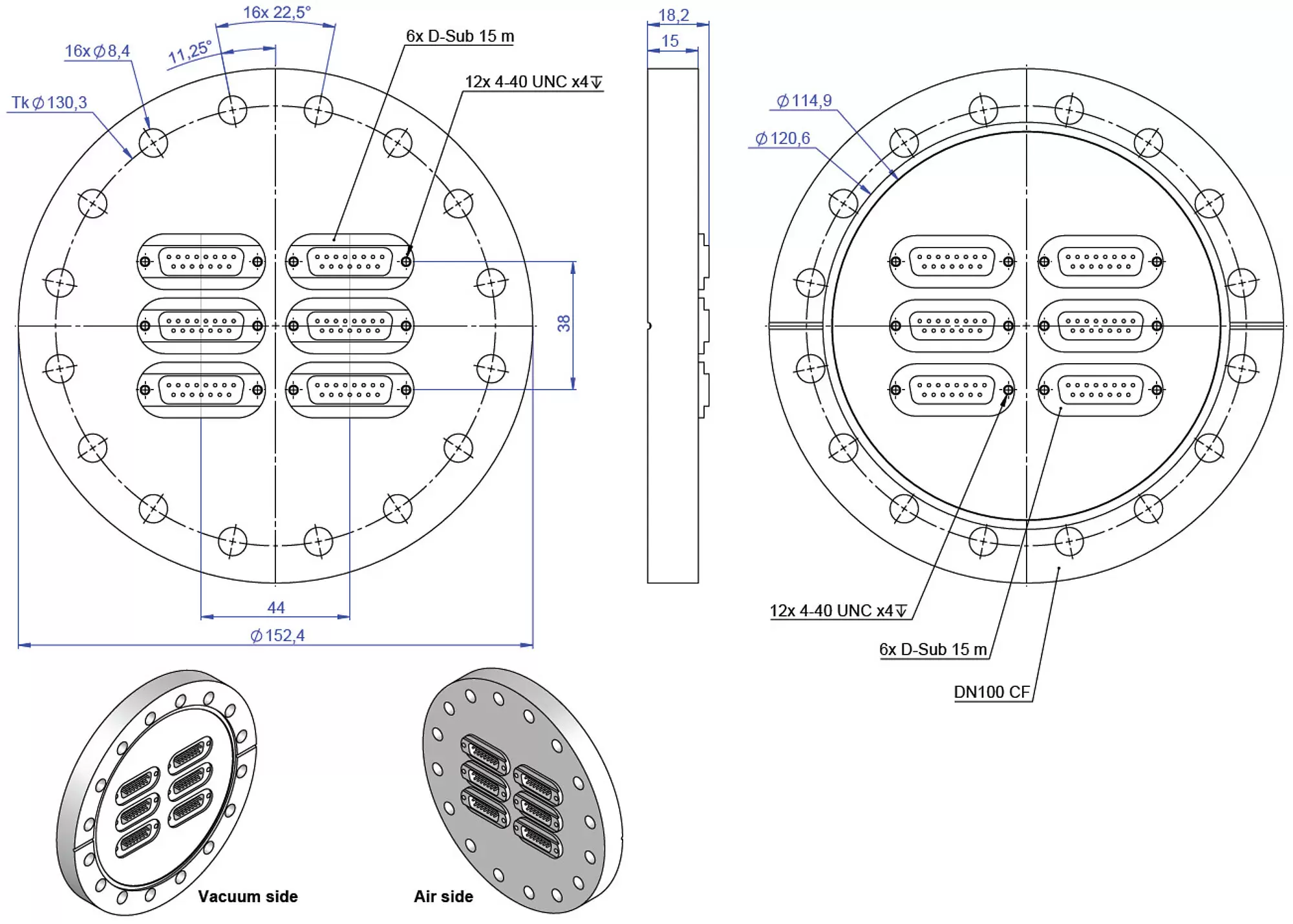

C-815.VFU6, dimensions in mm
C-815.VFU6, dimensions in mm

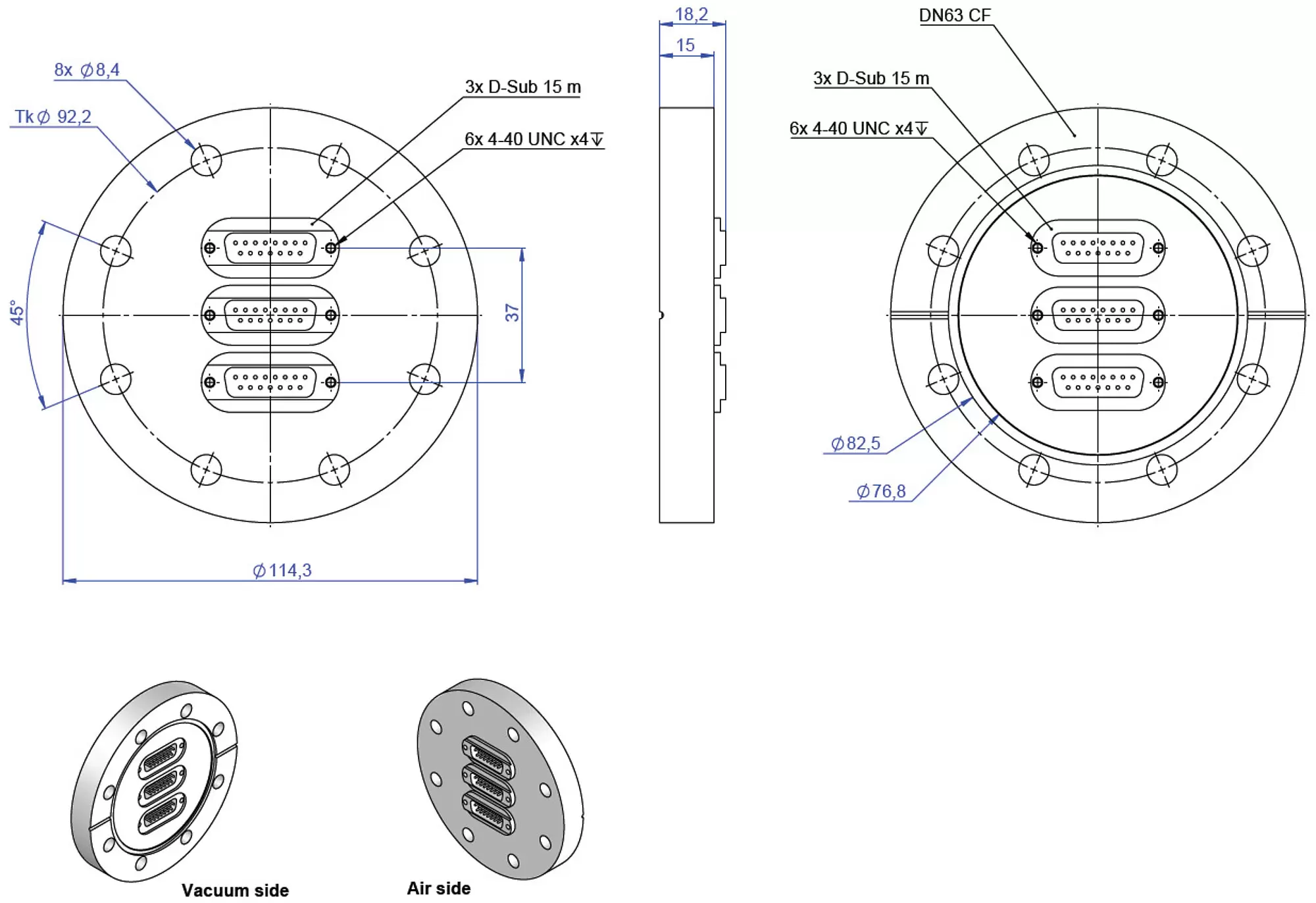

C-815.VFU3, dimensions in mm
C-815.VFU3, dimensions in mm

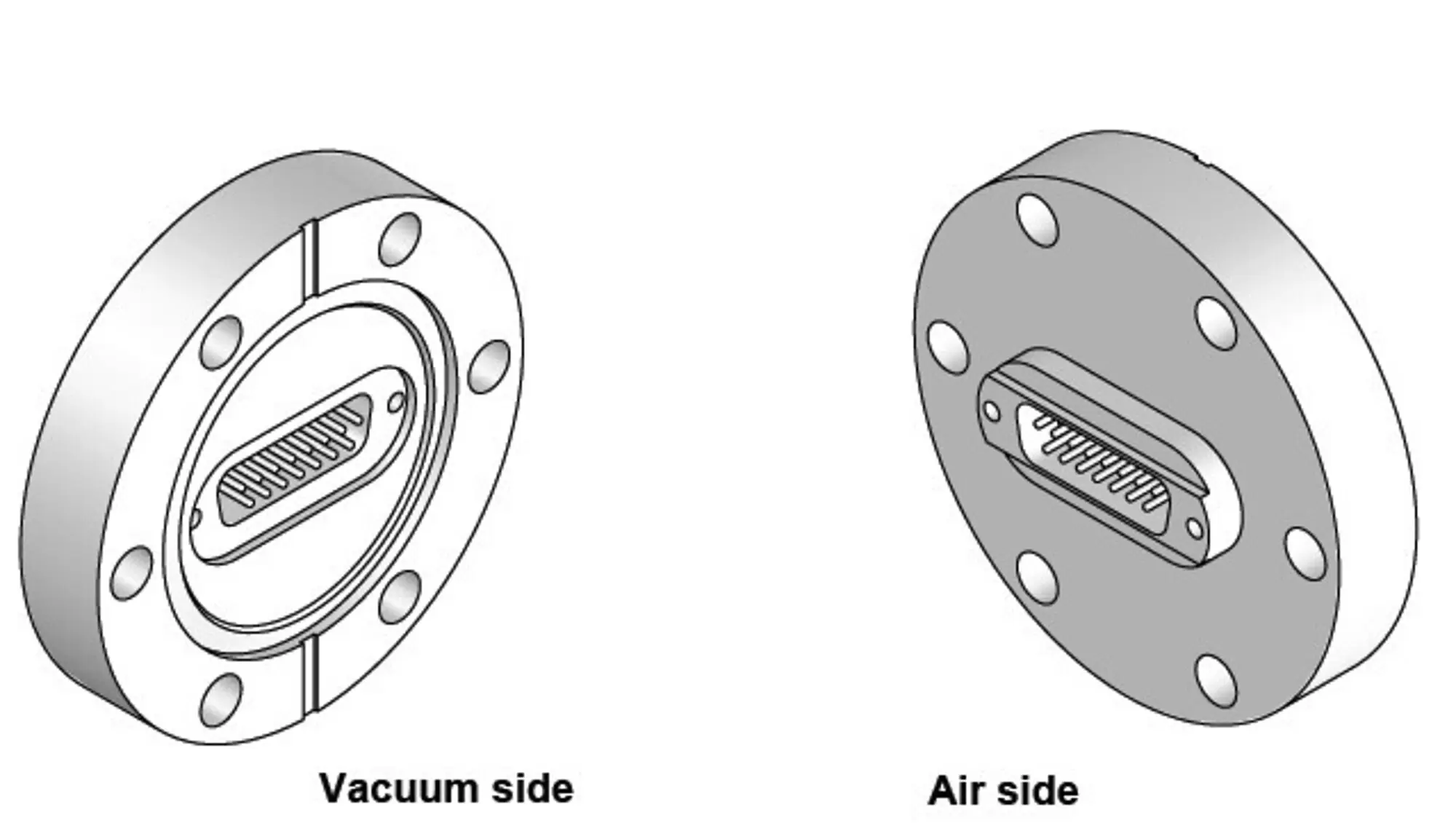

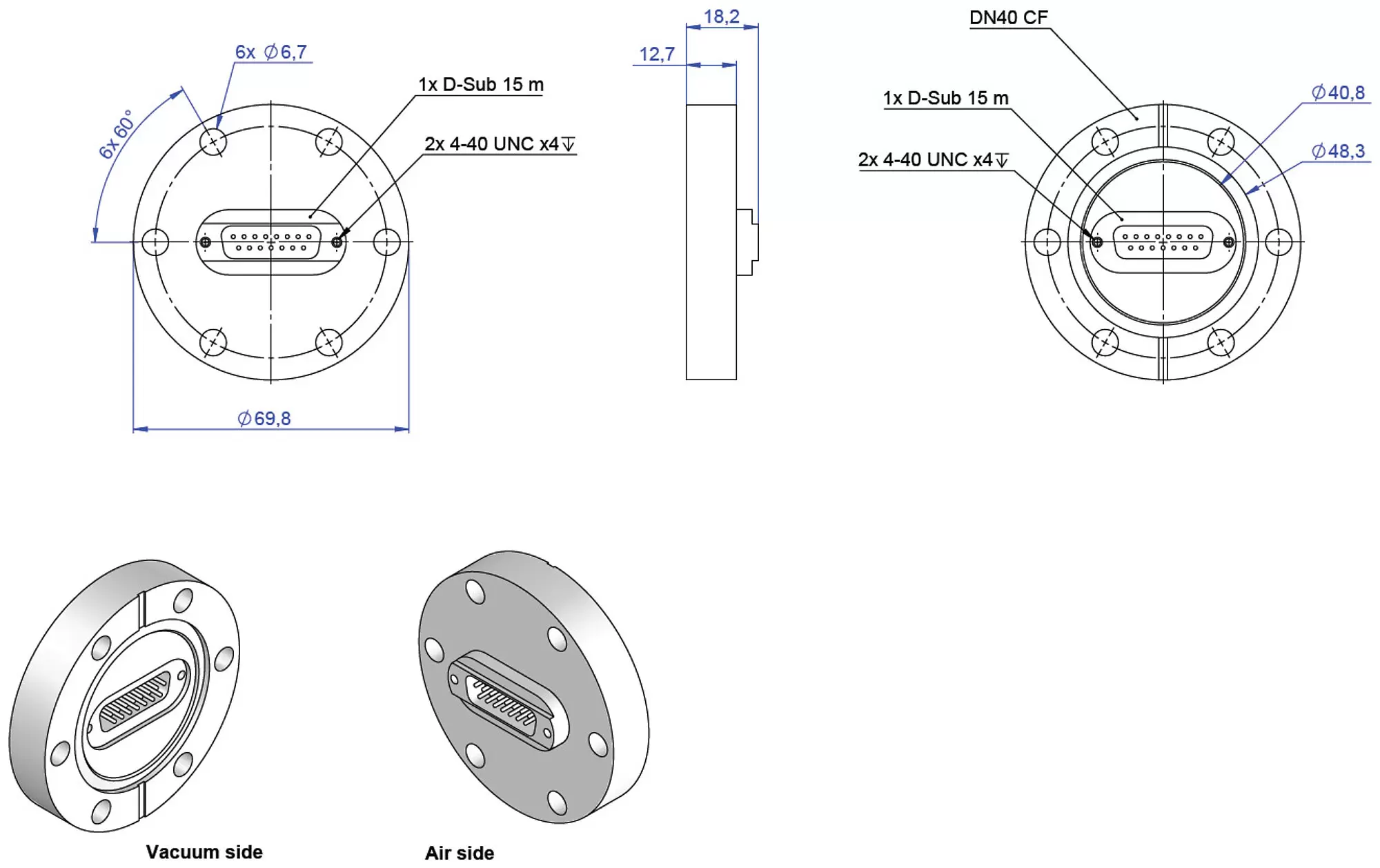

C-815.VFU1, dimensions in mm
C-815.VFU1, dimensions in mm

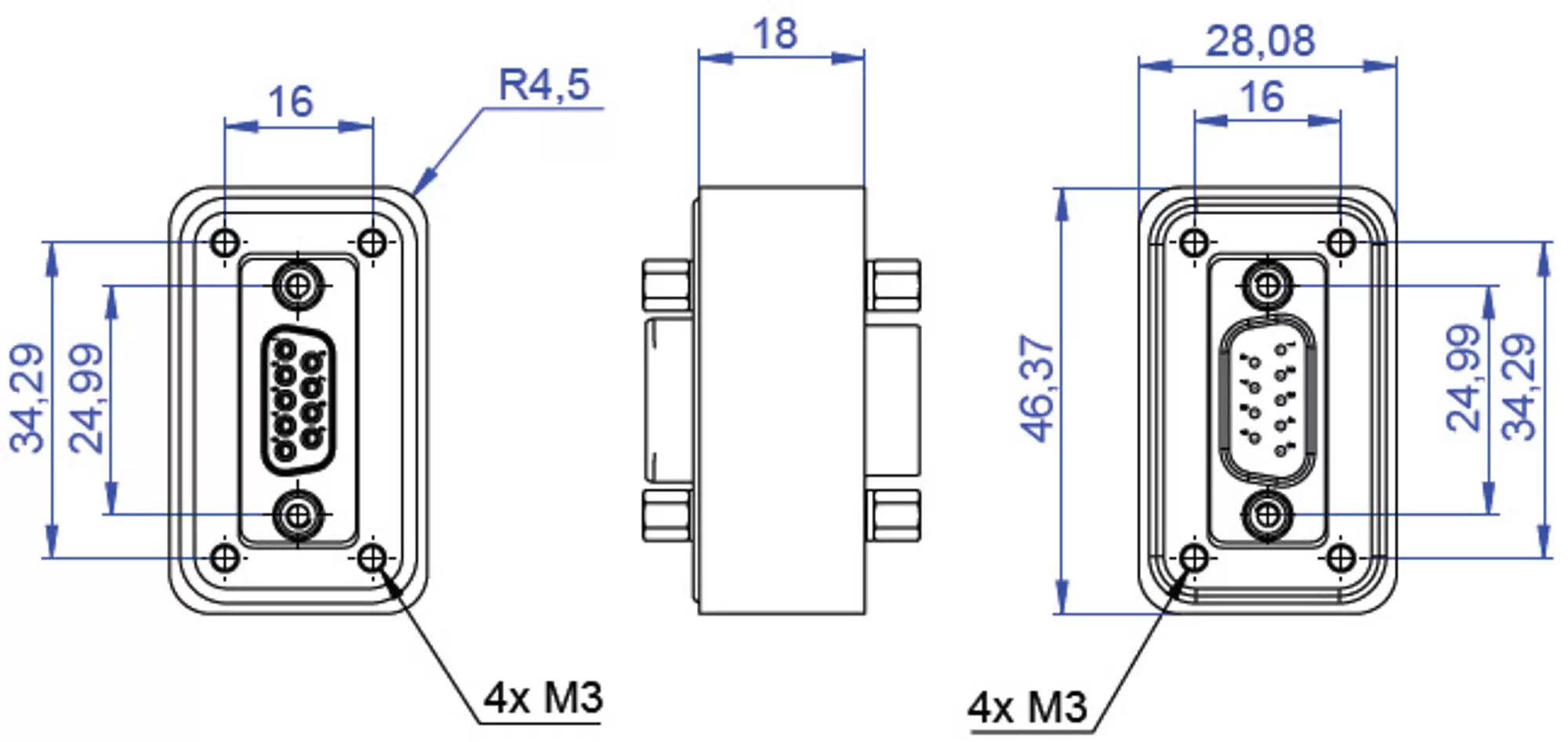

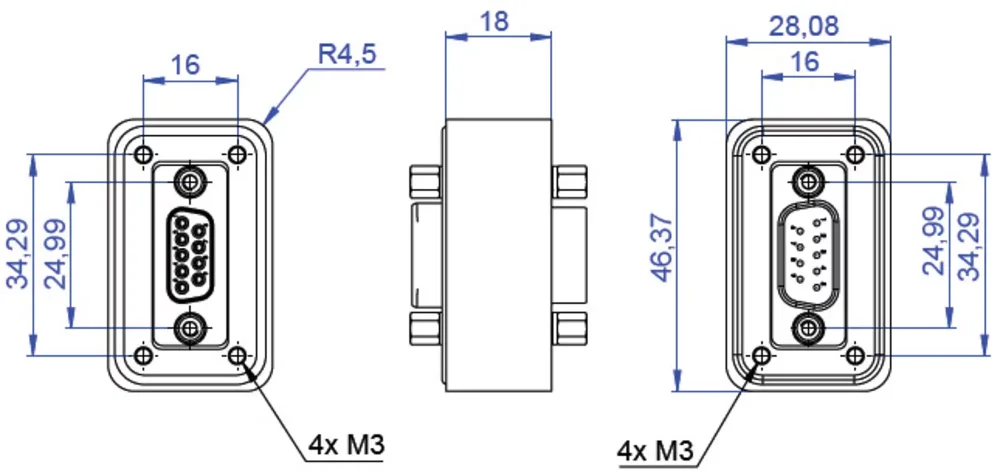

C-815.VF9, dimensions in mm
C-815.VF9, dimensions in mm

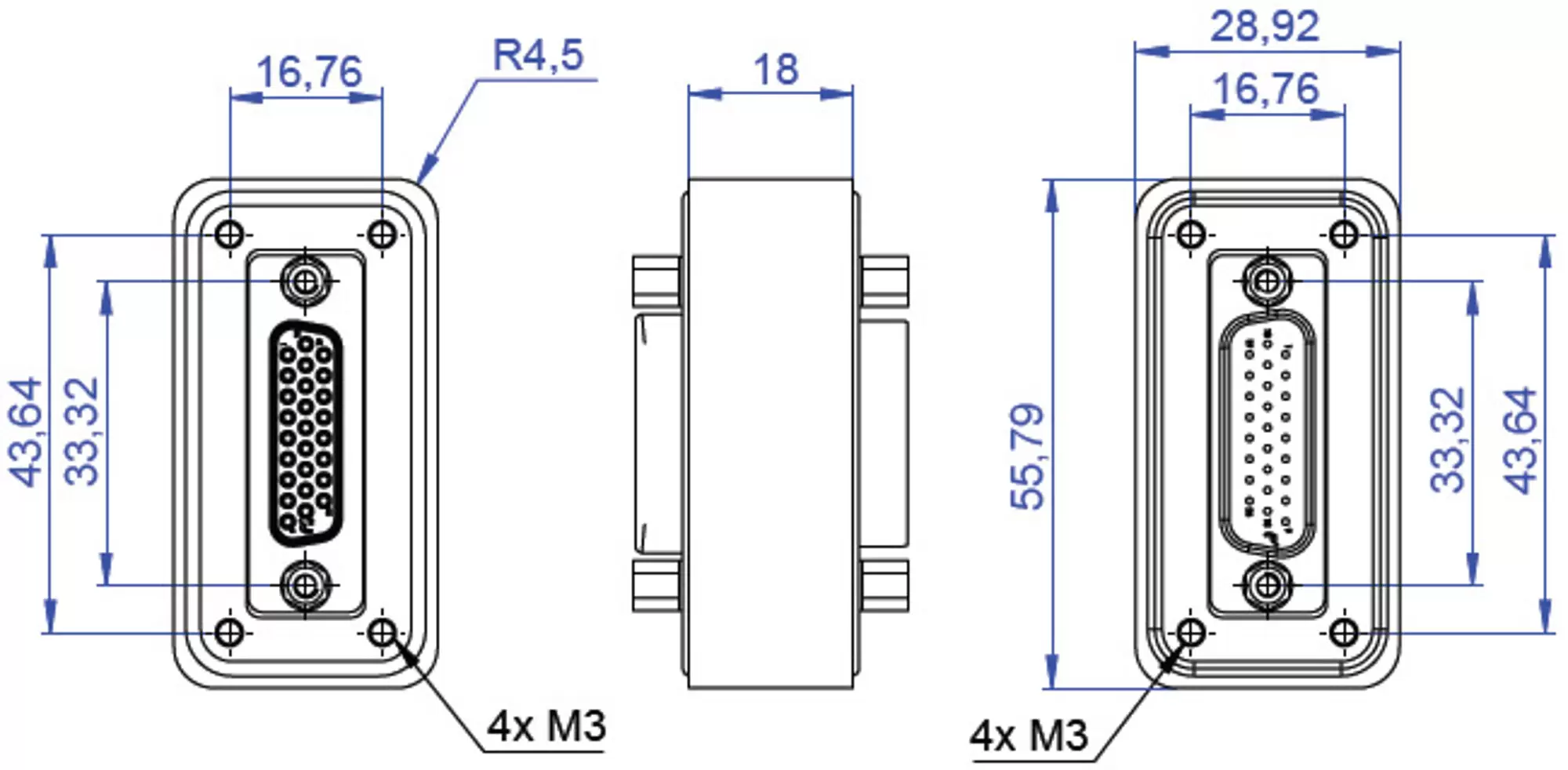

C-815.VF26, dimensions in mm
C-815.VF26, dimensions in mm

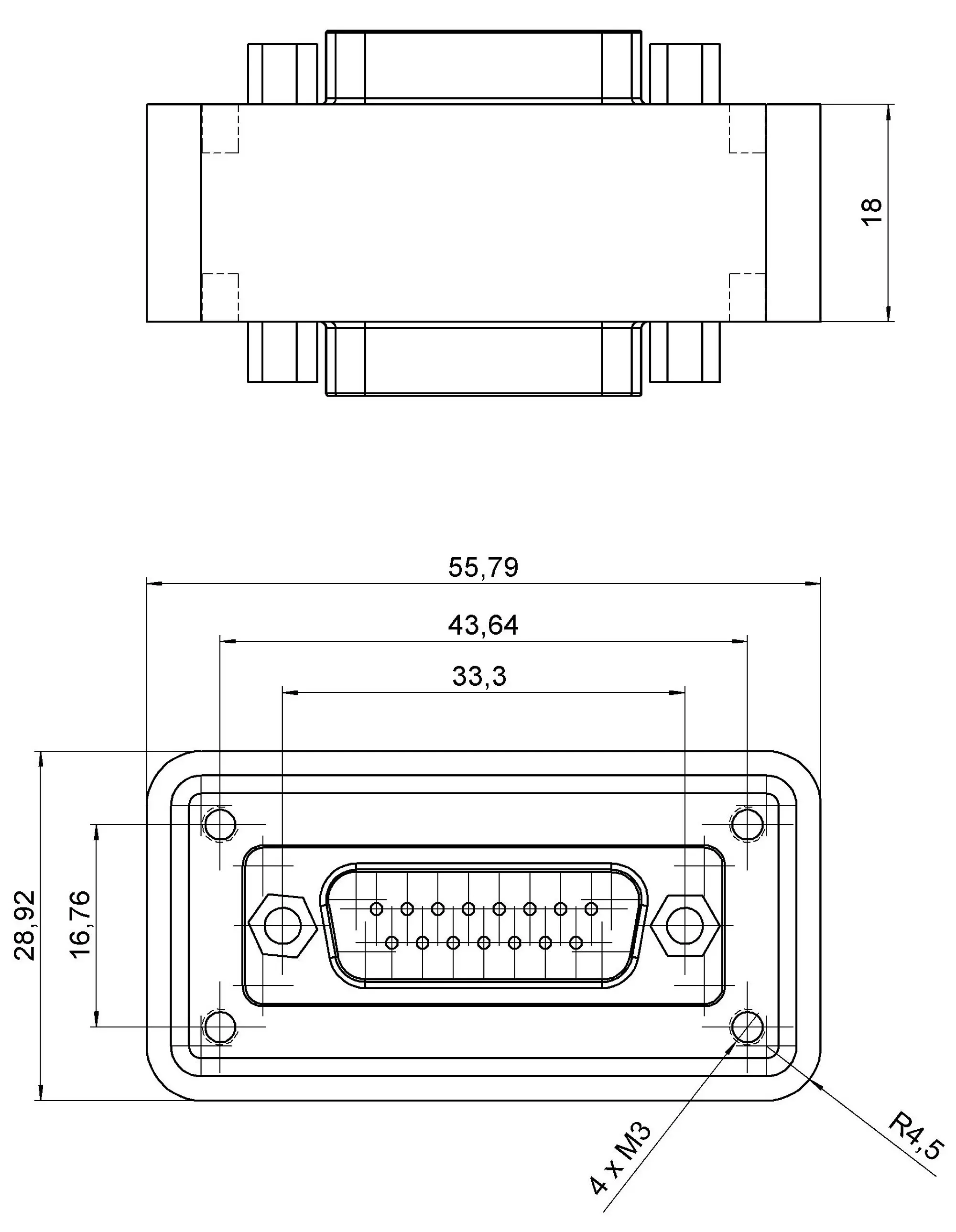

C-815.VF, dimensions in mm
C-815.VF, dimensions in mm

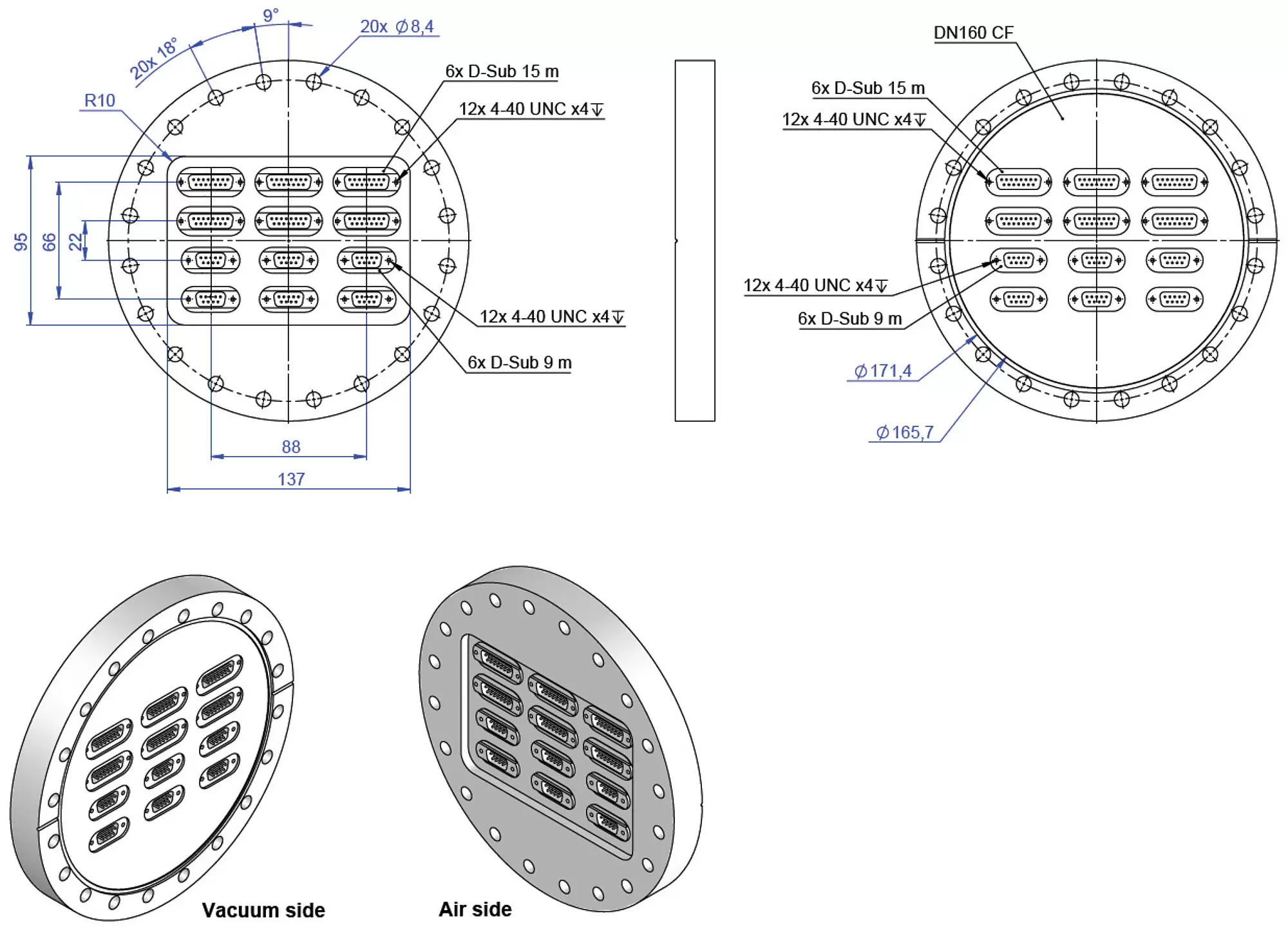

C-815.VFU66, dimensions in mm
C-815.VFU66, dimensions in mm
Ürün BilgileriBilgilerÖzelliklerİndirmelerTaklif İste

Connection of standard controllers to vacuum applications

Vacuum feedthroughs are the interface between the positioner within the vacuum enclosure and the controller on the air side. With their help, vacuum applications can be connected to standard controllers. Vacuum feedthroughs are available for a variety of connectors and for a different number of cables. The cables are not part of the scope of delivery for the feedthroughs.

Characteristics

V6 feedthroughs

V7 and V9 feedthroughs

Unit

Seal

Fluoroelastomer

Glass ceramics

Flange

Aluminum alloy, gold iridite

Stainless steel 316L

Test voltage

1000

500

V

Max. current per pin

5

5

A

Temperature range

-40 to 125

-200 to 300

°C

Leak rate

< 5 × 10-9

< 5 × 10-10

mbar l/s He

Total mass loss (TML)

< 1

%

Collected volatile condensable materials (CVCM)

< 0.1

%

Veri Sayfası
Veri Sayfası
Datasheet C-815.VFxx
Versiyon / Tarih
2019-12-17
pdf - 2 MB
İndir
C-815.VF
Vacuum feedthrough, D-sub 15 (m/f), suitable for high vacuum (to 10-6 hPa)
Teklif Listesine Ekle Teklif Listesinden Çıkar
C-815.VF26
Vacuum feedthrough, HD D-sub 26 (m/f), suitable for high vacuum (to 10-6 hPa)
Teklif Listesine Ekle Teklif Listesinden Çıkar
C-815.VF9
Vacuum feedthrough, D-sub 9 (m/f), suitable for high vacuum (to 10-6 hPa)
Teklif Listesine Ekle Teklif Listesinden Çıkar
C-815.VFU1
Vacuum feedthrough, CF40 flange, 1 × D-sub 15 (m/m), suitable for high vacuum (to 10-7 hPa) and ultrahigh vacuum (to 10-9 hPa)
Teklif Listesine Ekle Teklif Listesinden Çıkar
C-815.VFU3
Vacuum feedthrough, CF63 flange, 3 × D-sub 15 (m/m), suitable for high vacuum (to 10-7 hPa) and ultrahigh vacuum (to 10-9 hPa)
Teklif Listesine Ekle Teklif Listesinden Çıkar
C-815.VFU6
Vacuum feedthrough, CF100 flange, 6 × D-sub 15 (m/m), suitable for high vacuum (to 10-7 hPa) and ultrahigh vacuum (to 10-9 hPa)
Teklif Listesine Ekle Teklif Listesinden Çıkar
C-815.VFU15
Vacuum feedthrough, CF160 flange, 15 × D-sub 15 (m/m), suitable for high vacuum (to 10-7 hPa) and ultrahigh vacuum (to 10-9 hPa)
Teklif Listesine Ekle Teklif Listesinden Çıkar
C-815.VFU11
Vacuum feedthrough, CF63 flange, 1 × D-sub 9 (m/m) und 1 × D-sub 15 (m/m), suitable for high vacuum (to 10-7 hPa) and ultrahigh vacuum (to 10-9 hPa)
Teklif Listesine Ekle Teklif Listesinden Çıkar
C-815.VFU33
Vacuum feedthrough, CF100 flange, 3 × D-sub 9 (m/m) und 3 × D-sub 15 (m/m), suitable for high vacuum (to 10-7 hPa) and ultrahigh vacuum (to 10-9 hPa)
Teklif Listesine Ekle Teklif Listesinden Çıkar
C-815.VFU66
Vacuum feedthrough, CF160 flange, 6 × D-sub 9 (m/m) und 6 × D-sub 15 (m/m), suitable for high vacuum (to 10-7 hPa) and ultrahigh vacuum (to 10-9 hPa)
Teklif Listesine Ekle Teklif Listesinden Çıkar
İlgili Ürünler
RS-40 V7 Compact Rotation Stage Suitable for Vacuum Precision Positioning
M-110 • M-111 • M-112 V6 Vacuum-Compatible Compact Linear Stage XY(Z) Combinations with DC Gear Motor, Various Travel Range Variants
6230V66000 VT-80 V6 Linear Stage Suitable for Vacuum Basic Version for Universal Fields of Use
L-611 rotation stage with 2-phase stepper motor L-611 V6 • V7 • V9 Precision Rotation Stage Suitable for Vacuum High Travel Accuracy
L-509 V6 • V7 • V9 Vacuum-Compatible Precision Linear Stage Compact Design, for Loads to 10 kg
L-310 V6 Precision Z Stage Suitable for Vacuum Can be Compactly Combined with Linear and Rotation Stages
P-891.VA • P-892.VA Vacuum Feedthrough Accessories for Vacuum-Compatible Piezo Positioners
