L-220 V6 High-Resolution Linear Actuator Suitable for Vacuum

Suitable for High Cycle Numbers

Suitable for vacuum up to 10^-6 hPa
Forces to 125 N
26 mm (1") travel range
Stepper motor

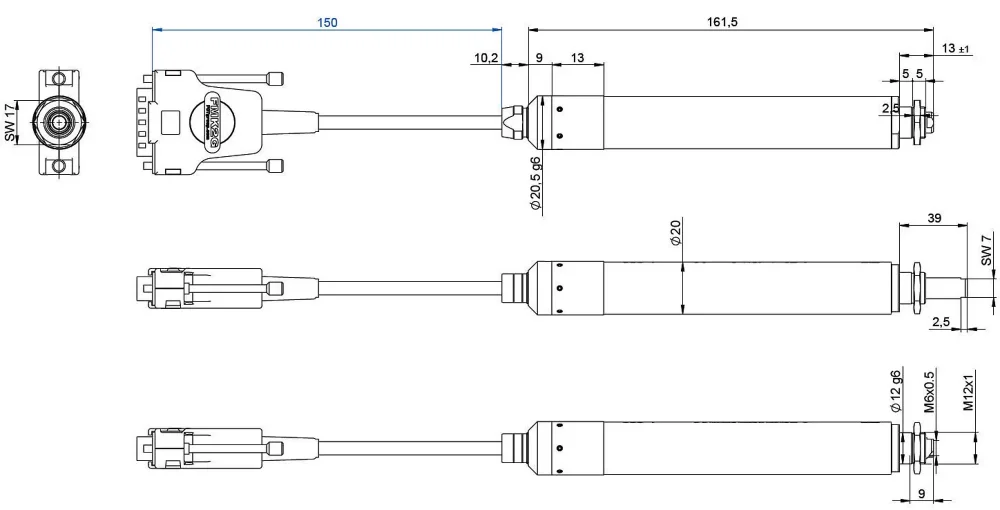

L-220.02A200V6, dimensions in mm

Ürün Bilgileri Bilgiler Özellikler İndirmeler Taklif İste

Reference-class linear drive

Combines high precision, high forces, and high dynamics. High-performance and low-vibration 2-phase stepper motor with gear ratio allows precise positioning even without position sensor.

High-quality components

Ball screw for smooth feed. Nonrotating tip for uniform motion prevents wobble, torque, and wear at the point of contact. Incl. flat and spherical tip for decoupling forces. Noncontact limit switches protect the mechanics. A direction-sensing reference switch supports automation applications.

Reduced outgassing especially for use in vacuum environments

Most notably, for the lubrication of the guides and the drive screw a material with particularly low outgassing is used. This allows a bakeout temperature of up to 80° C. With this and other modifications of the PI V6 vacuum class, this positioner can be used up to 10^-6hPa.

Application fields

Vacuum chambers. Research. Beamline instrumentation. Microscopy. Electronics assembly and inspection.

Motion	L-220.02A200V6	Tolerance
Active axes	X
Travel range in X	26 mm
Maximum velocity in X, unloaded	0.8 mm/s
Positioning	L-220.02A200V6	Tolerance
Unidirectional repeatability in X	0.5 µm	typ.
Bidirectional repeatability in X	± 1 µm	typ.
Minimum incremental motion in X	0.1 µm	typ.
Reference switch	Hall effect, N/C contact, 5 V, NPN
Limit switches	Hall effect, N/C contact, 5 V, NPN
Drive Properties	L-220.02A200V6	Tolerance
Drive type	2-phase stepper motor with gearhead
Motor resolution	24 Full steps/rev.
Nominal voltage	3.5 V
Nominal current, RMS	0.25 A	typ.
Drive force in negative direction of motion in X	125 N	typ.
Drive force in positive direction of motion in X	125 N	typ.
Resistance phase-phase	12.5 Ω	typ.
Inductance phase-phase	6.3 mH
Back EMF, phase-phase, rotational	11 V/kRPM	max.
Mechanical Properties	L-220.02A200V6	Tolerance
Drive screw type	Ball screw
Drive screw pitch	1 mm
Gear ratio i	387283 : 5103
Holding force in X, passive	125 N
Moved mass in X, unloaded	20 g
Permissible push force in Y	1 N	max.
Overall mass	200 g
Material	Stainless steel, bronze
Miscellaneous	L-220.02A200V6	Tolerance
Connector	HD D-sub 26-pin (m)
Vacuum class	10⁻⁶ hPa
Recommended controllers / drivers	C-663.12 C-885 with C-663.12C885 ACS modular controller
Cable length	0.15 m
Operating temperature range	5 to 40 °C

Note on motor resolution: Resolution of the motor / drive unit: 1821
Note on cable length: Fixed cable (firmly attached to the product), vacuum side

3D Modeller

3-D model L-220.02A200V6

Versiyon / Tarih

2020-04-24
,zip - 2 MB,

Listeye Ekle Listeden Çıkar

Veri Sayfası

Datasheet L-220 V

Versiyon / Tarih

2022-10-28
pdf - 732 KB

İndir

Dokümantasyon

User Manual L220T0020

L-220.02A200V6 Precision linear actuator with stepper drive and gear for vacuum applications (1 E-6 hPa)

Versiyon / Tarih

2022-11-15
,pdf - 300 KB,

Listeye Ekle Listeden Çıkar

L-220.02A200V6

High-resolution linear actuator; 2-phase stepper motor with gearhead; 26 mm travel range; 125 N feed force; 0.8 mm/s maximum velocity; ball screw; limit switches; 0.15 m cable length; vacuum-compatible to 10-6 hPa
