Test and Assembly of Photonic Devices

Fast Multi-Channel Active Alignment

Integrating photonic structures or elements such as waveguides, photodiodes, lasers, and multiplexers presents a variety of demanding challenges to test and assembly processes, starting at wafer level through to final packaging. The common theme: multiple channels, multiple elements, and multiple interacting inputs, as well as outputs, across multiple degrees of freedom, all requiring multiple alignment optimization. Traditionally, this is a time-consuming and expensive task. PI's Multi-Channel Photonics Alignment (FMPA) systems and unique proprietary alignment algorithms, which are built into the controller, automatically enable simultaneous alignment across channels, devices, and degrees of freedom, optimizing overall alignment in one quick step. Subsequently, compared to serial operation, reduction of 99% in time and costs is possible.

Key Features of the Motion Solution

Proven, award-winning active alignment technology
Simultaneous alignment across multiple channels, I/Os, elements, and degrees of freedom
Parallel processing enables 100 times the speed of serial operation
99% reduction of alignment-time costs
Reliable tracking for long-term process steps
Optimization of any figure-of-merit

XYZ/θX/θY/θZ Axis – Submicron Alignment of Optical Components

Parallel-kinematic hexapod for alignment in six degrees of freedom
High stiffness of the mechanical design provides high dynamics and short settling times
Freely-definable center of rotation allows flexible alignment
Position sensors ensure high accuracy and operational reliability
Compact design for space saving integration

XYZ Axis – Nanometer Alignment of Optical Components

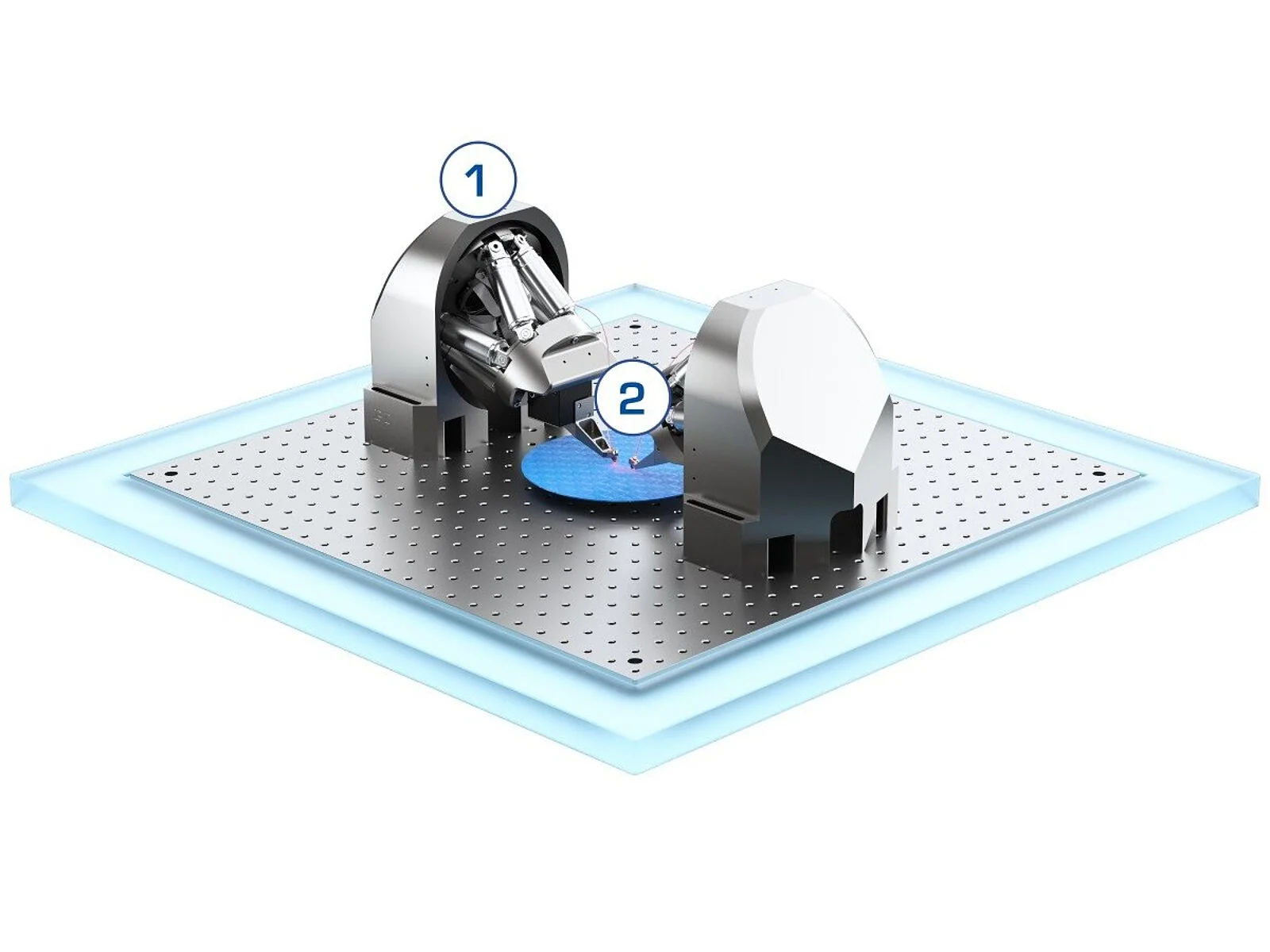

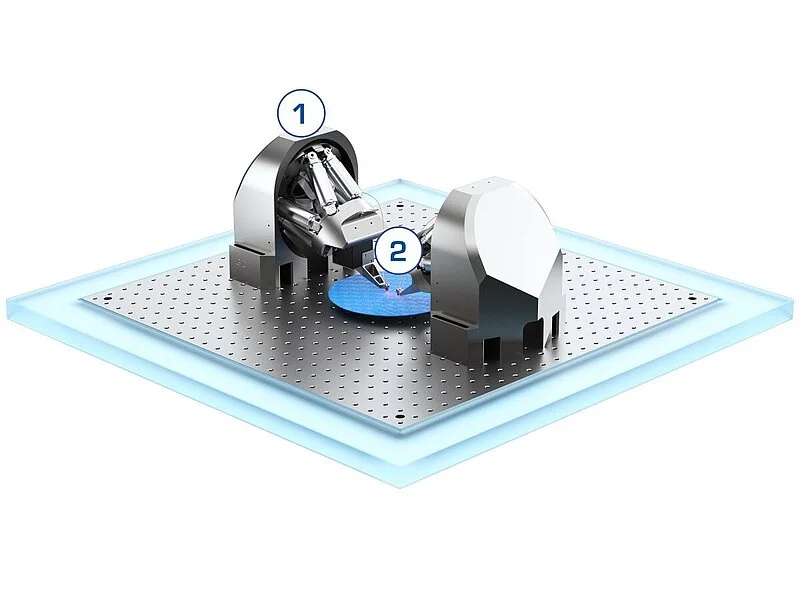

H-811 Hexapod combined with the P-616 NanoCube® Nanopositioner for Parallel-kinematic motion in three degrees of freedom
Parallel-kinematic piezo system for high stiffness in all spatial orientations
Mechanical design provides scanning frequencies of up to 100 Hz, as well as fast tracking
Zero-play flexure guides for high guiding accuracy without any wear or particle generation
Integrated sensors offer excellent linearity of motion and long-term stability
Piezo actuators with all-ceramic insulation for an outstanding lifetime

User-Friendly and Fast Automation Control

EtherCAT® interfaces for fast integration into high-throughput industrial systems
High-performance industrial controllers automate built-in scans and optimizations in parallel with millisecond responsiveness
Proprietary firmware enables fast alignment based on fast area-scanning algorithms for first light detection and gradient search for peak coupling
Software support for common operating systems, as well as for many common programming languages including: MATLAB , Python, C# and NI LabVIEW
Quick start-up and ease-of-use thanks to PIMicroMove software
