Products PI - Miniature Stages Miniature Rotation Stages

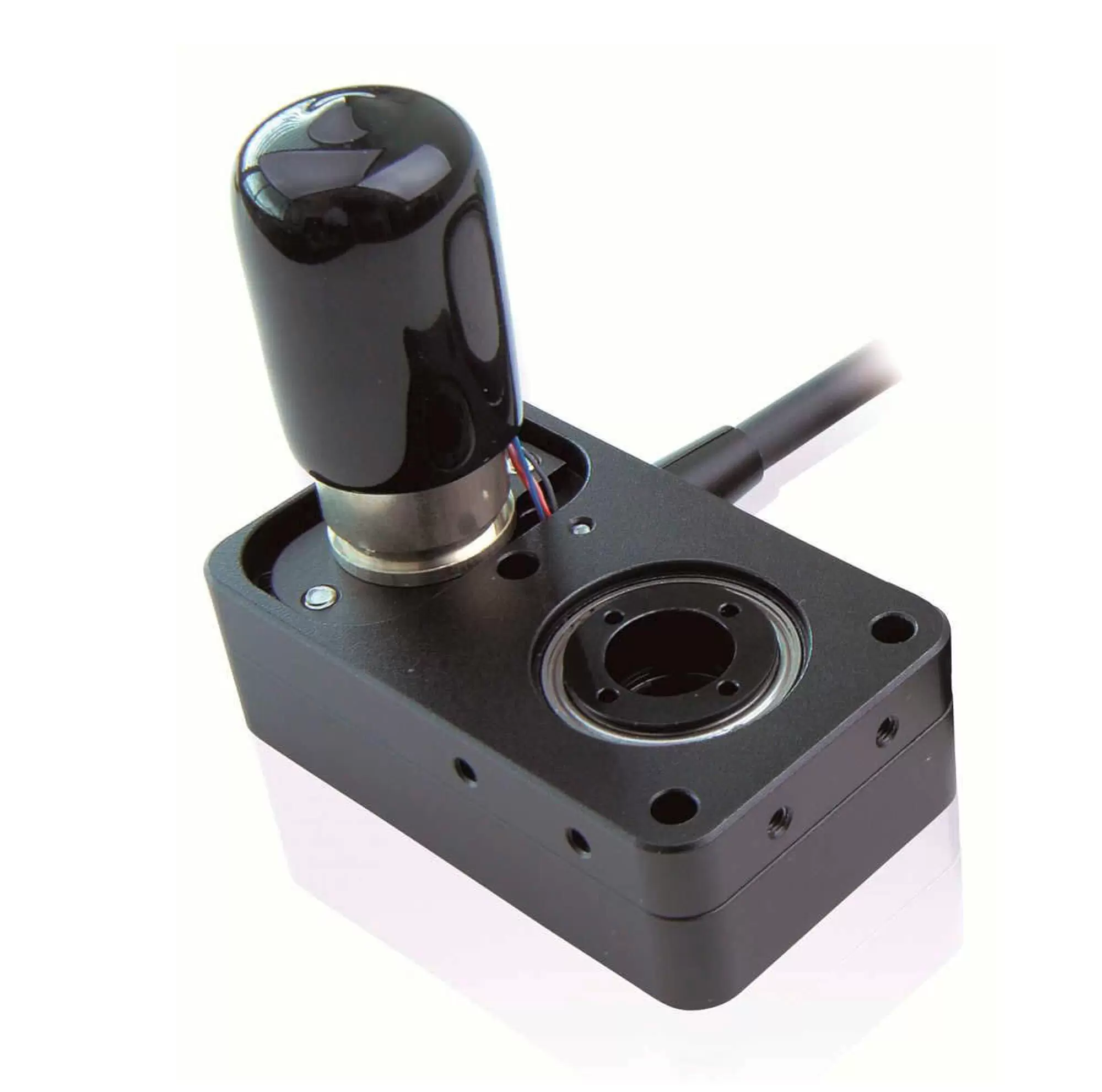

DT-34 Miniature Rotation Stage
Compact Dimensions, with DC or Stepper Motor
  • Clear aperture, 10 mm Ø
  • Compact design
  • Unidirectional repeatability up to 350 µrad
  • Angular velocity up to 675 °/s
  • Integrated optical reference switch

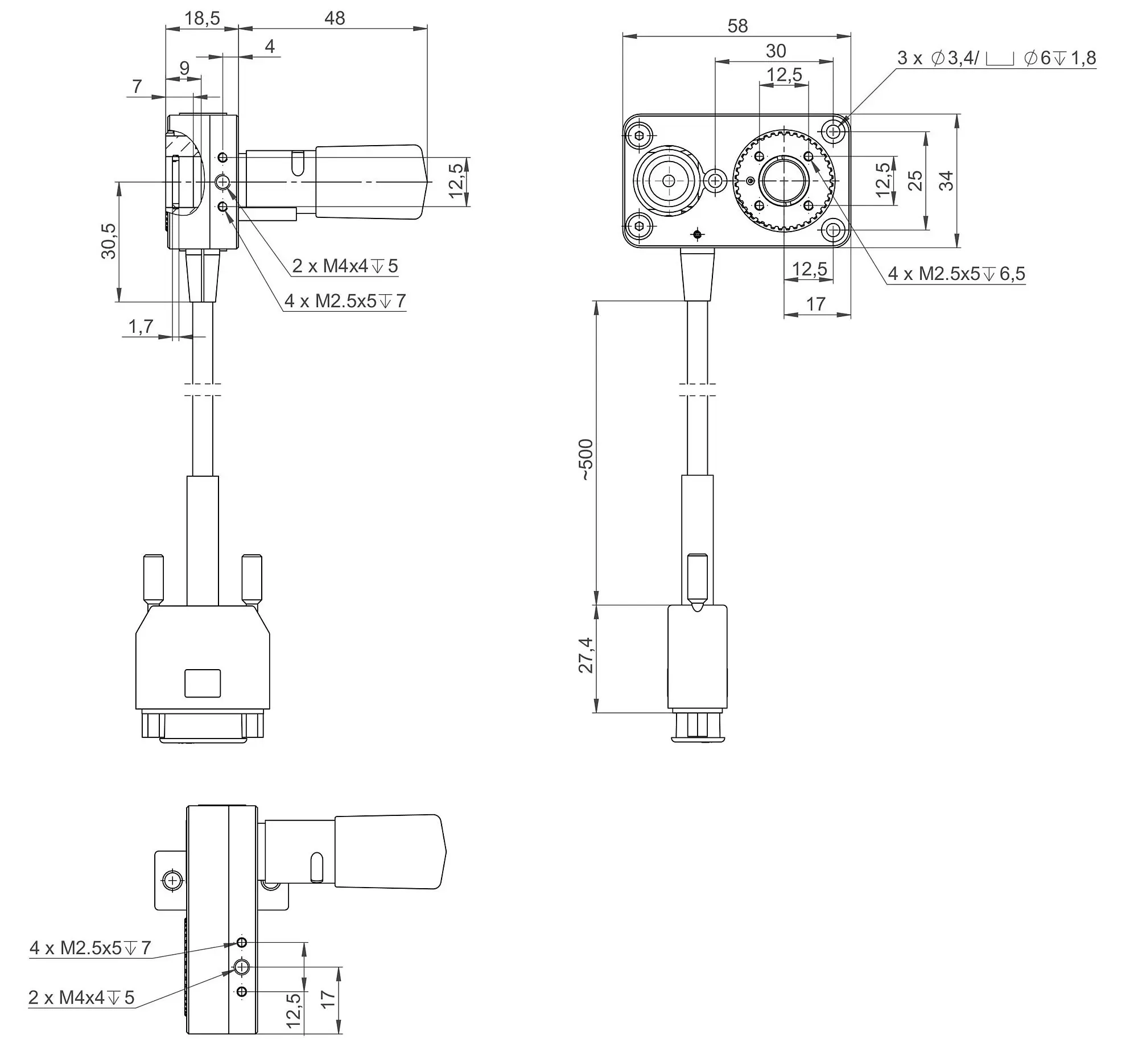

DT-34 with stepper motor, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.
DT-34 with stepper motor, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

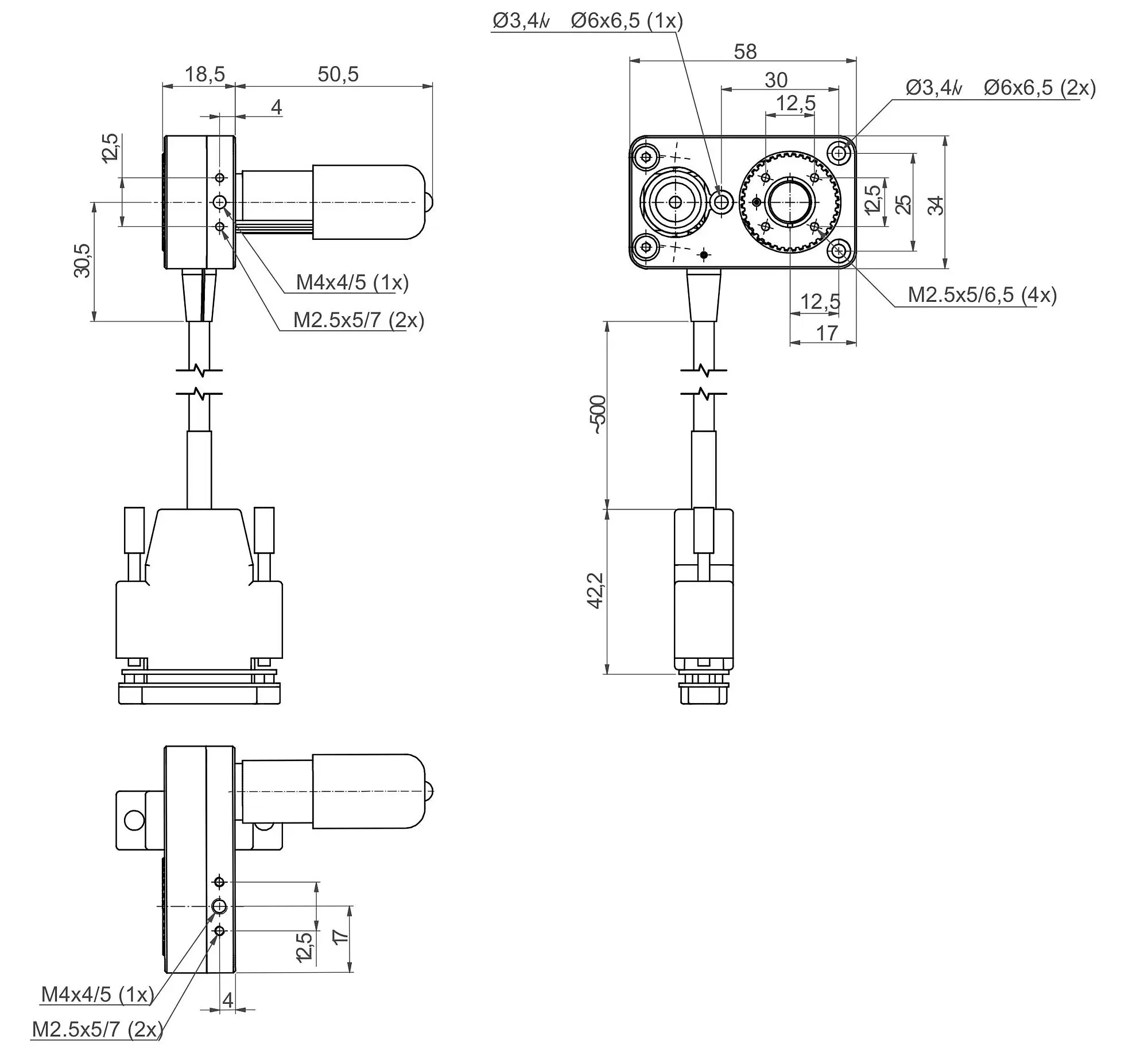

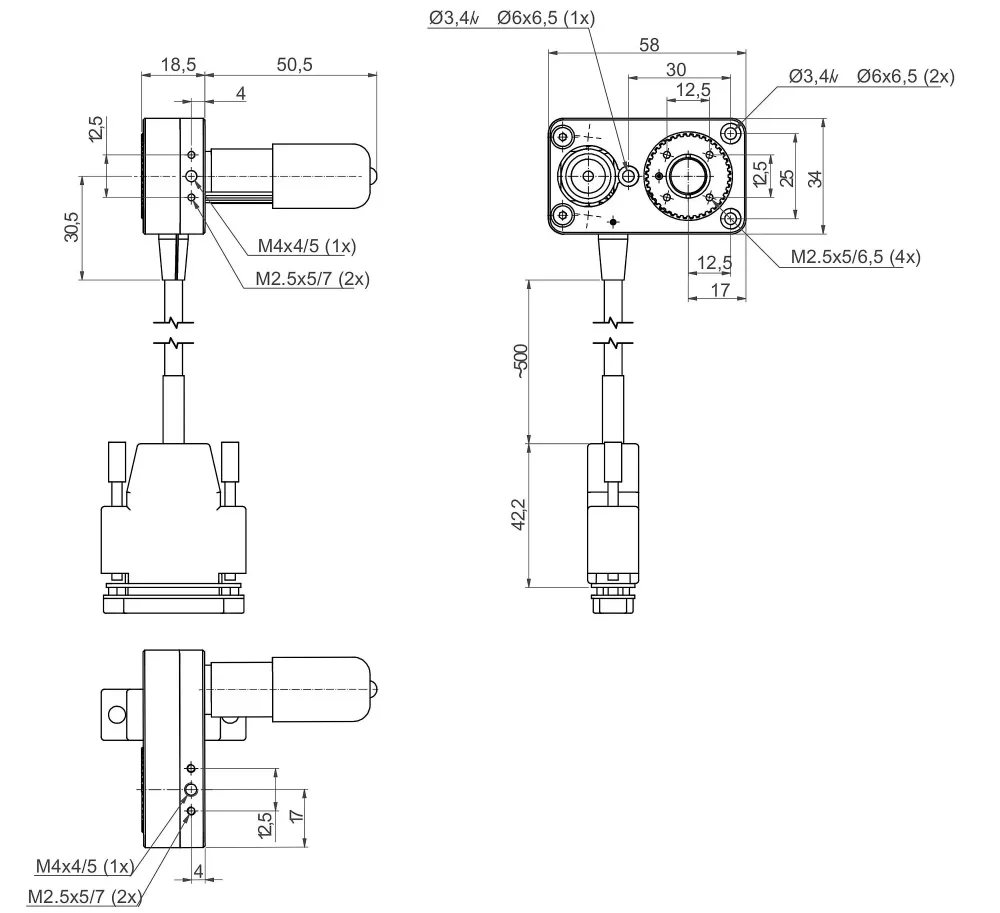

DT-34 with DC motor, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.
DT-34 with DC motor, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.
Product DescriptionDescriptionDownloadsQuote/Order

Overview

Inexpensive compact rotation stage with clear aperture. Available with stepper motor or DC motor.

Position measuring

  • Optical reference switch.
  • DC motor version with incremental rotary encoder on the motor shaft.
3D Models
3D Models
DT-34 3-D model
Version / Date

zip - 636 KB
Add to List Remove from List
Datasheet
Datasheet
Datasheet DT-34
Version / Date
2023-01-30
pdf - 571 KB
Download
Documentation
Documentation
Short Instructions MP146EK
Positioners with Electric Motors: DT-xx / HPS-170 / L-xxx / LS-xxx / MTS-65 / PRS-xxx / RS-40 / UPL-120 / VT-80 / WT-xx / WT-xxx
Version / Date
2.0.0 01/2020
,,,,,pdf - 736 KB,,,,,
Download
Documentation
PI miCos Motors & Encoders: DC-Brush Motors
Technical Data of DC-Brush Motors
Version / Date

pdf - 78 KB
Download
Documentation
PI miCos Motors & Encoders: Stepper Motors
Technical Data of 2-Phase Stepper
Version / Date

pdf - 58 KB
Download
Documentation
User Manual DT-34
DT-34 Precision Rotation Stage
Version / Date
2019-06-28
pdf - 490 KB
Add to List Remove from List
3215910030
Miniature rotation stage; DC motor; 360 ° rotational angle; 15 N load capacity; 675 °/s maximum angular velocity; incremental rotary encoder, 2048 cts./rev. sensor resolution
Add to Quote List Remove from Quote List
3215920030-0000
Miniature rotation stage; 2-phase stepper motor; 360 ° rotational angle; 15 N load capacity; 195 °/s maximum angular velocity
Add to Quote List Remove from Quote List
Related Products
RS-40 Compact Rotation Stage Precision Positioning
DT-80 Compact Rotation Stage Large Clear Aperture
