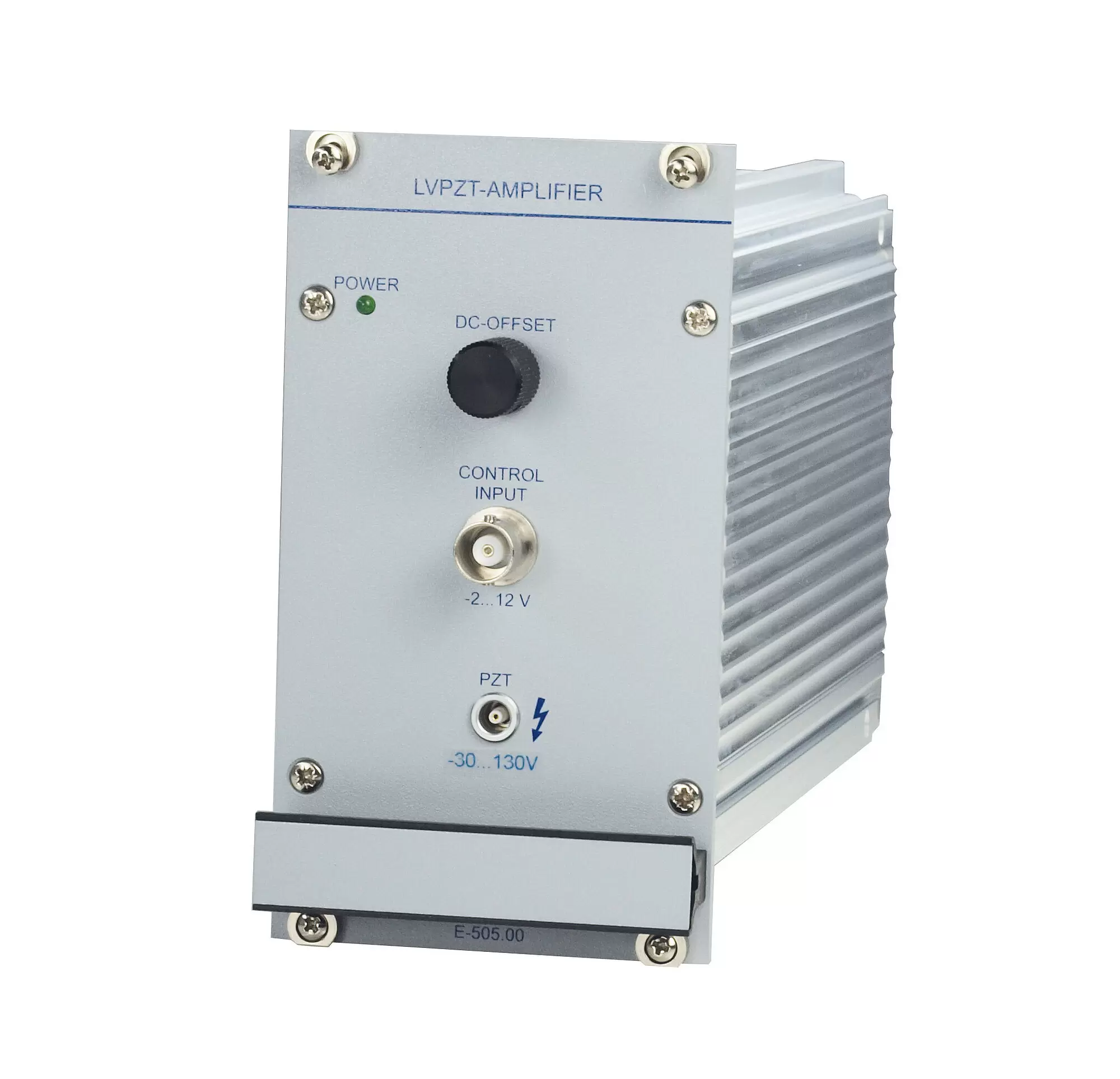

E-505 Piezo Amplifier Module

High Power, E-500 Piezo Controller System

Peak current to 10 A
Output voltage range -30 to 130 V
Module for E-500 piezo controller rack
Position control (optional)
Interface / display modules (optional)

E-505: Operating limits (open loop) with various piezo loads, capacitance values in µF

	E-505.00	E-505.10	E-505.00S
Function	Power amplifier	Power amplifier for switching applications*	Offset voltage source for tip/tilt systems
Channels	1	1	1

Amplifier	E-505.00	E-505.10	E-505.00S
Input voltage range	-2 to +12 V	-2 to +12 V	-
Output voltage	-30 to +130 V	-30 to +130 V	100 V
Peak current	2 A (<3 ms)	10 A (<200 µs)	2 A (<5 ms)
Average output current	215 mA	215 mA	300 mA
Current limitation	Short-circuit proof	Short-circuit proof	Short-circuit proof
Noise, 0 to 100 kHz	<0.6 mVrms	1.0 mVrms	<0.7 mVrms
Voltage gain	10 ±0.1	10 ±0.1	-
Input impedance	1 MΩ / 1 nF	1 MΩ / 1 nF	-

Interfaces and operation	E-505.00	E-505.10	E-505.00S
Piezo connection socket	LEMO ERA.00.250.CTL	LEMO ERA.00.250.CTL	LEMO ERA.00.250.CTL
Analog input	BNC	BNC	-
DC offset setting	10-turn potentiometer, adds 0 to 10 V to the input voltage	10-turn potentiometer, adds 0 to 10 V to the input voltage	-

Miscellaneous	E-505.00	E-505.10	E-505.00S
Operating temperature range	5 to 50 °C	5 to 50 °C	5 to 50 °C
Overheat protection	Deactivation at 85°C	Deactivation at 85°C	Deactivation at 85°C
Dimensions	14 HP / 3 RU	14 HP / 3 RU	14 HP / 3 RU
Mass	0.9 kg	0.9 kg	0.9 kg
Operating voltage	E-500 system	E-500 system	E-500 system
Max. power consumption	55 W	55 W	55 W

* For piezo actuators with special equipment for high currents

Sonderausführungen auf Anfrage.

Datasheet

Datasheet E-505

Version / Date

2020-10-07
pdf - 639 KB

Download

Documentation

User Manual PZ62

E-500 / E-501 Series Modular Piezo Controller: Chassis with power supply, amplifier modules (E-503, E-504, E-505, E-506, E-508), sensor and servo-control module (E-509), display and interface modules (E-515, E-517).

Version / Date

2013-07-11
pdf - 2 MB

Add to List Remove from List

Documentation

Short Instruction PZ300

Housed Analog Piezo Electronics E-4xx, E-5xx, E-6xx, E-8xx

Version / Date

1.1.0 04/2021
pdf - 1 MB

Download

E-505.00

Piezo amplifier module, 2 A, -30 to 130 V, 1 channel

Add to Quote List Remove from Quote List

E-505.10

Piezo amplifier module for switching applications, 10 A, -30 to 130 V, 1 channel

Add to Quote List Remove from Quote List

E-505.00S

Offset voltage source for tip/tilt platforms, 100 V fixed voltage
