H-810.I2 6-Axis Miniature Hexapod

High Precision in the Smallest Space

Travel ranges to ±20 mm / ±30°
Load capacity to 3 kg
Repeatability to ±0.08 µm
Velocity to 6 mm/s
Virtual pivot point

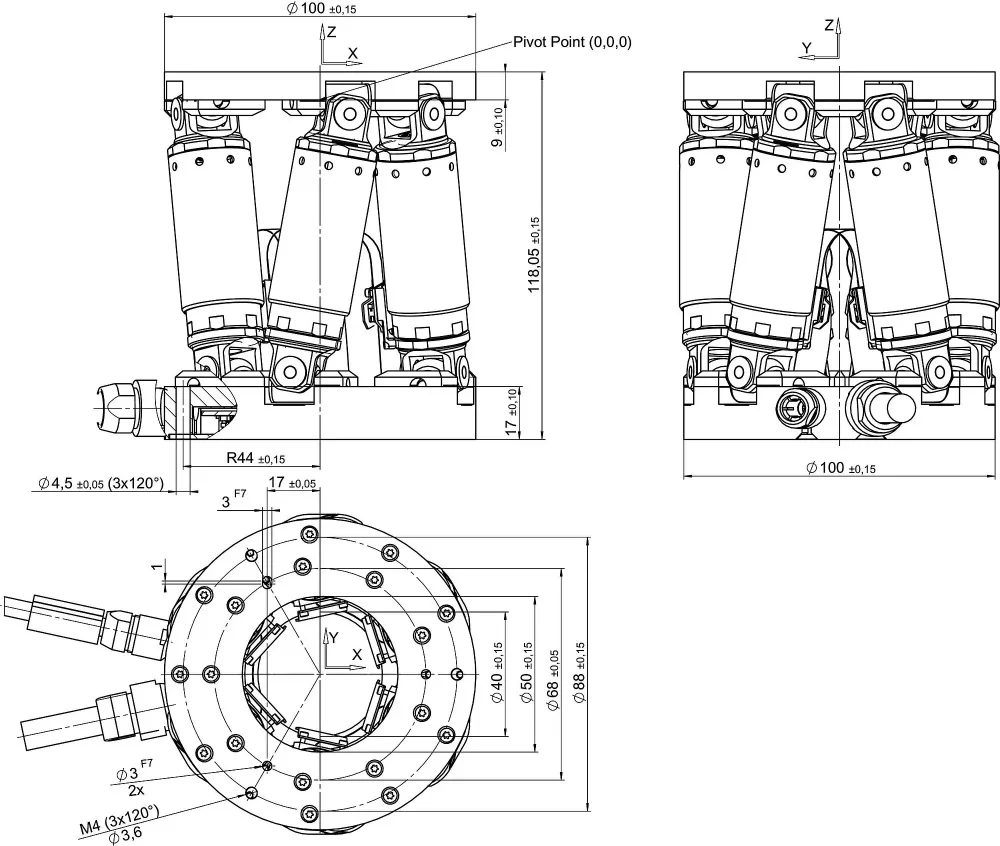

H-810.I2, dimensions in mm, at zero position of nominal travel range

Product Description Description Downloads Quote/Order

Parallel-kinematic design for six degrees of freedom, making it significantly more compact and stiff than serial-kinematic systems, higher dynamics, no moved cables: Higher reliability, reduced friction.

Brushless DC Motor (BLDC)

Brushless DC motors are particularly suitable for high rotational speeds. They can be controlled very accurately and ensure high precision. Because they dispense with sliding contacts, they run smoothly, are wear-free and therefore achieve a long lifetime.

PI Hexapod Simulation Tool

The simulation software simulates the limits of the workspace and load capacity of a hexapod. Therefore, even before purchasing, you can check whether a particular hexapod model can handle the loads, forces, and torques occurring in an application. For this purpose, the simulation tool takes the position and motion of the hexapod as well as the pivot point and several reference coordinate systems into account.

Application fields

Industry and research. For micromanipulation, biotechnology, tool inspection.

3D Models

3-D model H-810.I2

Version / Date

2020-09-24
zip - 2 MB

Add to List Remove from List

Datasheet

Datasheet H-810.I2

Version / Date

2022-09-12
pdf - 1 MB

Download

Documentation

User Manual MS252

H-810.I2 Hexapod Microrobot

Version / Date

2.1.0 2023-02-23
pdf - 2 MB

Add to List Remove from List

Product Note

Product Change Notification Motor Driven Products

Version / Date

2021-04-19
pdf - 917 KB

Download

Product Note

Product Change Notification Hexapod Cables

Version / Date

2021-01-15
pdf - 186 KB

Download

Software File

Hexapod Simulation Tool

Version / Date

2022-01-26
zip - 18 MB

Add to List Remove from List

H-810.I2

Miniature hexapod microrobot for six degrees of motion freedom, brushless DC motors, 3 kg load capacity, 6 mm/s velocity, 0.5 m cable length. Connecting cables are not included in the scope of delivery and must be ordered separately.
