P-216 PICA Power Piezo Actuators

Preloaded Piezo Actuators (HVPZT) with Sensor Option

Travel range up to 180 µm
Push force capacity to 4500 N
Pull force capacity to 500 N
Sub-ms response time
Sub-nm resolution
Optional: Suitable for vacuum, high temperature

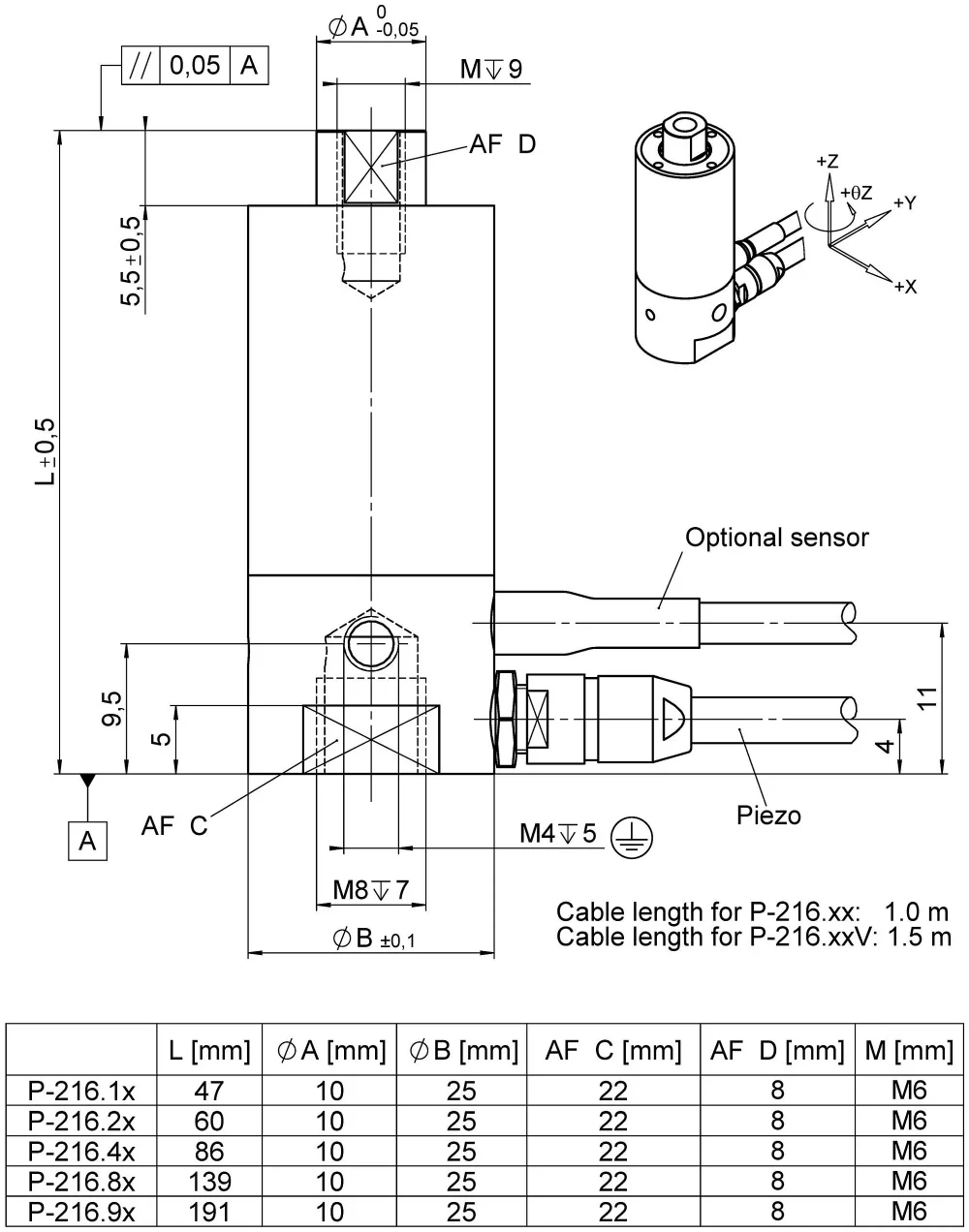

P-216, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

Product Description Description Specifications Downloads Quote/Order

Application fields

Active vibration absorber
Adaptive mechanics
Precision mechanics / micromechanics
Optics
Measuring technology / interferometry
Adaptive systems technology
Switch
Laser tuning
Force generation / materials testing
Nanotechnology

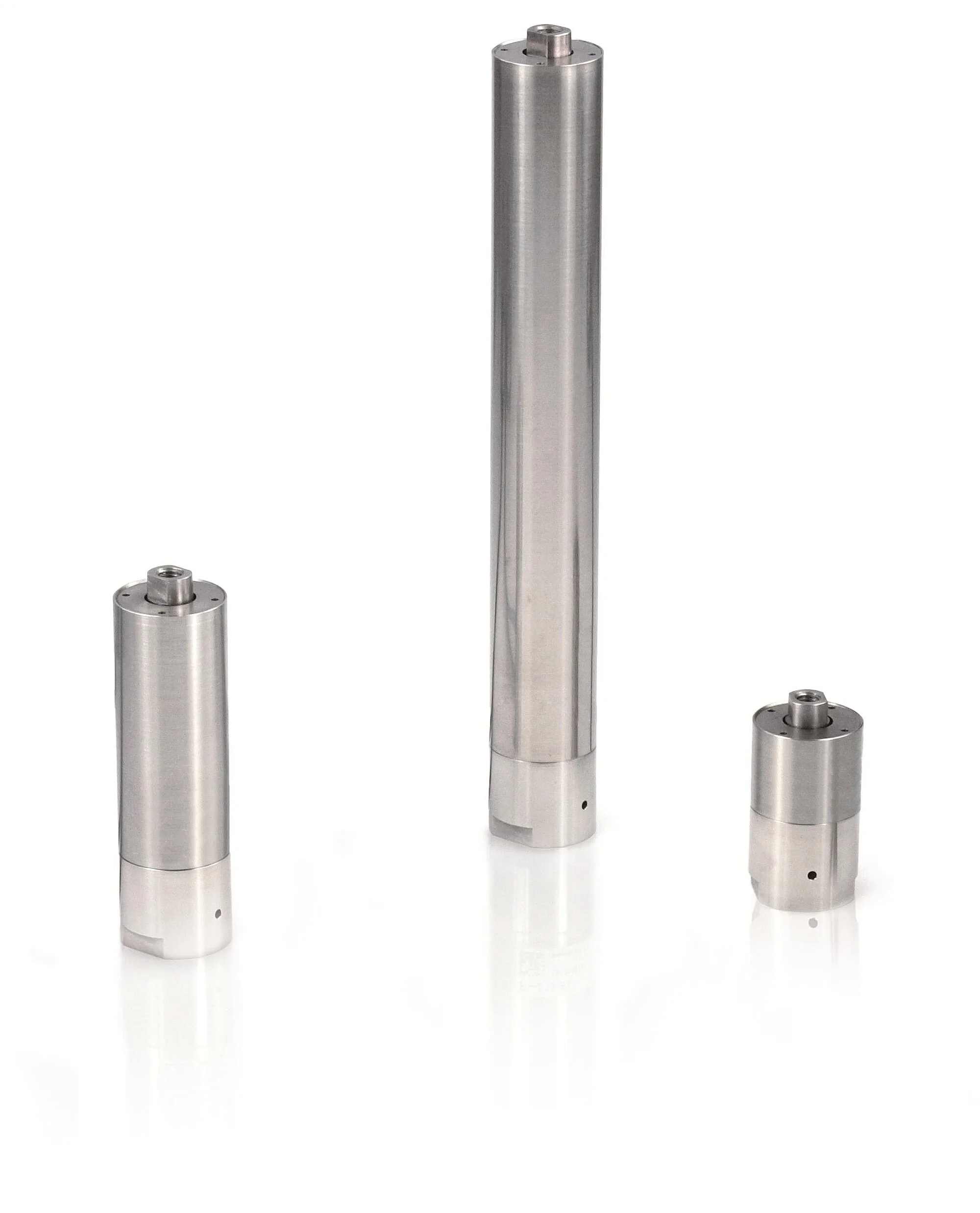

PICA Power piezo actuators for high loads

PICA Power high-load stack actuators are reliable and provide long travel ranges for heavy loads. The actuators are suitable for demanding loads with high temperatures.

Suitable for sophisticated vacuum applications

Piezo actuators do not require lubricants or cause abrasion. Versions are available for vacuum to 10^-6 hPa and for particularly high or low operating temperatures.

Motion	P-216.10	P-216.10V	P-216.1S	P-216.1SV	P-216.20	P-216.20V	P-216.2S	P-216.2SV	P-216.40	P-216.40V	P-216.4S	P-216.4SV	P-216.80	P-216.80V	P-216.8S	P-216.8SV	P-216.90	P-216.90V	P-216.9S	P-216.9SV	Tolerance
Active axes	Z	Z	Z	Z	Z	Z	Z	Z	Z	Z	Z	Z	Z	Z	Z	Z	Z	Z	Z	Z
Travel range in Z, open loop	15 µm	15 µm	15 µm	15 µm	30 µm	30 µm	30 µm	30 µm	60 µm	60 µm	60 µm	60 µm	120 µm	120 µm	120 µm	120 µm	180 µm	180 µm	180 µm	180 µm	±20 %
Travel range in Z			15 µm	15 µm			30 µm	30 µm			60 µm	60 µm			120 µm	120 µm			180 µm	180 µm
Linearity error in Z			0.2 %	0.2 %			0.2 %	0.2 %			0.2 %	0.2 %			0.2 %	0.2 %			0.2 %	0.2 %	typ.
Positioning	P-216.10	P-216.10V	P-216.1S	P-216.1SV	P-216.20	P-216.20V	P-216.2S	P-216.2SV	P-216.40	P-216.40V	P-216.4S	P-216.4SV	P-216.80	P-216.80V	P-216.8S	P-216.8SV	P-216.90	P-216.90V	P-216.9S	P-216.9SV	Tolerance
Resolution in Z, open loop	0.15 nm	0.15 nm	0.15 nm	0.15 nm	0.3 nm	0.3 nm	0.3 nm	0.3 nm	0.6 nm	0.6 nm	0.6 nm	0.6 nm	1.2 nm	1.2 nm	1.2 nm	1.2 nm	1.8 nm	1.8 nm	1.8 nm	1.8 nm	typ.
Integrated sensor			SGS, direct position measuring	SGS, direct position measuring			SGS, direct position measuring	SGS, direct position measuring			SGS, direct position measuring	SGS, direct position measuring			SGS, direct position measuring	SGS, direct position measuring			SGS, direct position measuring	SGS, direct position measuring
System resolution in Z			0.3 nm	0.3 nm			0.6 nm	0.6 nm			1.2 nm	1.2 nm			2.4 nm	2.4 nm			3.6 nm	3.6 nm
Drive Properties	P-216.10	P-216.10V	P-216.1S	P-216.1SV	P-216.20	P-216.20V	P-216.2S	P-216.2SV	P-216.40	P-216.40V	P-216.4S	P-216.4SV	P-216.80	P-216.80V	P-216.8S	P-216.8SV	P-216.90	P-216.90V	P-216.9S	P-216.9SV	Tolerance
Operating voltage	0 to 1000	0 to 1000	0 to 1000	0 to 1000	0 to 1000	0 to 1000	0 to 1000	0 to 1000	0 to 1000	0 to 1000	0 to 1000	0 to 1000	0 to 1000	0 to 1000	0 to 1000	0 to 1000	0 to 1000	0 to 1000	0 to 1000	0 to 1000
Drive type	PICA	PICA	PICA	PICA	PICA	PICA	PICA	PICA	PICA	PICA	PICA	PICA	PICA	PICA	PICA	PICA	PICA	PICA	PICA	PICA
Actuator type	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator	Linear actuator
Electrical capacitance in Z	130 nF	130 nF	130 nF	130 nF	250 nF	250 nF	250 nF	250 nF	500 nF	500 nF	500 nF	500 nF	1000 nF	1000 nF	1000 nF	1000 nF	1500 nF	1500 nF	1500 nF	1500 nF	±20 %
Mechanical Properties	P-216.10	P-216.10V	P-216.1S	P-216.1SV	P-216.20	P-216.20V	P-216.2S	P-216.2SV	P-216.40	P-216.40V	P-216.4S	P-216.4SV	P-216.80	P-216.80V	P-216.8S	P-216.8SV	P-216.90	P-216.90V	P-216.9S	P-216.9SV	Tolerance
Stiffness in Z	210 N/µm	210 N/µm	210 N/µm	210 N/µm	140 N/µm	140 N/µm	140 N/µm	140 N/µm	80 N/µm	80 N/µm	80 N/µm	80 N/µm	50 N/µm	50 N/µm	50 N/µm	50 N/µm	32 N/µm	32 N/µm	32 N/µm	32 N/µm	±20 %
Resonant frequency in Z, unloaded	17 kHz	17 kHz	17 kHz	17 kHz	12 kHz	12 kHz	12 kHz	12 kHz	7 kHz	7 kHz	7 kHz	7 kHz	4.5 kHz	4.5 kHz	4.5 kHz	4.5 kHz	3 kHz	3 kHz	3 kHz	3 kHz	±20 %
Permissible push force in Y	60 N	60 N	60 N	60 N	36 N	36 N	36 N	36 N	23 N	23 N	23 N	23 N	23 N	23 N	23 N	23 N	23 N	23 N	23 N	23 N	max.
Permissible push force in Z	4500 N	4500 N	4500 N	4500 N	4500 N	4500 N	4500 N	4500 N	4500 N	4500 N	4500 N	4500 N	4500 N	4500 N	4500 N	4500 N	4500 N	4500 N	4500 N	4500 N	max.
Permissible pull force in Z	500 N	500 N	500 N	500 N	500 N	500 N	500 N	500 N	500 N	500 N	500 N	500 N	500 N	500 N	500 N	500 N	500 N	500 N	500 N	500 N	max.
Permissible torque in θZ	1 N·m	1 N·m	1 N·m	1 N·m	1 N·m	1 N·m	1 N·m	1 N·m	1 N·m	1 N·m	1 N·m	1 N·m	1 N·m	1 N·m	1 N·m	1 N·m	1 N·m	1 N·m	1 N·m	1 N·m	max.
Overall mass	170 g	170 g	170 g	170 g	200 g	200 g	200 g	200 g	250 g	250 g	250 g	250 g	370 g	370 g	370 g	370 g	480 g	480 g	480 g	480 g	±5 %
Material	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel
Miscellaneous	P-216.10	P-216.10V	P-216.1S	P-216.1SV	P-216.20	P-216.20V	P-216.2S	P-216.2SV	P-216.40	P-216.40V	P-216.4S	P-216.4SV	P-216.80	P-216.80V	P-216.8S	P-216.8SV	P-216.90	P-216.90V	P-216.9S	P-216.9SV	Tolerance
Operating temperature range	-40 to 80 °C	-40 to 100 °C	-40 to 80 °C	-40 to 100 °C	-40 to 80 °C	-40 to 100 °C	-40 to 80 °C	-40 to 100 °C	-40 to 80 °C	-40 to 100 °C	-40 to 80 °C	-40 to 100 °C	-40 to 80 °C	-40 to 100 °C	-40 to 80 °C	-40 to 100 °C	-40 to 80 °C	-40 to 100 °C	-40 to 80 °C	-40 to 100 °C
Connector	LEMO HVPZT	LEMO HVPZT	LEMO HVPZT	LEMO HVPZT	LEMO HVPZT	LEMO HVPZT	LEMO HVPZT	LEMO HVPZT	LEMO HVPZT	LEMO HVPZT	LEMO HVPZT	LEMO HVPZT	LEMO HVPZT	LEMO HVPZT	LEMO HVPZT	LEMO HVPZT	LEMO HVPZT	LEMO HVPZT	LEMO HVPZT	LEMO HVPZT
Cable length	1 m	1.5 m	1 m	1.5 m	1 m	1.5 m	1 m	1.5 m	1 m	1.5 m	1 m	1.5 m	1 m	1.5 m	1 m	1.5 m	1 m	1.5 m	1 m	1.5 m
Recommended controllers / drivers	E-462, E-464, E-470 • E-472 • E-421, E-481, E-482, E-508	E-462, E-464, E-470 • E-472 • E-421, E-481, E-482, E-508	E-462, E-464, E-470 • E-472 • E-421, E-481, E-482, E-508	E-462, E-464, E-470 • E-472 • E-421, E-481, E-482, E-508	E-462, E-464, E-470 • E-472 • E-421, E-481, E-482, E-508	E-462, E-464, E-470 • E-472 • E-421, E-481, E-482, E-508	E-462, E-464, E-470 • E-472 • E-421, E-481, E-482, E-508	E-462, E-464, E-470 • E-472 • E-421, E-481, E-482, E-508	E-462, E-464, E-470 • E-472 • E-421, E-481, E-482, E-508	E-462, E-464, E-470 • E-472 • E-421, E-481, E-482, E-508	E-462, E-464, E-470 • E-472 • E-421, E-481, E-482, E-508	E-462, E-464, E-470 • E-472 • E-421, E-481, E-482, E-508	E-462, E-464, E-470 • E-472 • E-421, E-481, E-482, E-508	E-462, E-464, E-470 • E-472 • E-421, E-481, E-482, E-508	E-462, E-464, E-470 • E-472 • E-421, E-481, E-482, E-508	E-462, E-464, E-470 • E-472 • E-421, E-481, E-482, E-508	E-462, E-464, E-470 • E-472 • E-421, E-481, E-482, E-508	E-462, E-464, E-470 • E-472 • E-421, E-481, E-482, E-508	E-462, E-464, E-470 • E-472 • E-421, E-481, E-482, E-508	E-462, E-464, E-470 • E-472 • E-421, E-481, E-482, E-508
Vacuum class		10⁻⁶ hPa		10⁻⁶ hPa		10⁻⁶ hPa		10⁻⁶ hPa		10⁻⁶ hPa		10⁻⁶ hPa		10⁻⁶ hPa		10⁻⁶ hPa		10⁻⁶ hPa		10⁻⁶ hPa
Sensor connector			LEMO for strain gauge sensors	LEMO for strain gauge sensors			LEMO for strain gauge sensors	LEMO for strain gauge sensors			LEMO for strain gauge sensors	LEMO for strain gauge sensors			LEMO for strain gauge sensors	LEMO for strain gauge sensors			LEMO for strain gauge sensors	LEMO for strain gauge sensors

3D Models

P-216 3-D model

Version / Date

zip - 202 KB

Add to List Remove from List

Datasheet

Datasheet P-216

Version / Date

2022-12-21
pdf - 757 KB

Download

Documentation

User Manual PZ249

P-212, P-216 Preloaded Piezo Actuators, 1000

Version / Date

1.1.2 2022-05-24
pdf - 2 MB

Add to List Remove from List

Documentation

Short Instructions PZ246EK

Preloaded PICA Piezo Actuators 1000 V: P-21x, P-2x5

Version / Date

2.2.1 August 2018
pdf - 1 MB

Download

Product Note

Product Change Notification Piezo Actuator Driven Products

Version / Date

2021-04-19
pdf - 377 KB

Download

P-216.10

PICA Power piezo actuator; PICA piezo actuator drive; 15 µm travel range (open loop); PIC255; LEMO HVPZT; 1 m cable length
