P-545.xR8S PInano® XY(Z) Piezo System

Inexpensive Nanopositioning System for High-Resolution Microscopy

Inexpensive cost-optimized design with piezoresistive sensors
Travel ranges to 200 µm × 200 µm × 200 µm
Including E-727 USB controller and software
Low profile for easy integration: 20 mm
Clear aperture for 3×1'' microscope slide, recessed insertable holder
Outstanding lifetime due to PICMA® piezo actuators
Subnanometer resolution, fast response time in the ms range

P-545.xx8S, dimensions in mm. P-545.3x8S: W = 217, C = 201. P-545.2x8S: W = 182, C = 166.

Accessories: P-545.PD3, Petri dish holder, dimensions in mm

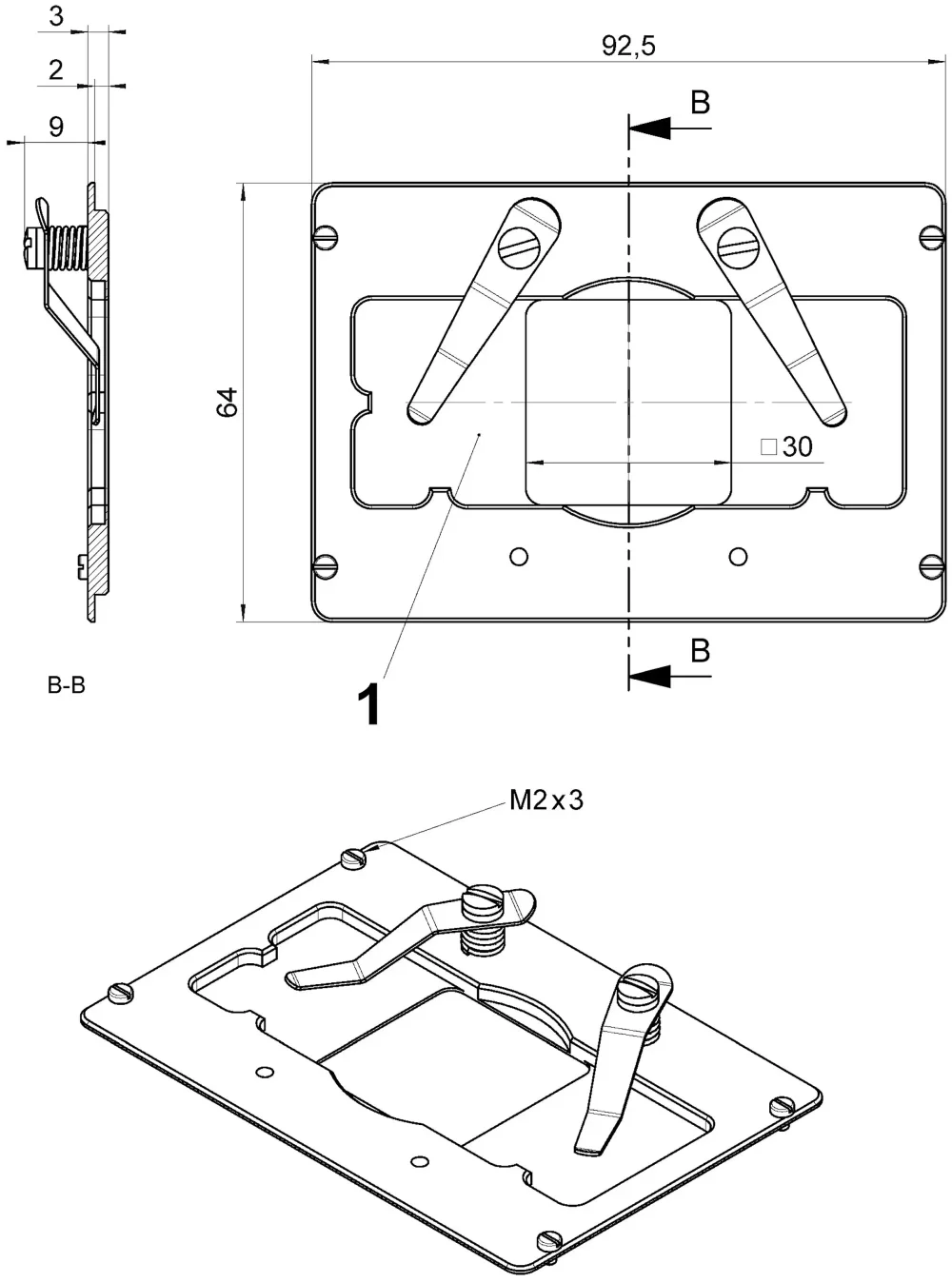

Accessories: P-545.SH3, microscope slide holder, dimensions in mm

Product Description Description Specifications Downloads Quote/Order

Application fields

High-resolution microscopy
Screening
Confocal microscopy
Biotechnology
High reliability even in environments with high air humidity

High guiding accuracy due to zero-play flexure guides

Flexure guides are free of maintenance, friction, and wear, and do not require lubrication. Their stiffness allows high load capacity and they are insensitive to shock and vibration. They are 100 % vacuum compatible and work in a wide temperature range.

Outstanding lifetime thanks to PICMA® piezo actuators

The patented PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.

Extensive software for rapid start of productive operation

Thanks to support of MATLAB and NI LabVIEW as well as all common operating systems (Windows, Linux, and macOS), integration succeeds in virtually every environment – quickly and efficiently. Sophisticated programming examples and software tools such as PIMikroMove shorten the time to productive operation considerably.

	P-545.2R8S	P-545.3R8S	Unit	Tolerance
Active axes	X, Y	X, Y, Z
Motion and positioning
Integrated sensor	Piezoresistive	Piezoresistive
Travel range, closed loop	200 × 200	200 × 200 × 200	µm
Resolution, closed loop*	1	1	nm	typ.
Mechanical properties
Push/pull force capacity	50 / 30	50 / 30	N	max.
Recommended load**	0.5	0.5	kg	max.
Drive properties
Piezo ceramic	PICMA® P-885	PICMA® P-885
Electrical capacitance	6 (X, Y)	6 (X, Y), 12 (Z)	µF	±20 %
Miscellaneous
Operating temperature range	15 to 40	15 to 40	°C
Material	Aluminum	Aluminum
Mass	1	1.2	kg	±5 %
Cable length	1.7	1.7	m	+10 cm
Piezo controller	E-727.3RDA (in the scope of delivery)
Communication interfaces	Ethernet, USB, RS-232, serial SPI high-speed interface
Analog input / Analog output	D-sub 15 Input via 18-bit A/D converter Output via 20-bit D/A converter
Command set	PI General Command Set (GCS)
User software	PIMikroMove
Software drivers	NI LabVIEW drivers, shared libraries for Windows and Linux
Supported functions	Wave generator, data recorder, drift compensation, macros

3D Models

3-D model P-545.3R8H

Version / Date

2019-08-12
zip - 533 KB

Add to List Remove from List

3D Models

3-D model P-545.2R8H

Version / Date

2019-08-12
zip - 560 KB

Add to List Remove from List

Datasheet

Datasheet P-545.xR8S

Version / Date

2018-06-06
pdf - 916 KB

Download

Documentation

Short Instructions PZ240

Piezo Positioning Systems: P-5xx / P-6xx / P-7xx

Version / Date

6.1.0 10/2019
pdf - 1 MB

Download

Documentation

User Manual PZ272

P-545.xC8S, P-545.xR8S, P-545.3D8S PInano® Piezo Systems

Version / Date

1.2.0 2023-04-20
pdf - 4 MB

Add to List Remove from List

Product Note

Product Change Notification Piezo Actuator Driven Products

Version / Date

2021-04-19
pdf - 377 KB

Download

Brochures

Microscope Stage Configurator

Sample Stages and Holders for Inverted Microscopes

Version / Date

BRO70E R3D
pdf - 4 MB

Download

P-545.2R8S

PInano® XY piezo system, clear aperture for microscope slides, 200 µm × 200 µm, piezoresistive sensors, with USB digital controller
