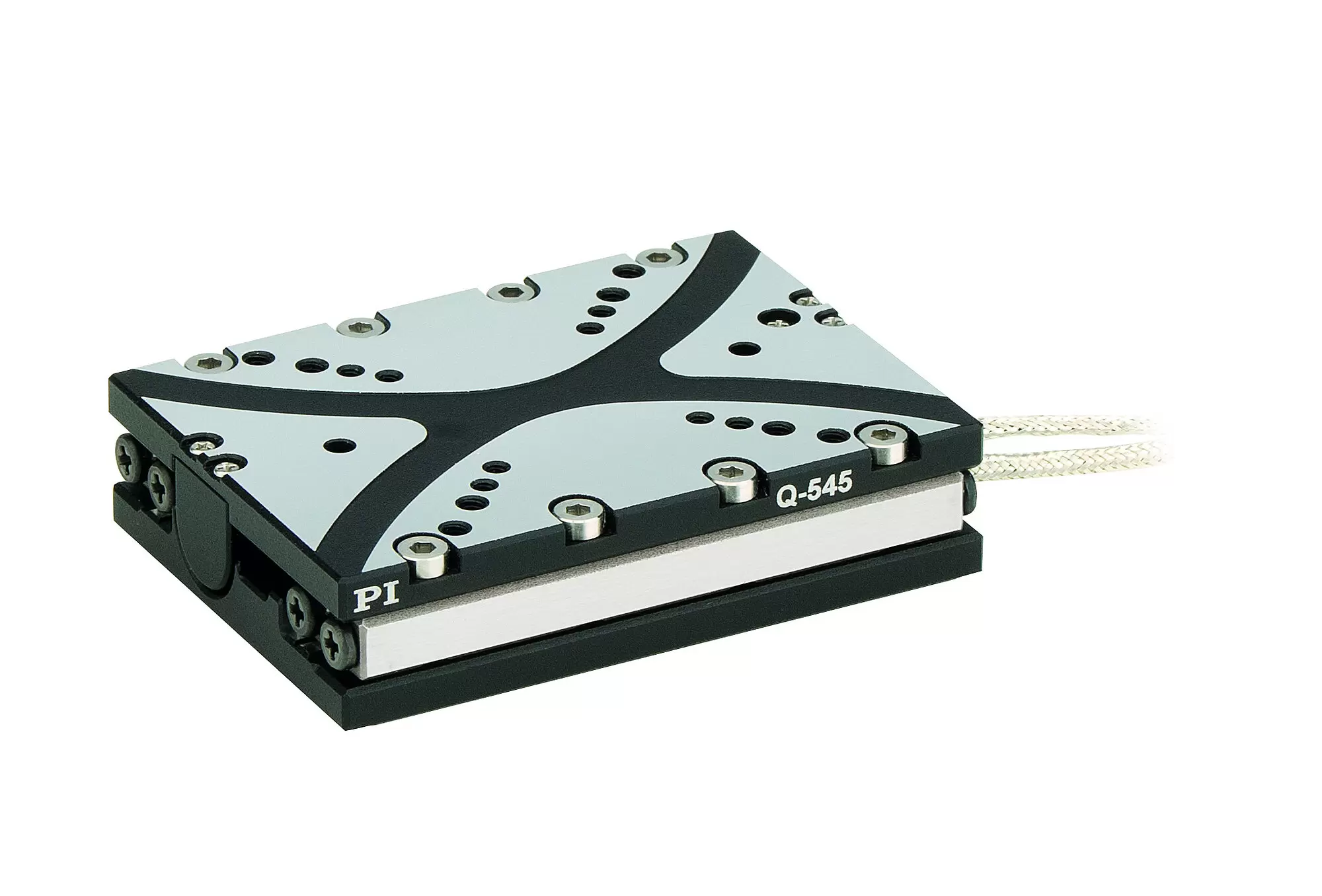

Q-545 Q‑Motion® Precision Linear Stage

High Forces and Small Design Due to Piezo Motors

Only 45 mm in width
Drive force 7 N
Incremental sensors with nanometer position resolution
XY combinations without adapter plate possible

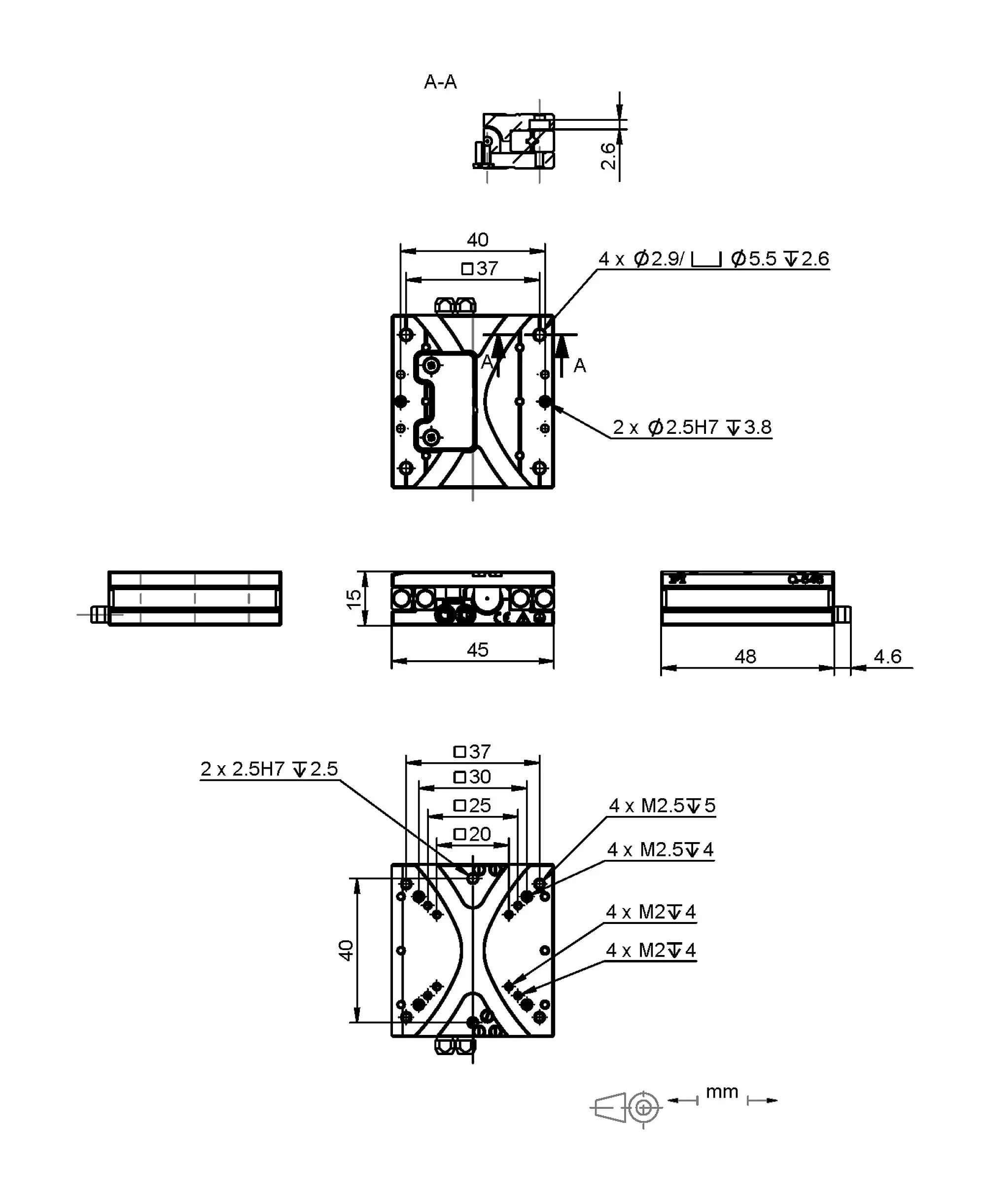

Q-545.140, dimensions in mm

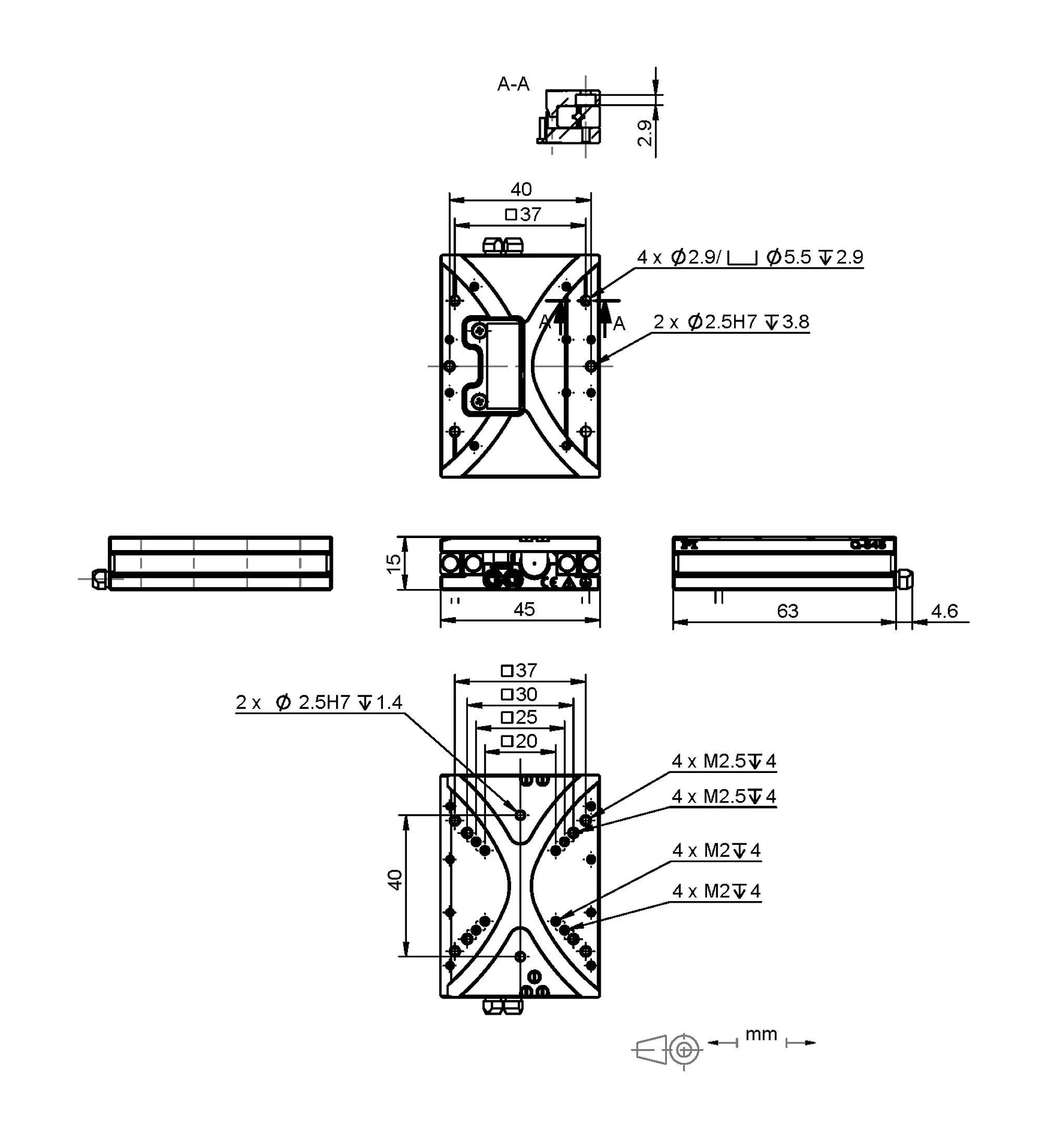

Q-545.240, dimensions in mm

Product Description Description Specifications Downloads Quote/Order

Piezoelectric inertia drive

Piezo inertia drives are space-saving and affordable piezo-based drives with relatively high holding forces and a virtually unlimited travel range. The inertia drive principle is based on a single piezoelectric actuator that is controlled with a modified sawtooth voltage provided by special driver electronics. The actuator expands slowly and moves the runner. Due to its inertia, the runner is unable to follow the subsequent fast contraction of the actuator and remains at its position. With an operating frequency of up to 20 kHz, the drives acting directly on the runner and achieve velocities of max. 6 mm/s.

Application fields

Microassembly. Photonics. Optical alignment. Microscopy. Beamline instrumentation. Semiconductor technology. Testing.

Direct-measuring principle

The linear stages are equipped with a noncontact measuring optical linear encoder and a reference switch. Resolution 1 nm.

Motion and positioning	Q-545.140	Q-545.240	Unit	Tolerance
Active axis	X	X
Travel range	13	26	mm
Maximum velocity, closed loop	8	8	mm/s
Minimum incremental motion	6	6	nm	Typ.
Pitch	250	250	µrad	Typ.
Yaw	100	250	µrad	Typ.
Linearity	2	2	µm	Typ.

3D Models

Q-545 3-D model

Version / Date

zip - 1 MB

Add to List Remove from List

Animated 3D Models

Animated 3-D Model Q-545.240

Version / Date

zip - 1,014 KB

Add to List Remove from List

Datasheet

Datasheet Q-545

Version / Date

2020-09-02
pdf - 727 KB

Download

Datasheet

Datasheet A-142

Version / Date

2021-06-14
pdf - 720 KB

Download

Documentation

Short Instructions MP139EK

Q-Motion® Positioners: Q-5xx, Q-6xx

Version / Date

4.2.0 12/2019
pdf - 1 MB

Download

Documentation

User Manual MP135

Q-545 Linear Stage, Piezoelectric Inertia Drive

Version / Date

1.1.3 2021-02-12
pdf - 4 MB

Add to List Remove from List

Product Note

Product Change Notification Q-xxx; N-765

Version / Date

2019-03-26
pdf - 435 KB

Download

Q-545.140

Q-Motion® Linear stage, piezoelectric inertia drive, 13 mm travel range, linear encoder, 1 nm resolution, 7 N drive force, dimensions 45 × 48 × 15 mm (W × L × H)

Add to Quote List Remove from Quote List

Q-545.240

Q-Motion® Linear stage, piezoelectric inertia drive, 26 mm travel range, linear encoder, 1 nm resolution, 7 N drive force, dimensions 45 × 63 × 15 mm (W × L × H)

Add to Quote List Remove from Quote List
