Function

Controller for parallel-kinematic piezo tip/tilt mirror systems with strain gauge sensors, tripod drive

E-616.S0: OEM board

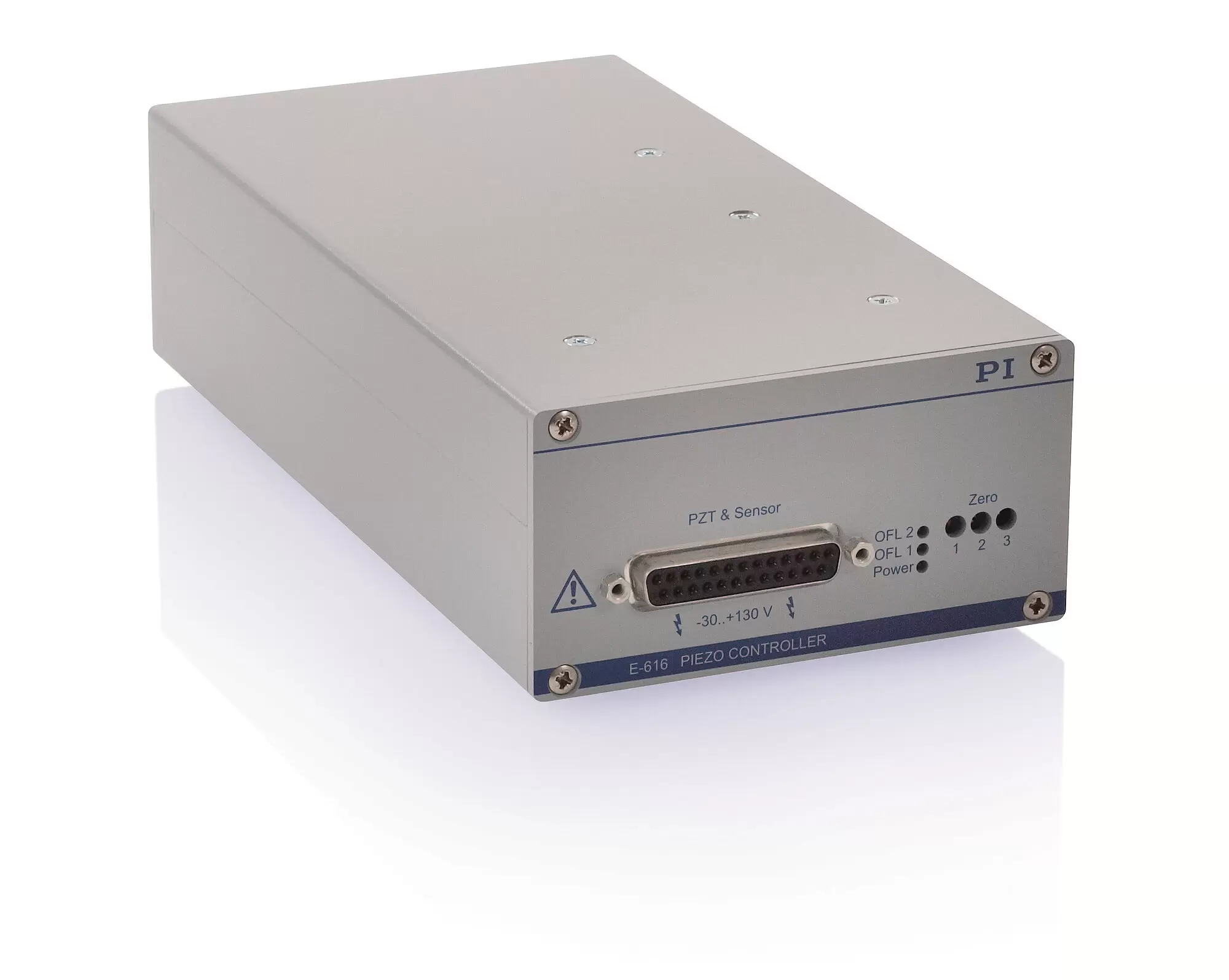

E-616.S0G: Benchtop device

Controller for parallel-kinematic piezo tip/tilt mirrors with strain gauge sensors, differential drive

E-616.SS0: OEM board

E-616.SS0G: Benchtop device

Tip/tilt axes

2

2

Controller type

P-I (analog), notch filter

P-I (analog), notch filter

Sensor type

SGS

SGS

Sensor channels

3

2

External synchronization

200 kHz TTL

200 kHz TTL

Input voltage range

-2 to 12 V

-2 to 12 V

Output voltage

E-616.S0: -20 to 120 V

E-616.S0G: -30 to 130 V

E-616.SS0: -20 to 120 V

E-616.SS0G: -30 to 130 V

Additionally: Fixed voltage 100 V

Amplifier channels

3

3

Peak power / channel (output power)

10 W

10 W

Average output power / channel

5 W

5 W

Peak current / channel

100 mA

100 mA

Average output current / channel

50 mA

50 mA

Current limitation

Short-circuit proof

Short-circuit proof

Voltage gain

10

10

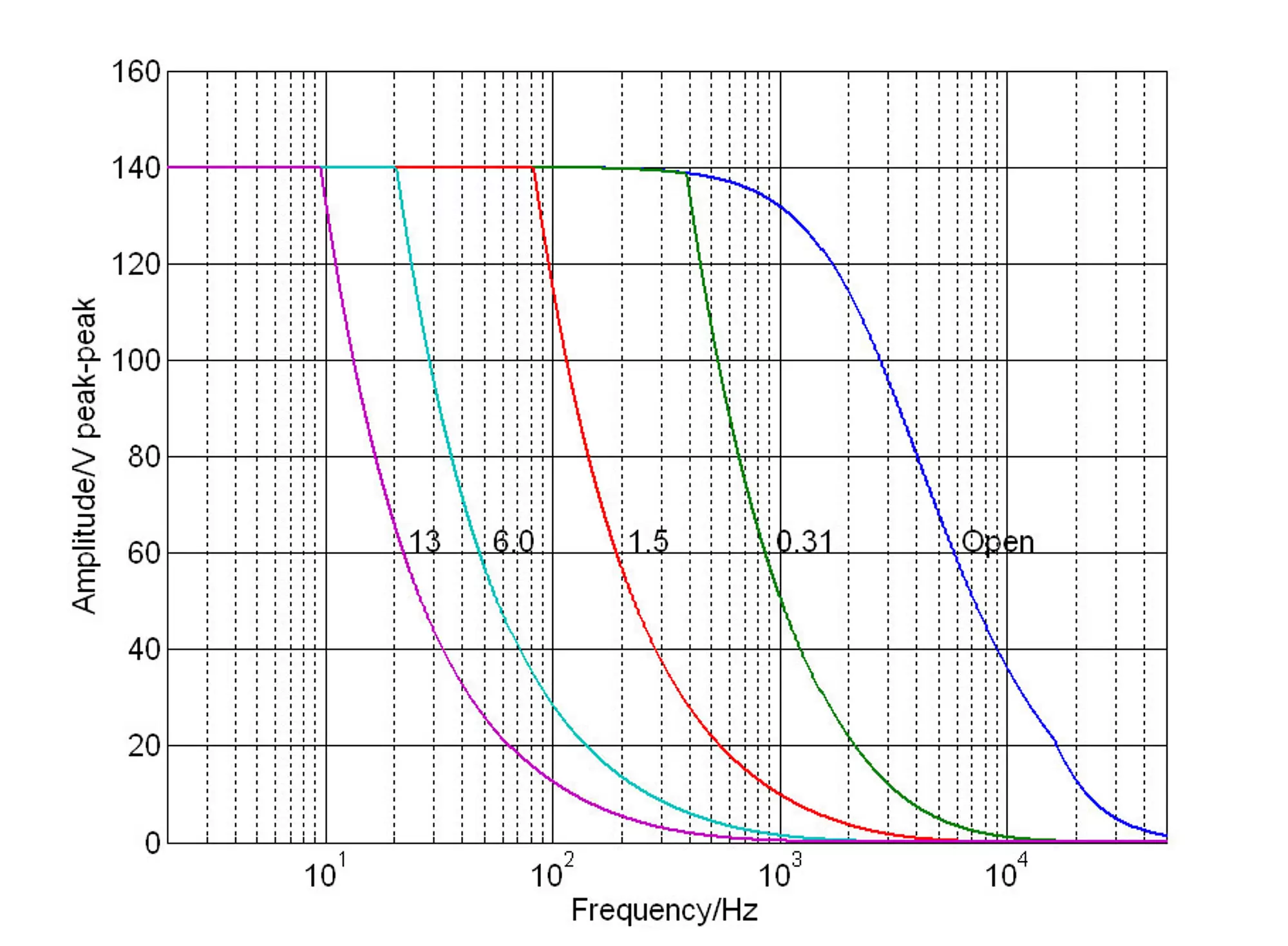

Amplifier bandwidth, small signal

3 kHz

3 kHz

Ripple, noise, 0 to 100 kHz

<20 mV_pp, <2 mV_pp

<20 mV_pp, <2 mV_pp

Amplifier resolution

<1 mV

<1 mV

Piezo / sensor connector

Sub-D 25 (f)

Sub-D 25 (f)

Analog input / control signal input

E-616.S0: 32-pin connector

E-616.S0G: SMB connector

E-616.SS0: 32-pin connector

E-616.SS0G: SMB connector

Sensor monitor signal

0 to 10 V for nominal displacement

0 to 10 V for nominal displacement

Sensor monitor output

E-616.S0: 32-pin connector

E-616.S0G: Sub-D 15-pin connector

E-616.SS0: 32-pin connector

E-616.SS0G: Sub-D 15-pin connector

Display and indicators

Power LED and sensor OFL display

Power LED and sensor OFL display

Operating temperature range

5 to 50 °C

5 to 50 °C

Overheat protection

Max. 75°C, deactivation of the voltage output

Max. 75°C, deactivation of the voltage output

Dimensions

E-616.S0: 186 mm × 128.4 mm × 10 HP

E-616.S0G: 205 mm × 105 mm × 54.1 mm

E-616.SS0: 186 mm × 128.4 mm × 10 HP

E-616.SS0G: 205 mm × 105 mm × 54.1 mm

Mass

E-616.S0: 0.95 kg

E-616.S0G: 1.2 kg

E-616.SS0: 0.95 kg

E-616.SS0G: 1.2 kg

Operating voltage

E-616.S0: 12 to 30 V DC

E-616.S0G: 23 to 26 V DC

E-616.SS0: 12 to 30 V DC

E-616.SS0G: 23 to 26 V DC

Max. power consumption

30 W

30 W
