L-239 High-Load Linear Actuator

Dynamic, High-Resolution Precision Drive with DC or Stepper Motor

High drive force up to 300 N
Travel range 52 mm (2")
Minimum incremental motion 0.1 µm
Velocity to 50 mm/s
Preloaded, low-friction ball screw

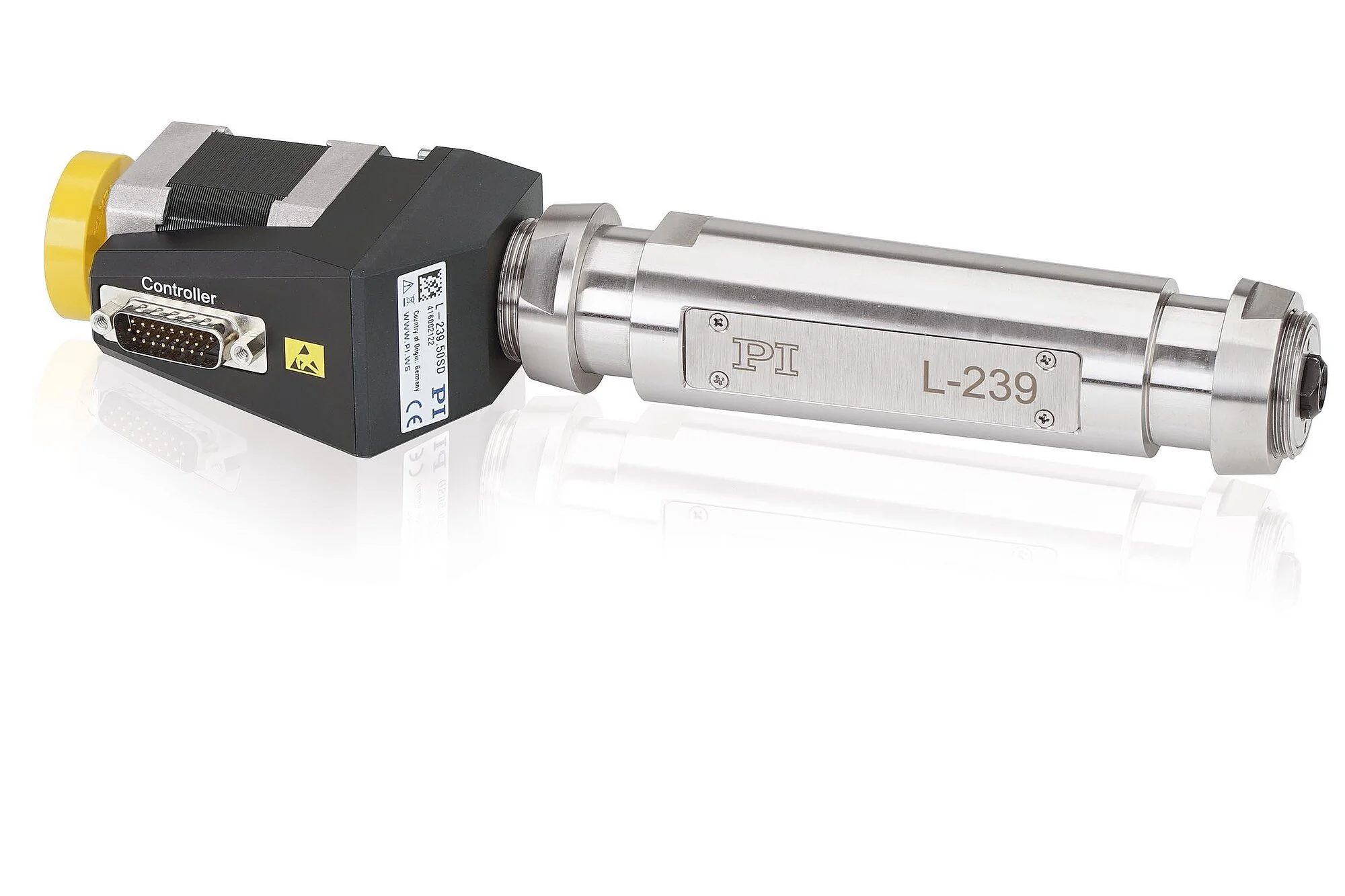

L-239.50SD

L-239.03x232, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

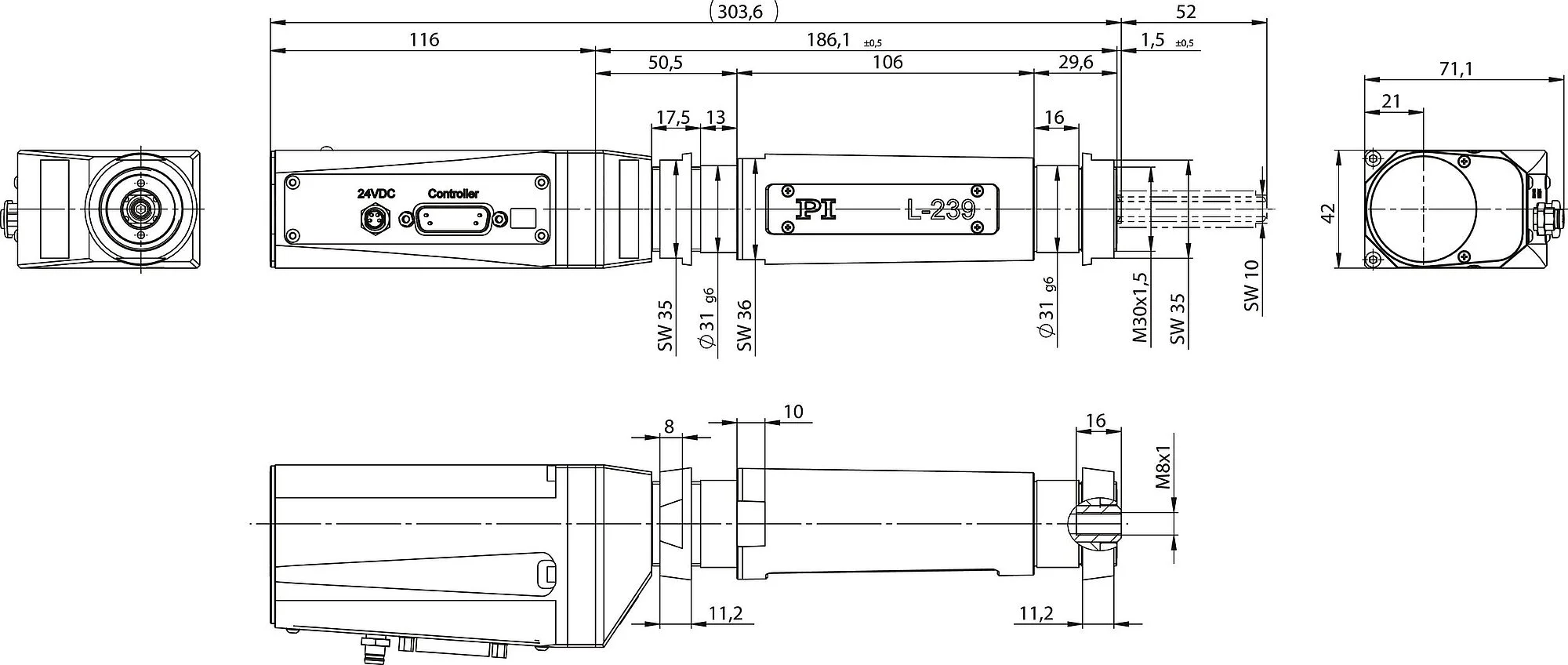

L-239.50AD, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

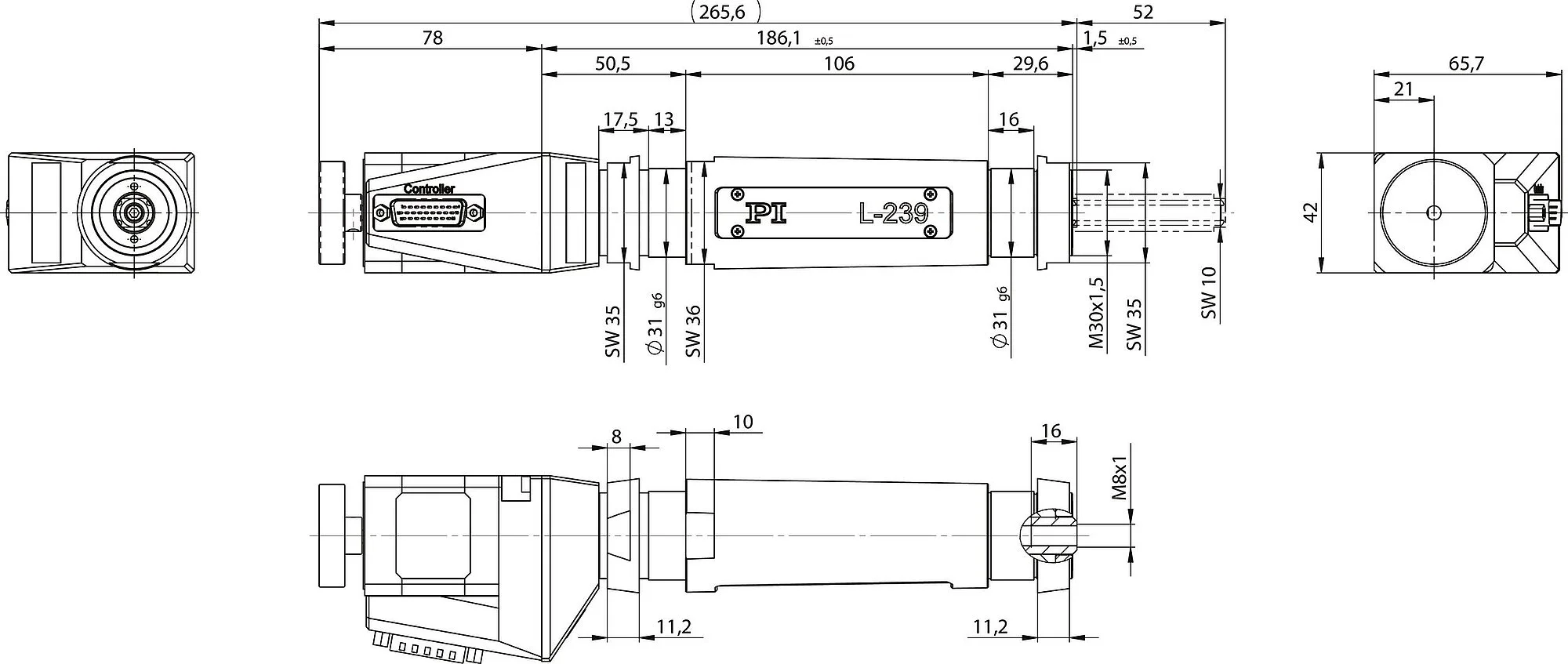

L-239.50SD, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

Product Description Description Specifications Downloads Quote/Order

Product overview

High-resolution high-load linear actuator. Stepper motor for high torque. Highly dynamic, closed-loop DC and BLDC motors for high velocities. Robust design for industrial environments.

High-quality components

Ground ball screw for high velocities
Low-friction output shaft bearing can handle lateral forces to 100N
Nonrotating tip for uniform motion prevents wobble, torque, and wear at the point of contact
Contactless limit switches protect the mechanics, a direction-sensing reference switch simplifies automation tasks
Optional on request and at additional charge: Increase of drive force to 1000 N.

Application fields

Research. Automation. Optical alignment.

Motion	L-239.033232	L-239.035232	L-239.50AD	L-239.50SD	Tolerance
Active axes	X	X	X	X
Travel range in X	52 mm	52 mm	52 mm	52 mm
Maximum velocity in X, unloaded	50 mm/s	50 mm/s	50 mm/s	25 mm/s
Positioning	L-239.033232	L-239.035232	L-239.50AD	L-239.50SD	Tolerance
Integrated sensor	Incremental rotary encoder	Incremental rotary encoder	Incremental rotary encoder
Unidirectional repeatability in X	0.2 µm	0.2 µm	0.2 µm	0.1 µm	typ.
Bidirectional repeatability in X	± 1 µm	± 1 µm	± 1 µm	± 1 µm	typ.
Minimum incremental motion in X	0.2 µm	0.2 µm	0.2 µm	0.1 µm	typ.
Sensor signal	A/B quadrature, RS-422	A/B quadrature, RS-422	A/B quadrature, RS-422
Sensor resolution	20000 Cts./rev.	20000 Cts./rev.	20000 Cts./rev.
Reference switch	Hall effect, N/C contact, 5 V, NPN	Hall effect, N/C contact, 5 V, NPN	Hall effect, N/C contact, 5 V, TTL	Hall effect, N/C contact, 5 V, NPN
Limit switches	Hall effect, N/C contact, 5 V, NPN	Hall effect, N/C contact, 5 V, NPN	Hall effect, N/C contact, 5 V, TTL	Hall effect, N/C contact, 5 V, NPN
Drive Properties	L-239.033232	L-239.035232	L-239.50AD	L-239.50SD	Tolerance
Drive type	DC motor	Brushless DC motor	DC motor with ActiveDrive	2-phase stepper motor
Nominal voltage	24 V	24 V	24 V	24 V
Peak voltage	48 V	48 V	24 V	48 V
Drive force in positive direction of motion in X	300 N	300 N	300 N	300 N	typ.
Drive force in negative direction of motion in X	300 N	300 N	300 N	300 N	typ.
Motor resolution				200 Full steps/rev.
Mechanical Properties	L-239.033232	L-239.035232	L-239.50AD	L-239.50SD	Tolerance
Guide	Recirculating ball bearing guide	Recirculating ball bearing guide	Recirculating ball bearing guide	Recirculating ball bearing guide
Drive screw type	Ball screw	Ball screw	Ball screw	Ball screw
Drive screw pitch	1 mm	1 mm	1 mm	1 mm
Holding force in X, passive	40 N	40 N	40 N	80 N
Moved mass in X, unloaded	155 g	155 g	155 g	155 g
Permissible push force in Y	10 N	10 N	10 N	10 N	max.
Overall mass	1750 g	1750 g	1720 g	1650 g
Material	Aluminum, stainless steel	Aluminum, stainless steel	Aluminum, stainless steel	Aluminum, stainless steel
Miscellaneous	L-239.033232	L-239.035232	L-239.50AD	L-239.50SD	Tolerance
Operating temperature range	5 to 40 °C	5 to 40 °C	5 to 40 °C	5 to 40 °C
Connector	HD D-sub 26-pin (m)	HD D-sub 26-pin (m)	D-sub 15-pin (m)	HD D-sub 26-pin (m)
Recommended controllers / drivers	C-863 C-885 with C-863.20C885 C-884 Modular ACS controller	C-891 C-885 with C-891.11C885 Modular ACS controller	C-863 C-885 with C-863.20C885 C-884	C-663.12 C-885 with C-663.12C885 Modular ACS controller
Connector for supply voltage			M8 4-pin (m)

3D Models

L-239 3-D model

Version / Date

zip - 5 MB

Add to List Remove from List

Datasheet

Datasheet L-239

Version / Date

2023-03-03
pdf - 1 MB

Download

Documentation

User Manual MP156

L-239 High-Load Linear Actuator

Version / Date

1.3.0 2022-10-18
pdf - 1 MB

Add to List Remove from List

Documentation

Short Instructions MP159EK

Linear Actuators: L-2xx

Version / Date

2.1.0 2023.08
pdf - 358 KB

Download

L-239.033232

High-load linear actuator; DC motor; 52 mm travel range; 300 N feed force; 50 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev. sensor resolution, A/B quadrature, RS-422; limit switches: Hall effect, opener, 5 V, NPN

Add to Quote List Remove from Quote List

L-239.035232

High-load linear actuator; brushless DC motor; 52 mm travel range; 300 N feed force; 50 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev. sensor resolution, A/B quadrature, RS-422; limit switches: Hall effect, opener, 5 V, NPN

Add to Quote List Remove from Quote List

L-239.50AD

High-load linear actuator; DC motor with ActiveDrive; 52 mm travel range; 300 N feed force; 50 mm/s maximum velocity; ball screw; incremental rotary encoder, 20000 counts/rev. sensor resolution, A/B quadrature, RS-422; limit switches: Hall effect, opener, 5 V, TTL

Add to Quote List Remove from Quote List

L-239.50SD

High-load linear actuator; 2-phase stepper motor; 52 mm travel range; 300 N feed force; 25 mm/s maximum velocity; ball screw; limit switches: Hall effect, opener, 5 V, NPN
