Products PI - Sensors, Components & Accessories Adapter Brackets
L-505.APx Adapter Bracket
For Mounting L-505 Linear Stages Vertically
  • Simple Z mounting of L-505 linear stages
  • Delivery includes mounting kit

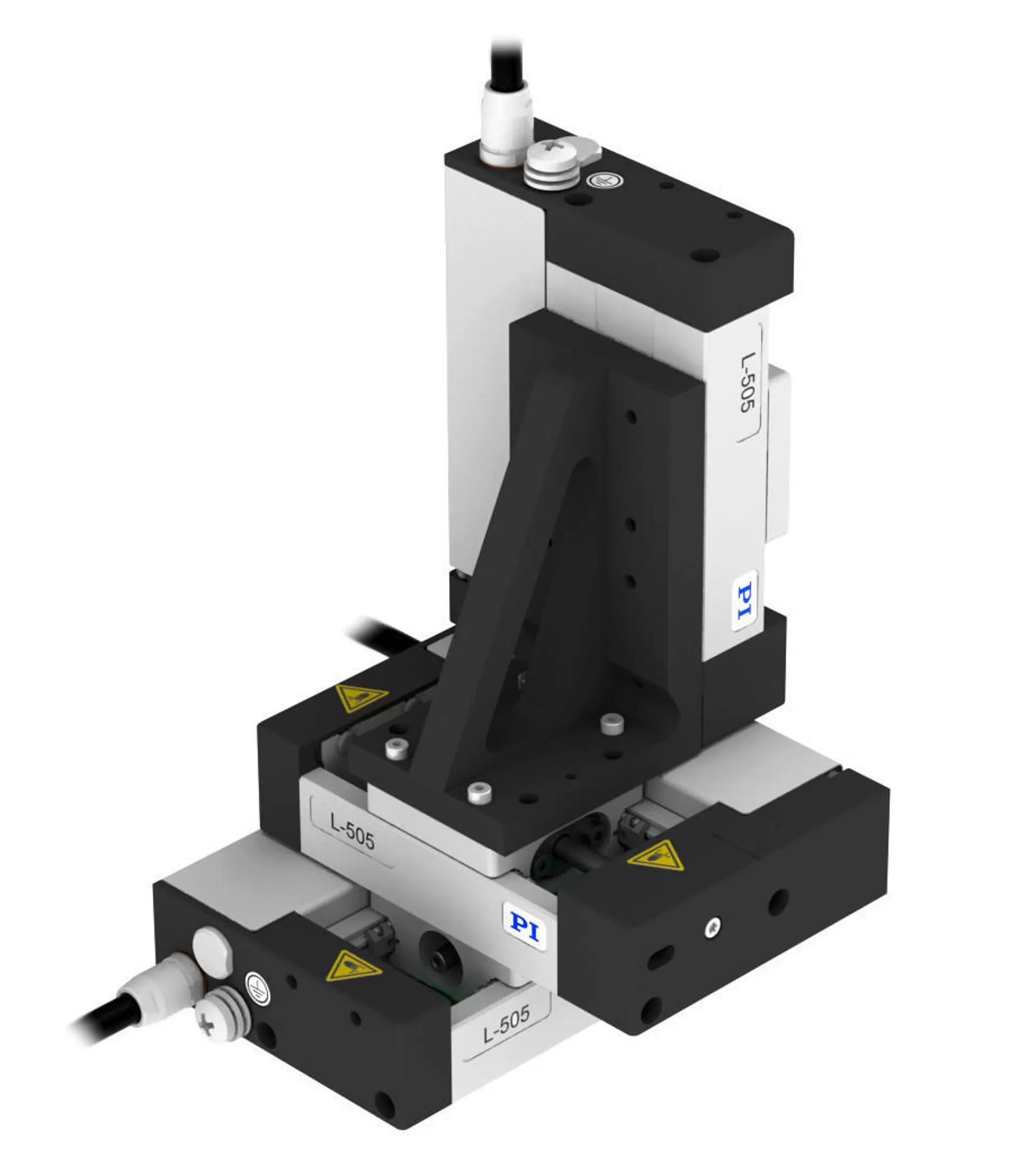

XYZ assembly consisting of three L-505.023212F linear stages and L-505.AP1 adapter bracket
XYZ assembly consisting of three L-505.023212F linear stages and L-505.AP1 adapter bracket

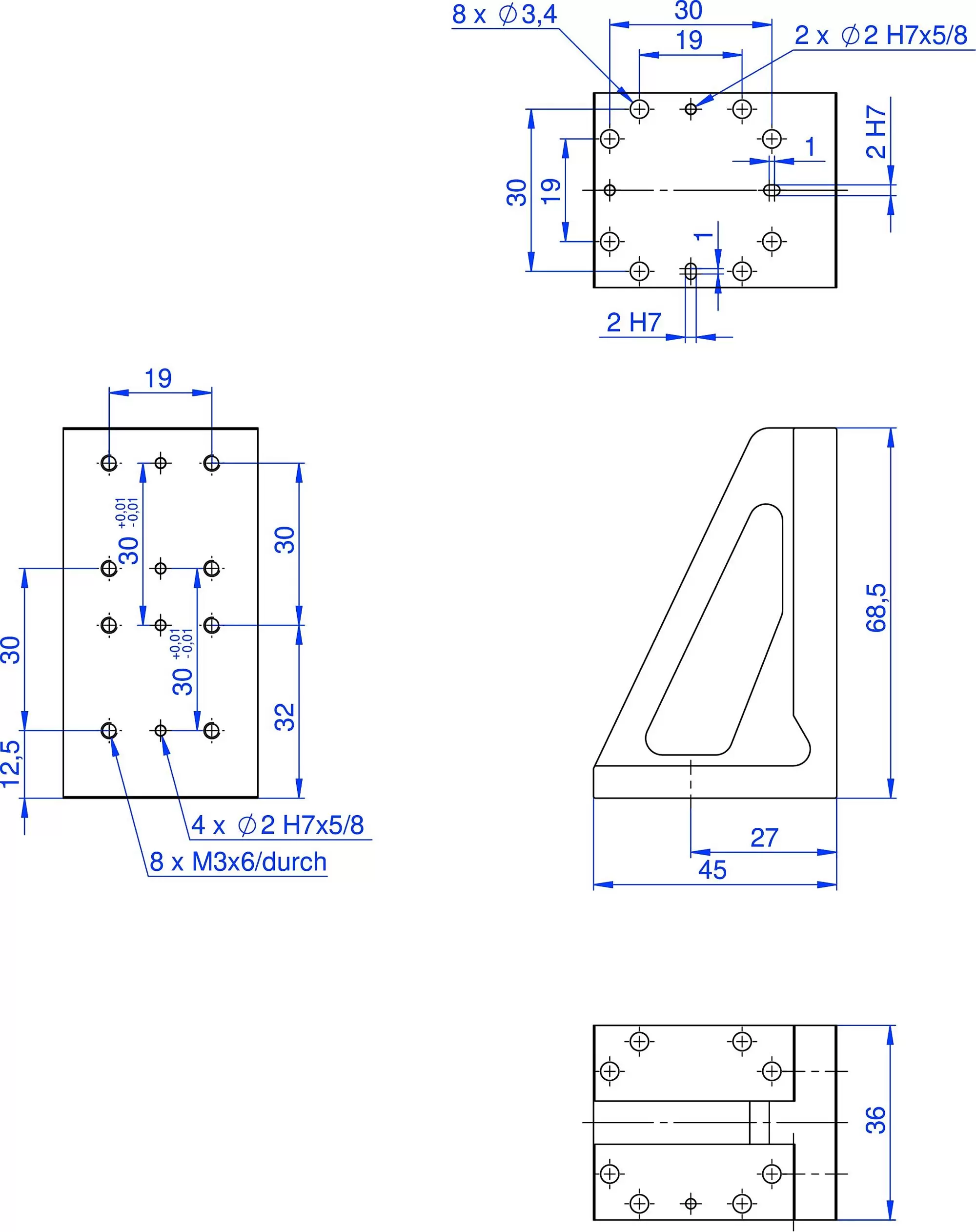

L-505.AP1, dimensions in mm
L-505.AP1, dimensions in mm

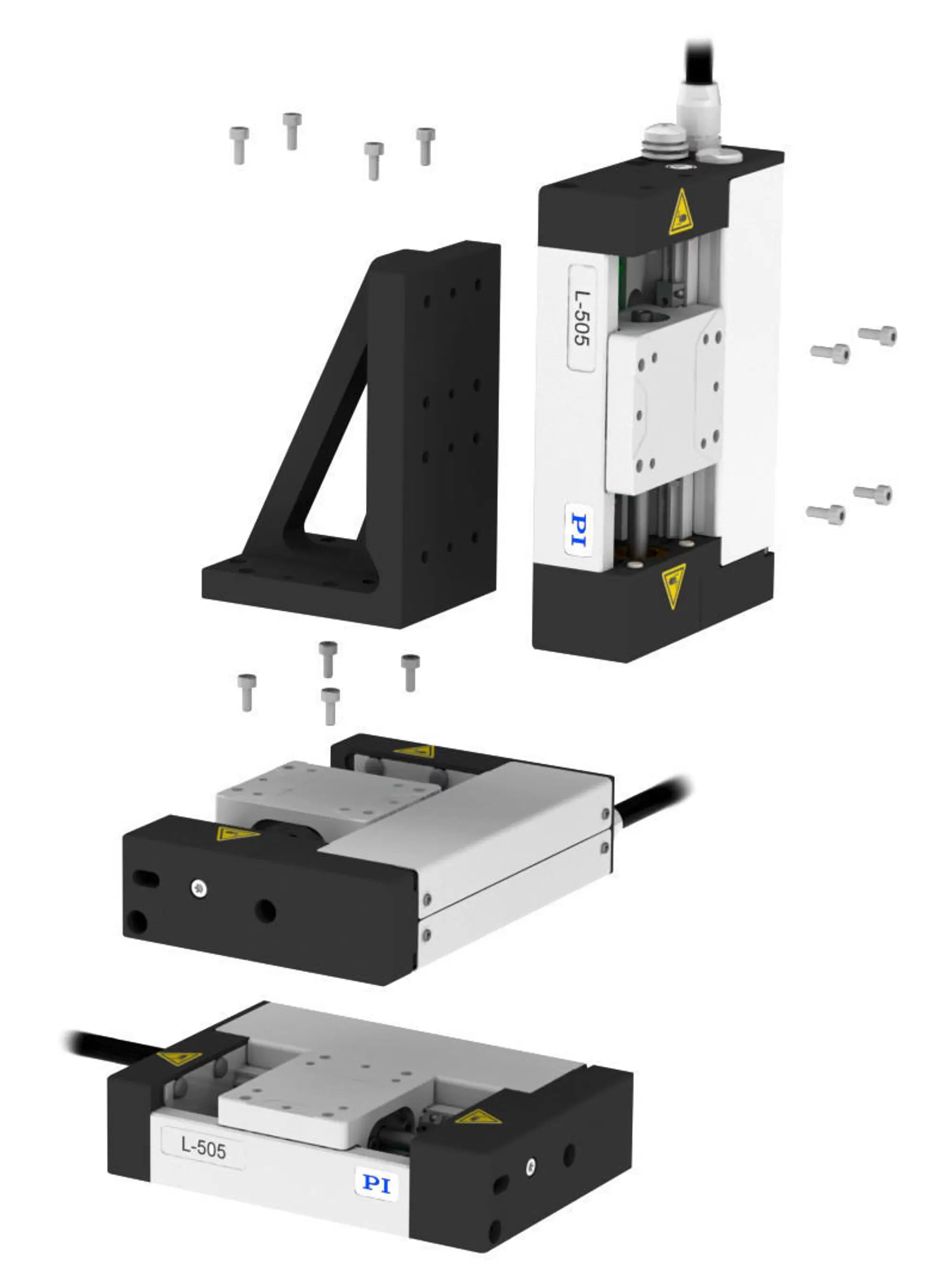

Exploded view of an XYZ assembly consisting of three L-505.023212F linear stages and L-505.AP1 adapter bracket
Exploded view of an XYZ assembly consisting of three L-505.023212F linear stages and L-505.AP1 adapter bracket

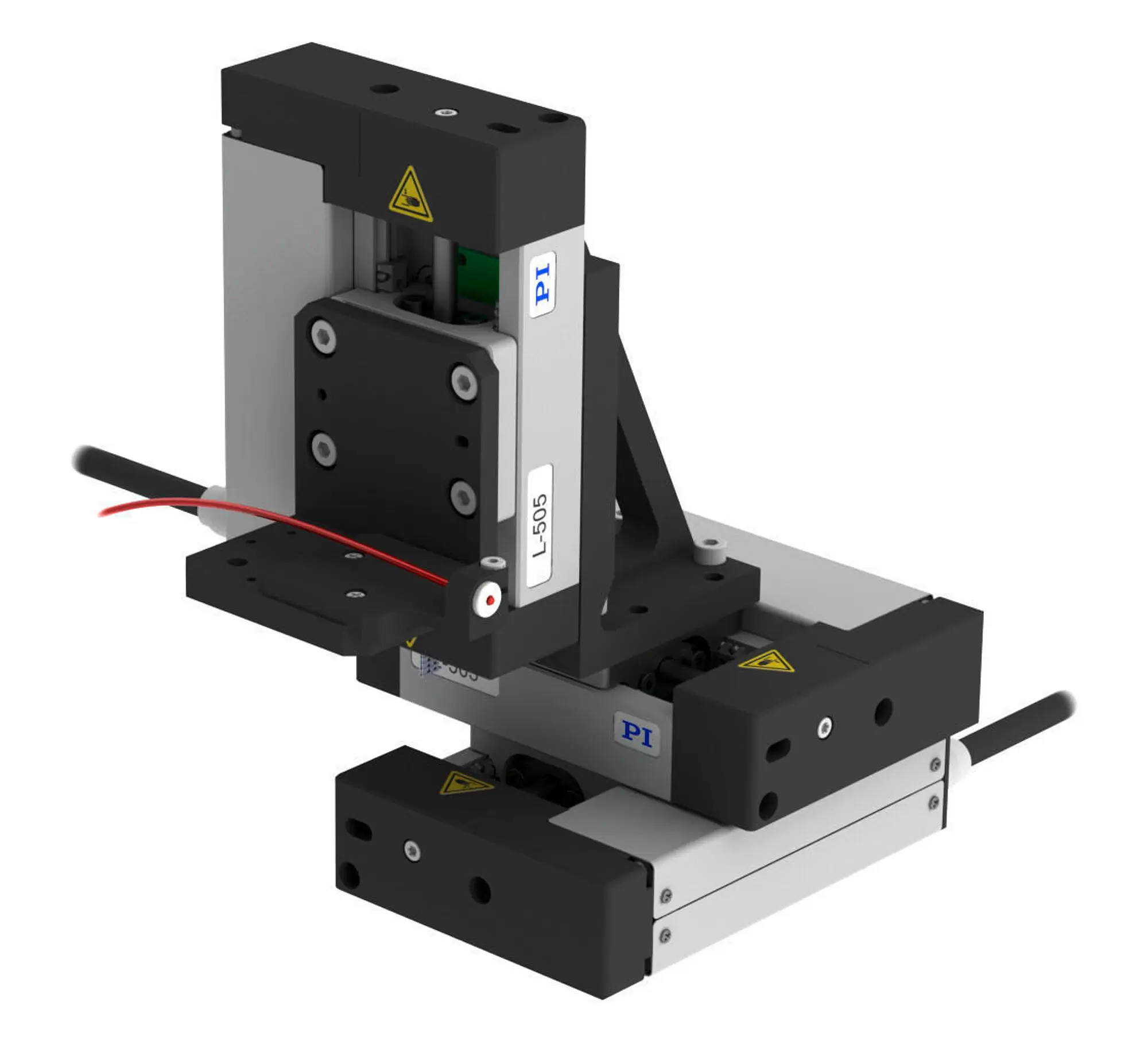

XYZ assembly for fiber alignment consisting of three L-505.023212F linear stages
XYZ assembly for fiber alignment consisting of three L-505.023212F linear stages
SpecificationsDownloadsQuote/Order
  L-505.AP1
Material Anodized aluminum
Overall mass 875 g
3D Models
3D Models
3D model L-505.APx
Version / Date

zip - 42 KB
Add to List Remove from List
Datasheet
Datasheet
Datasheet L-505.APx
Version / Date
2022-06-02
pdf - 558 KB
Download
L-505.AP1
Adapter bracket for vertical mounting of L-505 linear stages, incl. mounting kit
Add to Quote List Remove from Quote List
