L-836.APx Adapter Bracket

For Mounting L-8x6 / V-8x6 Vertically

Simple Z mounting of L-8x6 and V-8x6 stages
Delivery includes mounting kit

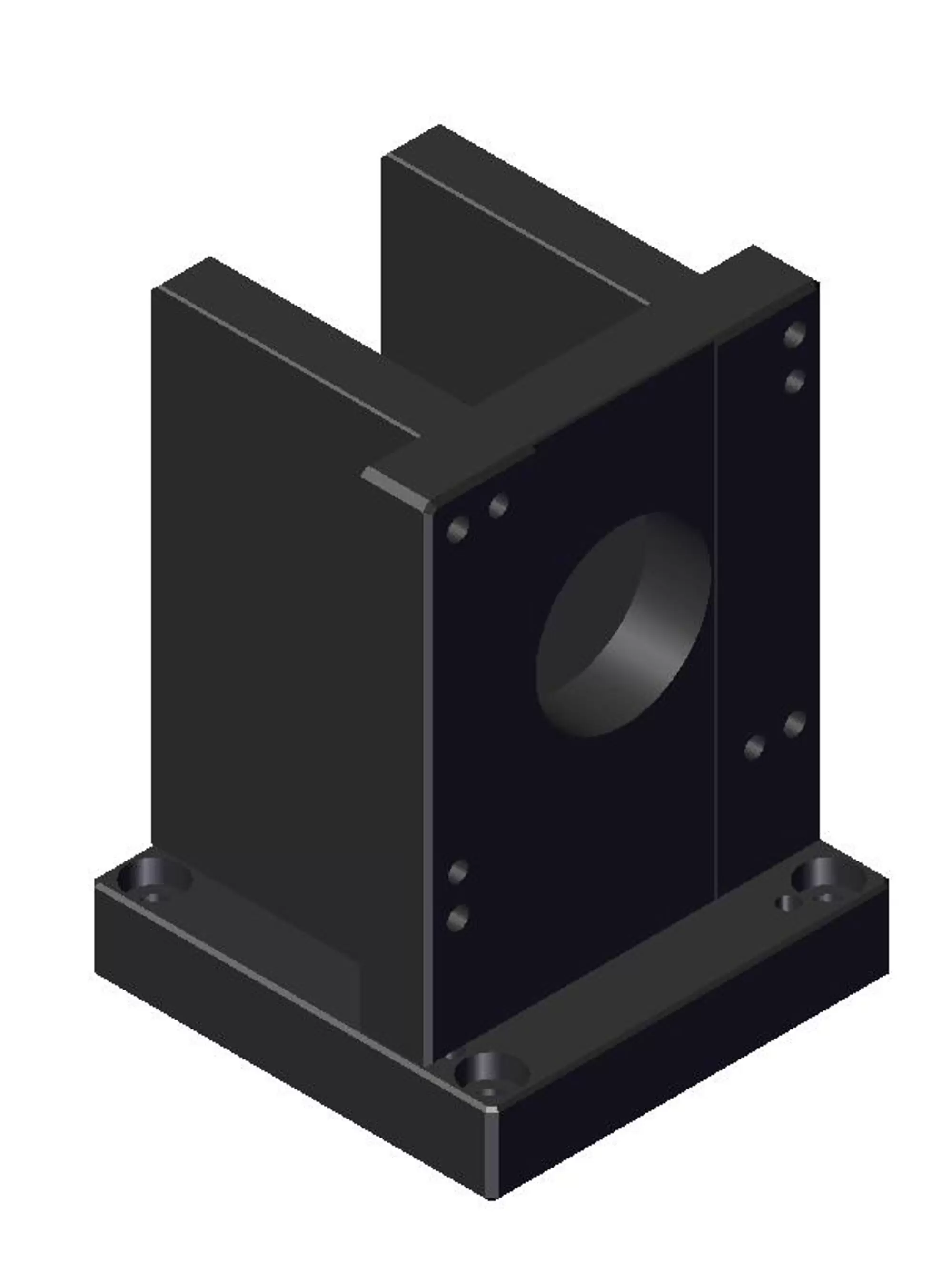

L-836.AP1

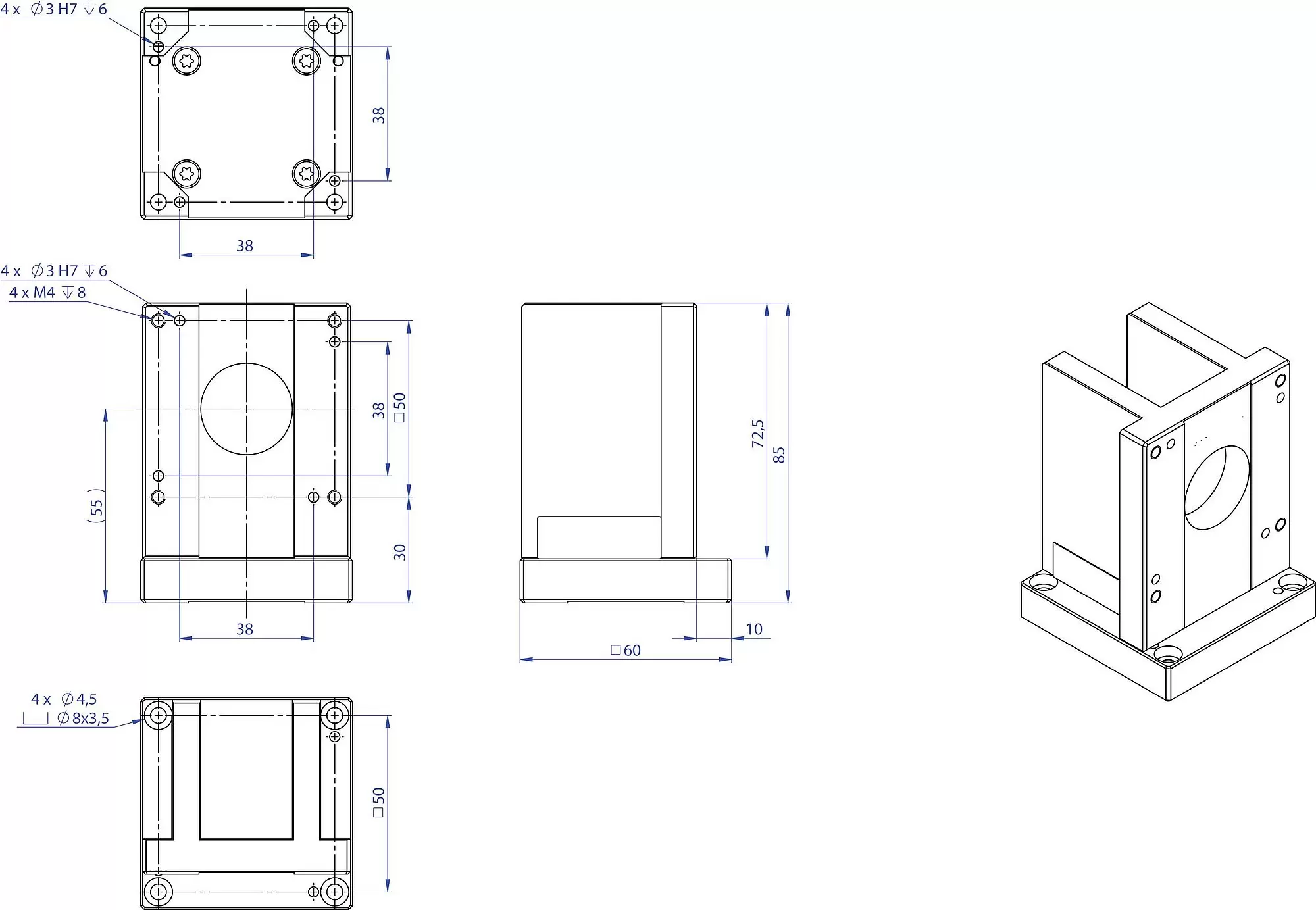

L-836.AP1, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

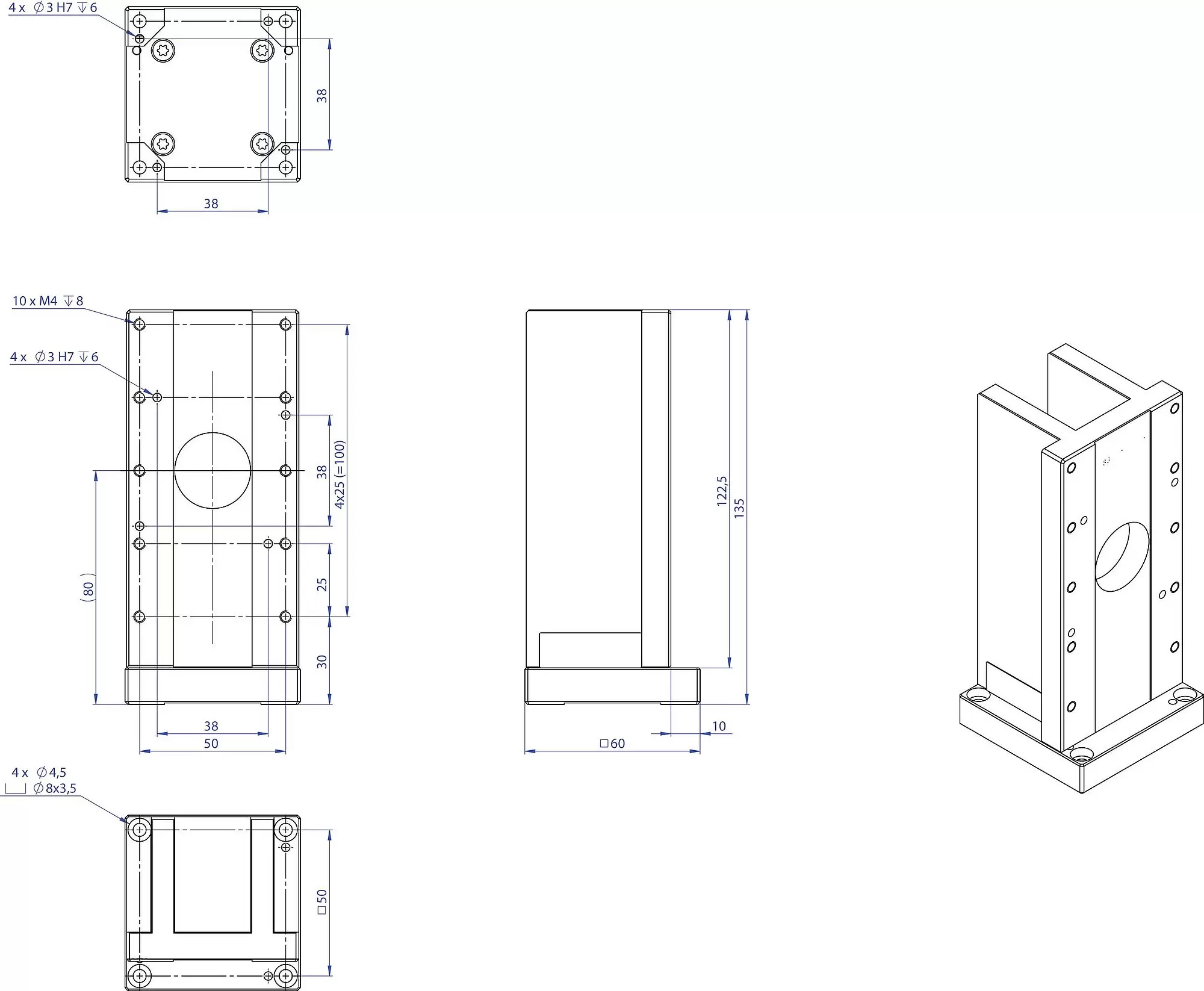

L-836.AP2, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

L-836.AP3, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

Specifications Downloads Quote/Order

	L-836.AP1	L-836.AP2	L-836.AP3
Material	Anodized aluminum alloy	Anodized aluminum alloy	Anodized aluminum alloy
Overall mass	500 g	340 g	510 g

3D Models

3D model L-836.APx

Version / Date

2021-07-26
zip - 437 KB

Add to List Remove from List

3D Models

Datasheet L-836.APx

Version / Date

2022-05-02
pdf - 2 MB

Download

L-836.AP1

Adapter bracket for vertical mounting of L-8x6 and V-8x6 stages, length 85 mm, incl. mounting kit

Add to Quote List Remove from Quote List

L-836.AP2

Adapter bracket for vertical mounting of L-8x6 and V-8x6 stages, length 135 mm, incl. mounting kit

Add to Quote List Remove from Quote List

L-836.AP3

Adapter bracket for vertical mounting of L-8x6 and V-8x6 stages, length 197.5 mm, incl. mounting kit

Add to Quote List Remove from Quote List

Related Products

XYZ assembly consisting of three L-505.023212F linear stages and L-505.AP1 adapter bracket

L-505.APx Adapter Bracket For Mounting L-505 Linear Stages Vertically

AB-65 L (61009075) and AB-65 XL (61009076)

AB-65 Adapter Bracket For Vertical Mounting of Linear and Rotation Stages

Q-121 Adapter Brackets and Adapter Plate For Mounting Q-521 Miniature Linear Stages

Q-145 Adapter Bracket For Vertical Mounting of Q-545 Linear Stages

M-592.10 Z-Axis Mounting Bracket For Vertical Mount of M-511, M-521 and M-531 Stages

M-413.AP2 Adapter Bracket For Vertical Mount of M-413/M-414 on M-413/M-414 Stages

M-403.AP2 Adapter Bracket For Vertical Mount of M-403/M-404 on M-403/M-404 Stages

M-122.AP1 Mounting Bracket For Vertical Mount of M-122 on M-110, M-111, M-112 and M-122 Stages

M-110.02 • M-110.03 • M-110.04 Z-Axis Mounting Bracket For Vertical Mount of M-110, M-111 and M-112 Series Stages

M-105.VB1 Z-Axis Mounting Bracket For vertical Mount of M-105/M-106 Stages on M-105/M-106 Stages

M-009.30 Z-Axis Adapter Plate For Vertical Mount of M-105/6 Stages on Stages with PI Standard Hole Pattern

M-009.20 Mounting Bracket For Mounting P-280 PZT Block Actuators or F-010 Fiber Holders

M-009.10 Z-Axis Mounting Bracket For Vertical Mount of M-105/106 Stages on M-105/106 Stages

L-500 Adapter Bracket For Vertical Mounting of Linear and Rotation Stages
