Products PI - Sensors, Components & Accessories Adapter Brackets
Q-145 Adapter Bracket
For Vertical Mounting of Q-545 Linear Stages
  • For vertical mounting
  • For axes with 13 to 26 mm travel ranges
  • UHV version without anodization

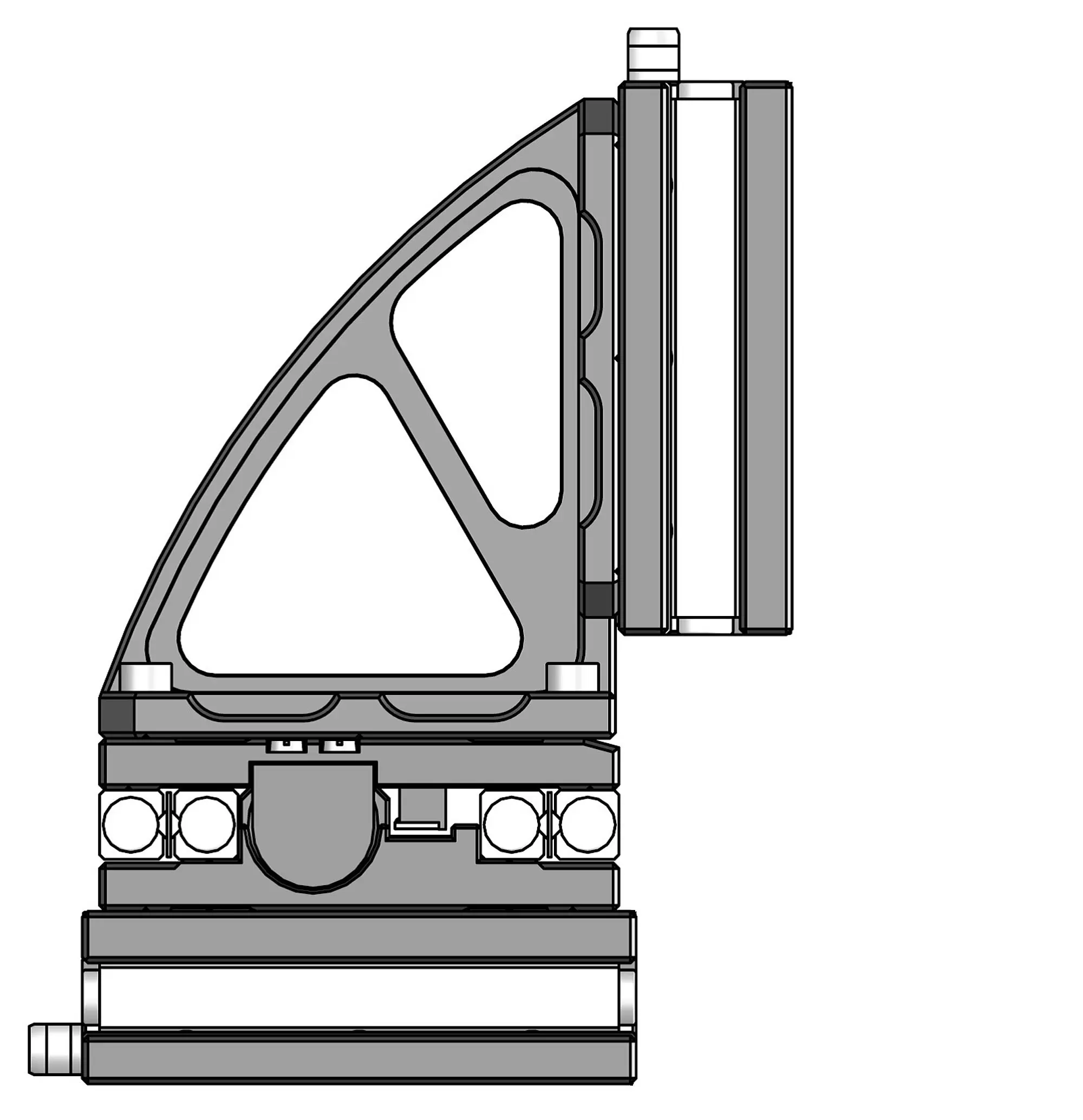

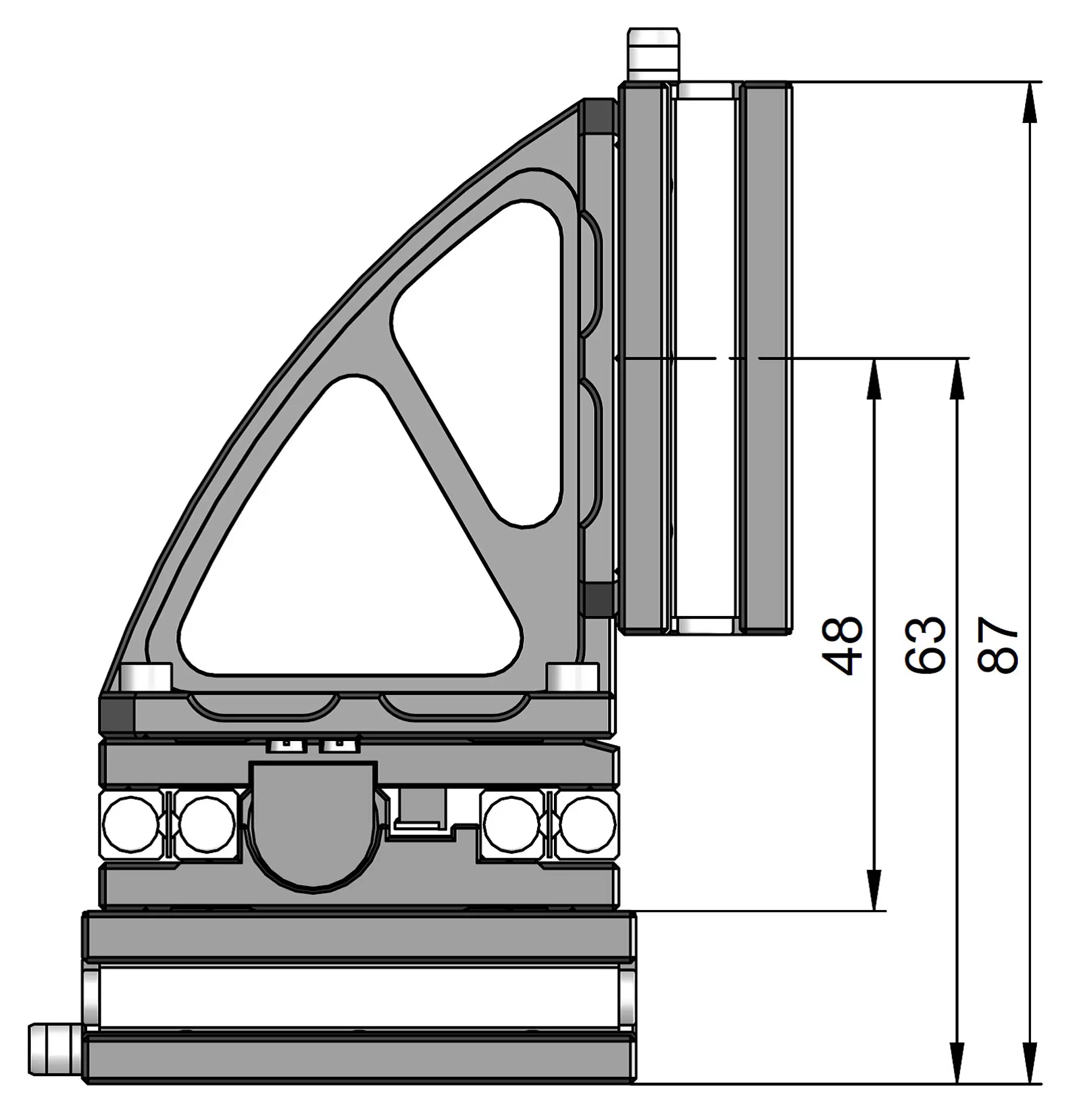

Q-145.1xxx, dimensions in mm
Q-145.1xxx, dimensions in mm

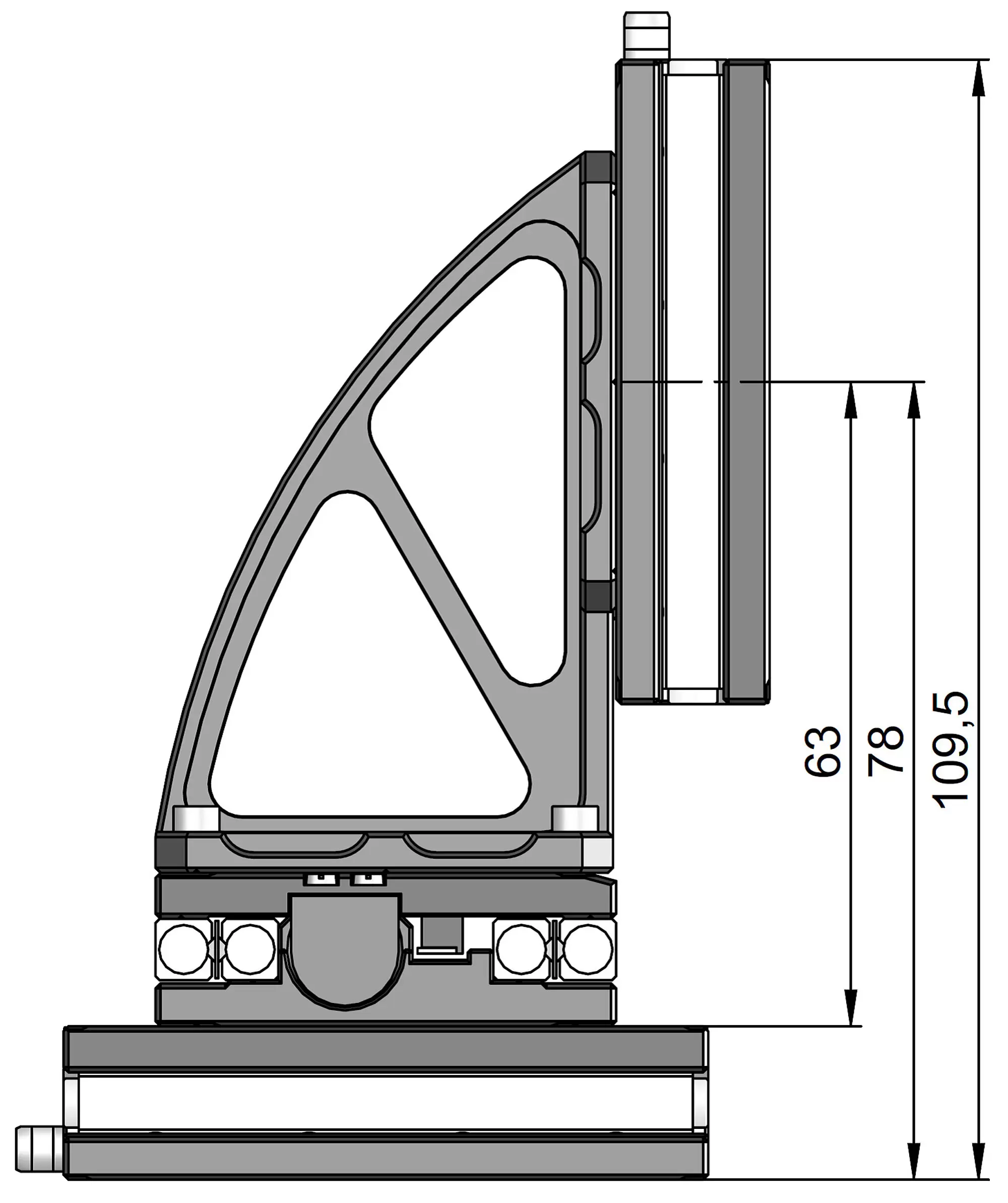

Q-145.2xx, dimensions in mm
Q-145.2xx, dimensions in mm
DownloadsQuote/Order
3D Models
3D Models
Q-145 3-D model
Version / Date

zip - 597 KB
Add to List Remove from List
Datasheet
Datasheet
Datasheet Q-145
Version / Date
2018-04-11
pdf - 283 KB
Download
Q-145.1001
Adapter bracket for vertical mounting of Q-545 linear stages with 13 mm travel range
Add to Quote List Remove from Quote List
Q-145.10U1
Adapter bracket for vertical mounting of Q-545 linear stages with 13 mm travel range, vacuum compatible to 10-9 hPa
Add to Quote List Remove from Quote List
Q-145.200
Adapter bracket for vertical mounting of Q-545 linear stages with 26 mm travel range
Add to Quote List Remove from Quote List
Q-145.20U
Adapter bracket for vertical mounting of Q-545 linear stages with 26 mm travel range, vacuum compatible to 10-9 hPa
Add to Quote List Remove from Quote List
Related Products
L-836.AP1 L-836.APx Adapter Bracket For Mounting L-8x6 / V-8x6 Vertically
XYZ assembly consisting of three L-505.023212F linear stages and L-505.AP1 adapter bracket L-505.APx Adapter Bracket For Mounting L-505 Linear Stages Vertically
AB-65 L (61009075) and AB-65 XL (61009076) AB-65 Adapter Bracket For Vertical Mounting of Linear and Rotation Stages
Q-121 Adapter Brackets and Adapter Plate For Mounting Q-521 Miniature Linear Stages
M-592.10 Z-Axis Mounting Bracket For Vertical Mount of M-511, M-521 and M-531 Stages
M-413.AP2 Adapter Bracket For Vertical Mount of M-413/M-414 on M-413/M-414 Stages
M-403.AP2 Adapter Bracket For Vertical Mount of M-403/M-404 on M-403/M-404 Stages
M-122.AP1 Mounting Bracket For Vertical Mount of M-122 on M-110, M-111, M-112 and M-122 Stages
M-110.02 • M-110.03 • M-110.04 Z-Axis Mounting Bracket For Vertical Mount of M-110, M-111 and M-112 Series Stages
M-105.VB1 Z-Axis Mounting Bracket For vertical Mount of M-105/M-106 Stages on M-105/M-106 Stages
M-009.30 Z-Axis Adapter Plate For Vertical Mount of M-105/6 Stages on Stages with PI Standard Hole Pattern
M-009.20 Mounting Bracket For Mounting P-280 PZT Block Actuators or F-010 Fiber Holders
M-009.10 Z-Axis Mounting Bracket For Vertical Mount of M-105/106 Stages on M-105/106 Stages
L-500.AV1 and L-500.AV3 L-500 Adapter Bracket For Vertical Mounting of Linear and Rotation Stages
