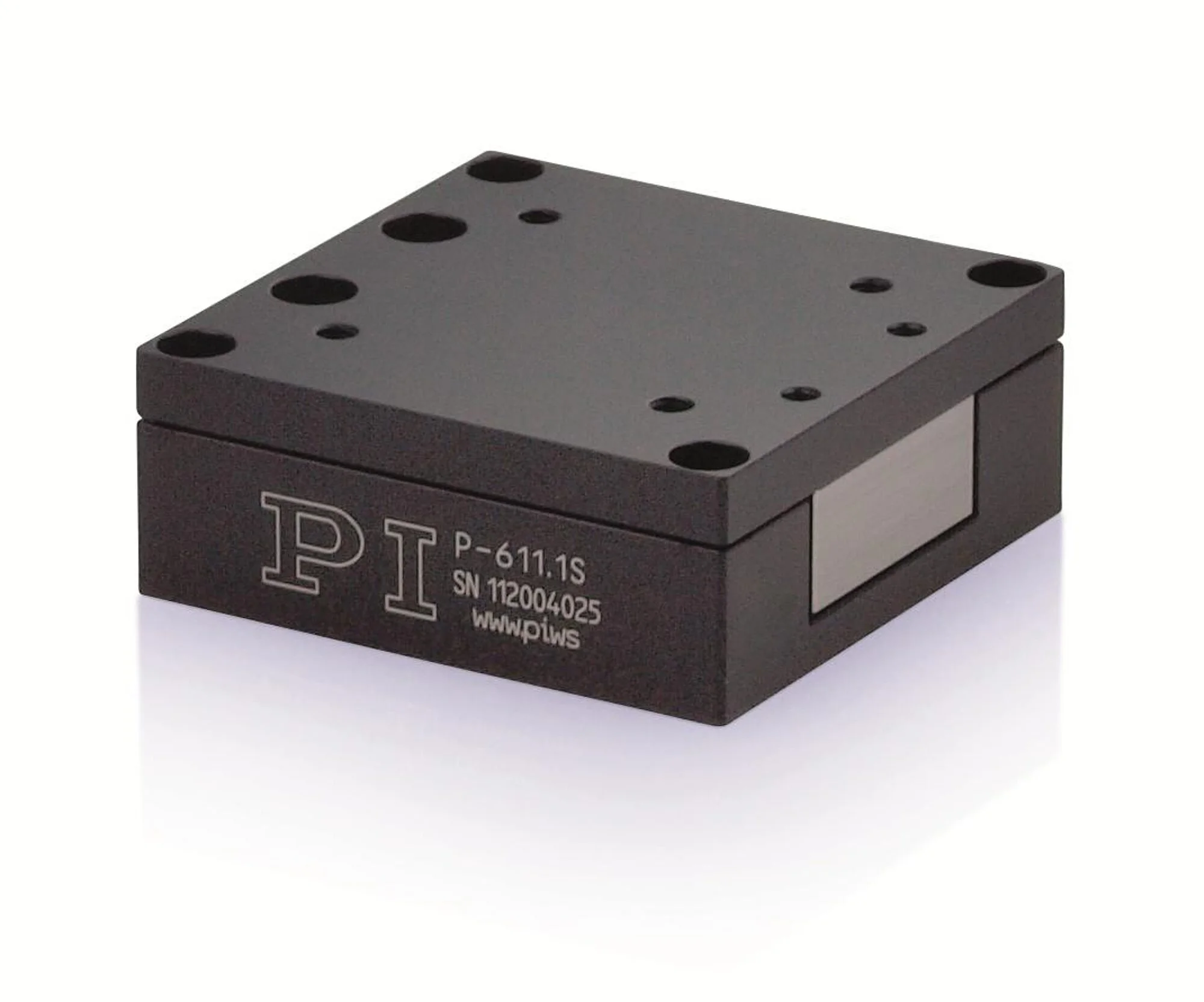

P-611.1 Linear Piezo Positioner

Inexpensive, Compact Linear Stage

Compact design: Surface 44 mm × 44 mm
Travel range 120 µm
Resolution to 0.2 nm
Particularly inexpensive systems (mechanics and controller)
Outstanding lifetime thanks to PICMA® piezo actuators
Also available as Z stage, and as XY, XZ, and XYZ version

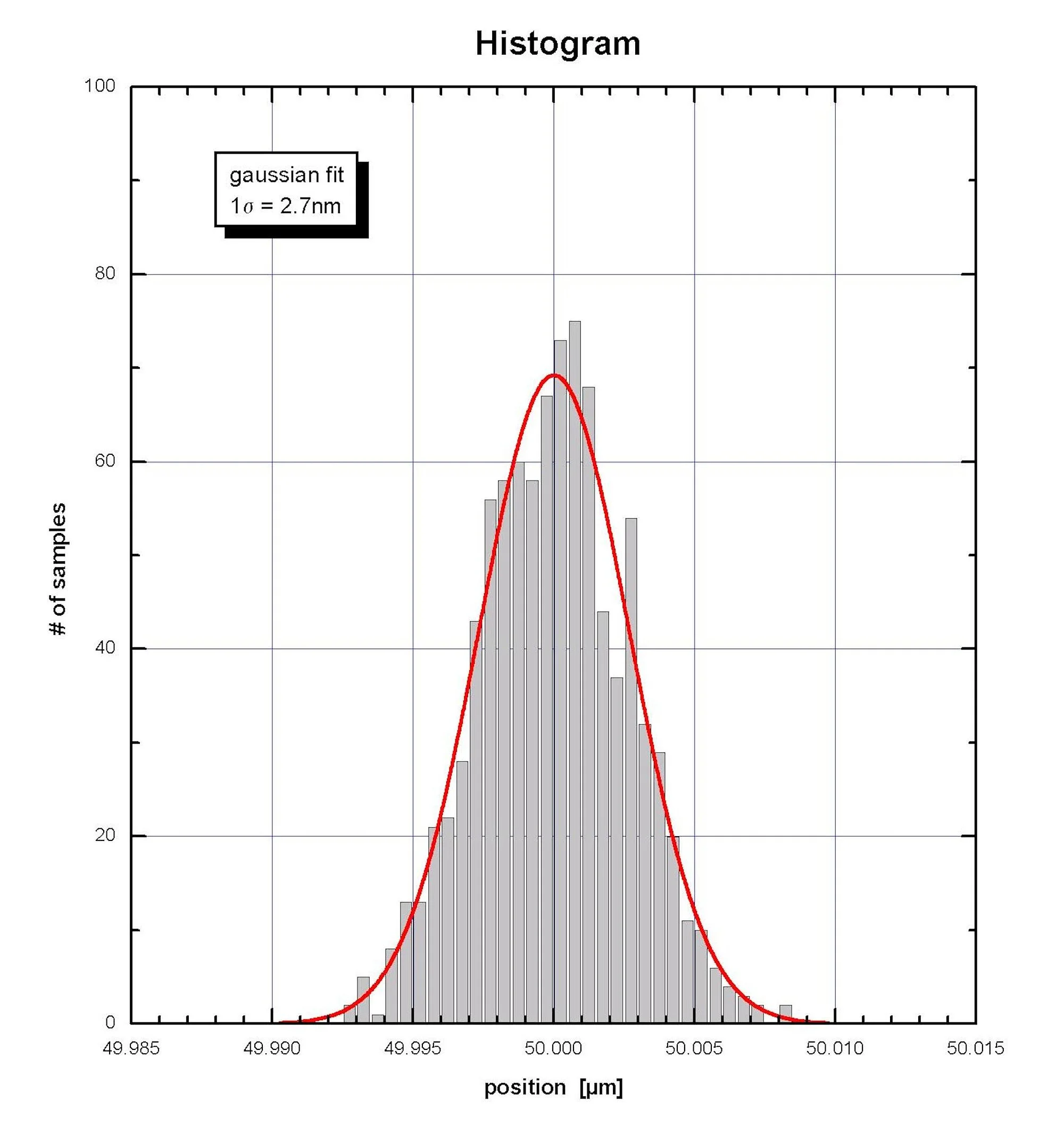

The repeatability of the P-611.1S is 2.7 nm.

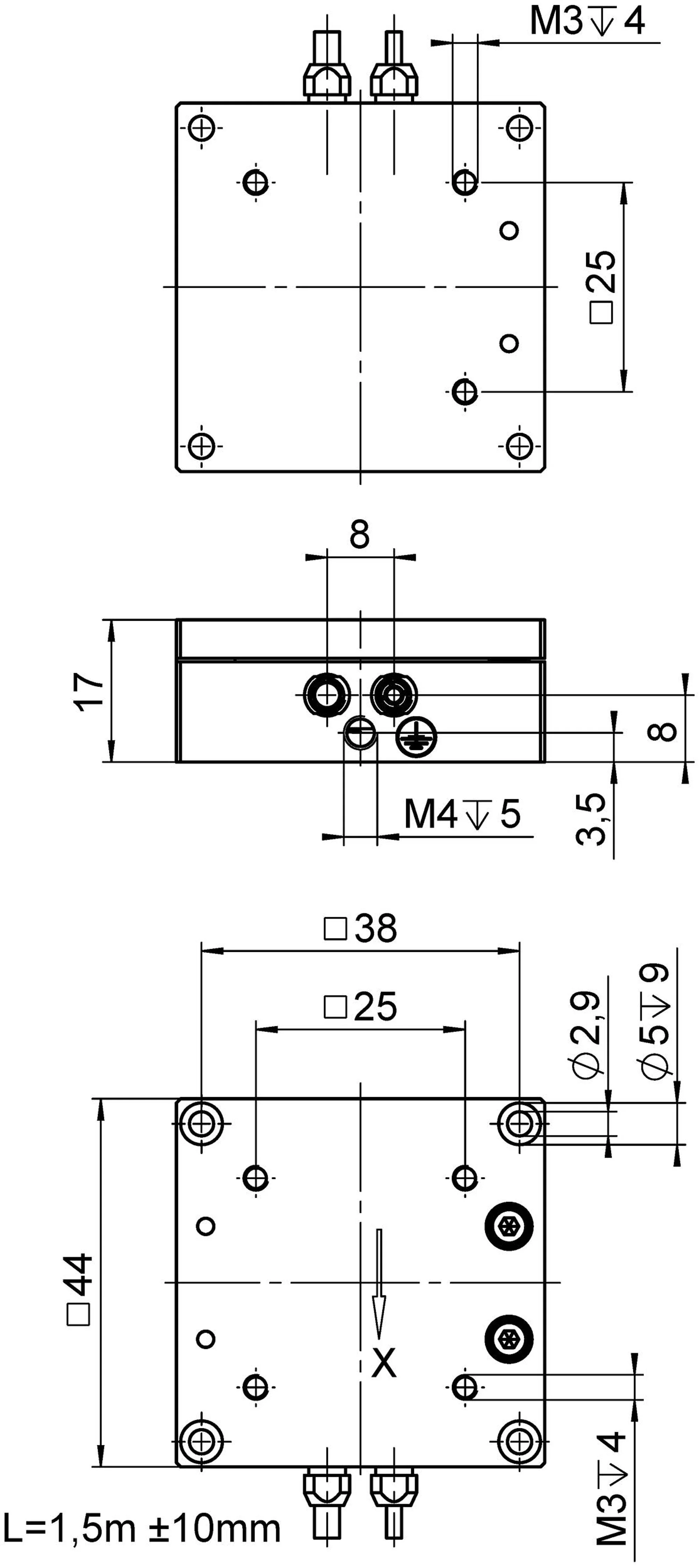

P-611.1S, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

Product Description Description Specifications Downloads Quote/Order

Application fields

Microscopy
Nanopositioning
Biotechnology
Test applications
Semiconductor technology
Photonics
Fiber positioning

Outstanding lifetime due to PICMA® piezo actuators

The patented PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.

Motion	P-611.10	P-611.1S	Tolerance
Active axes	X	X
Travel range in X, open loop, at -20 to 120 V	120 µm	120 µm	+20 / -0 %
Flatness (Linear crosstalk in Z with motion in X)	10 nm	10 nm	typ.
Pitch (Rotational crosstalk in θY with motion in X)	± 5 µrad	± 5 µrad	typ.
Yaw (Rotational crosstalk in θZ with motion in X)	± 20 µrad	± 20 µrad	typ.
Travel range in X		100 µm
Linearity error in X		0.1 %	typ.
Positioning	P-611.10	P-611.1S	Tolerance
Repeatability in X	< 10 nm	< 10 nm	typ.
Resolution in X, open loop	0.2 nm	0.2 nm	typ.
Integrated sensor		SGS, indirect position measuring
System resolution in X		2 nm
Drive Properties	P-611.10	P-611.1S	Tolerance
Drive type	PICMA®	PICMA®
Electrical capacitance in X	1.5 µF	1.5 µF	±20 %
Mechanical Properties	P-611.10	P-611.1S	Tolerance
Guide	Flexure guide with lever amplification	Flexure guide with lever amplification
Stiffness in X	0.2 N/µm	0.2 N/µm	±20 %
Resonant frequency in X, unloaded	400 Hz	400 Hz	±20 %
Resonant frequency in X, under load with 30 g	300 Hz	300 Hz	±20 %
Resonant frequency in X, under load with 100 g	195 Hz	195 Hz	±20 %
Permissible push force in X	15 N	15 N	max.
Permissible push force in Z	15 N	15 N	max.
Permissible pull force in X	10 N	10 N	max.
Overall mass	135 g	135 g	±5 %
Material	Aluminum, steel	Aluminum, steel
Miscellaneous	P-611.10	P-611.1S	Tolerance
Operating temperature range	-20 to 80 °C	-20 to 80 °C
Connector	LEMO FFS.00.250.CTCE24	LEMO FFS.00.250.CTCE24
Cable length	1.5 m	1.5 m	±10 mm
Recommended controllers / drivers	E-503, E-505, E-610, E-621, E-625, E-665, E-836	E-503, E-505, E-610, E-621, E-625, E-665, E-836
Sensor connector		LEMO FFA.0S.304.CLAC32

3D Models

P-611.1x 3-D model

Version / Date

zip - 100 KB

Add to List Remove from List

Documentation

Short Instructions PZ240

Piezo Positioning Systems: P-5xx / P-6xx / P-7xx

Version / Date

6.1.0 10/2019
pdf - 1 MB

Download

Documentation

User Manual PZ253

P-611 Nanopositioning Systems with Strain Gauge Sensors / without Sensor

Version / Date

1.2.2 2022-08-24
pdf - 3 MB

Add to List Remove from List

Documentation

Unpacking Instructions P611T0006

Unpacking and Handling of P-611 Positioners

Version / Date

2018-01-24
pdf - 768 KB

Add to List Remove from List

Documentation

Datasheet P-611.1

Version / Date

2023-05-03
pdf - 608 KB

Download

Product Note

Product Change Notification Piezo Actuator Driven Products

Version / Date

2021-04-19
pdf - 377 KB

Download

P-611.10

Linear piezo positioner; 120 µm travel range (open loop); LEMO connector; 1.5 m cable length

Add to Quote List Remove from Quote List

P-611.1S

Linear piezo positioner; 100 µm travel range; SGS, indirect position measuring; LEMO connectors; 1.5 m cable length
