M-545 Microscope XY Stage

Compact, Stable, Long Travel Range

Stable platform for P-545 PInano® piezo nanopositioning systems
Low profile for easy integration: 30 mm
Travel range 25 mm × 25 mm
Manual operation with micrometer screws, optional motorization
For inverted microscopes from Nikon, Zeiss, Leica, and Olympus

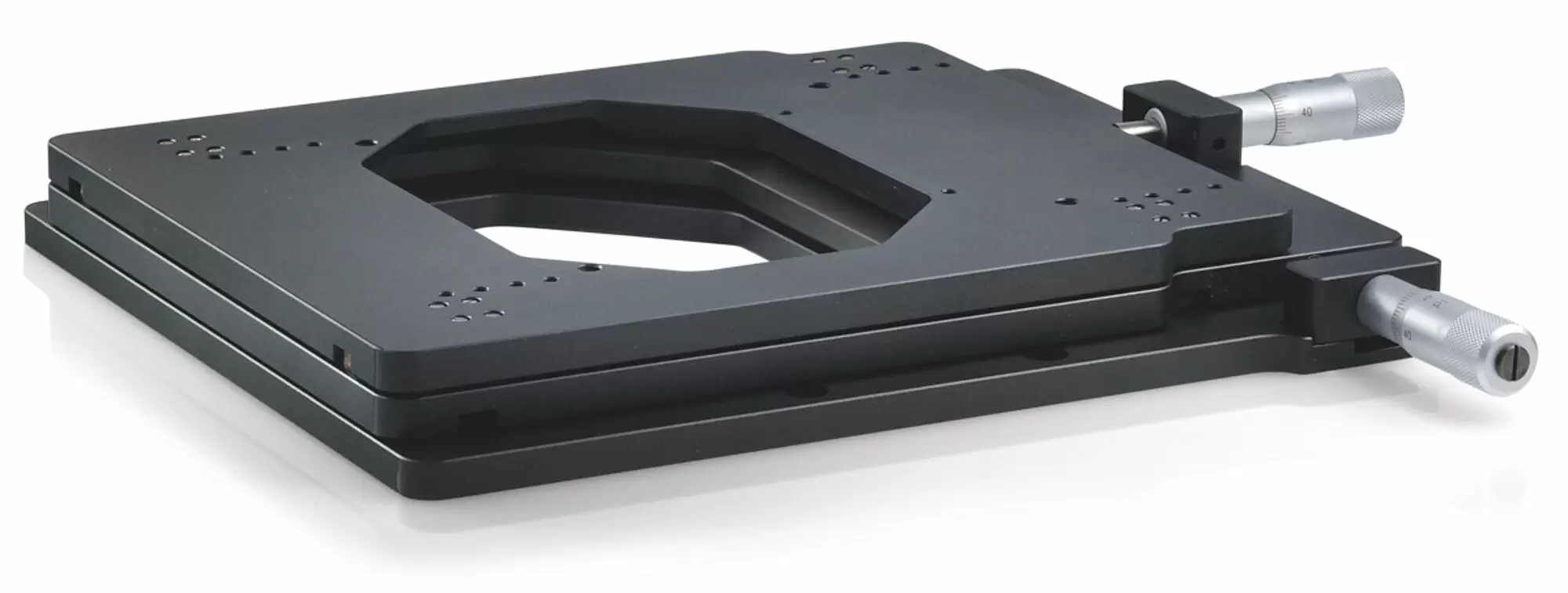

M-545 microscope XY stage

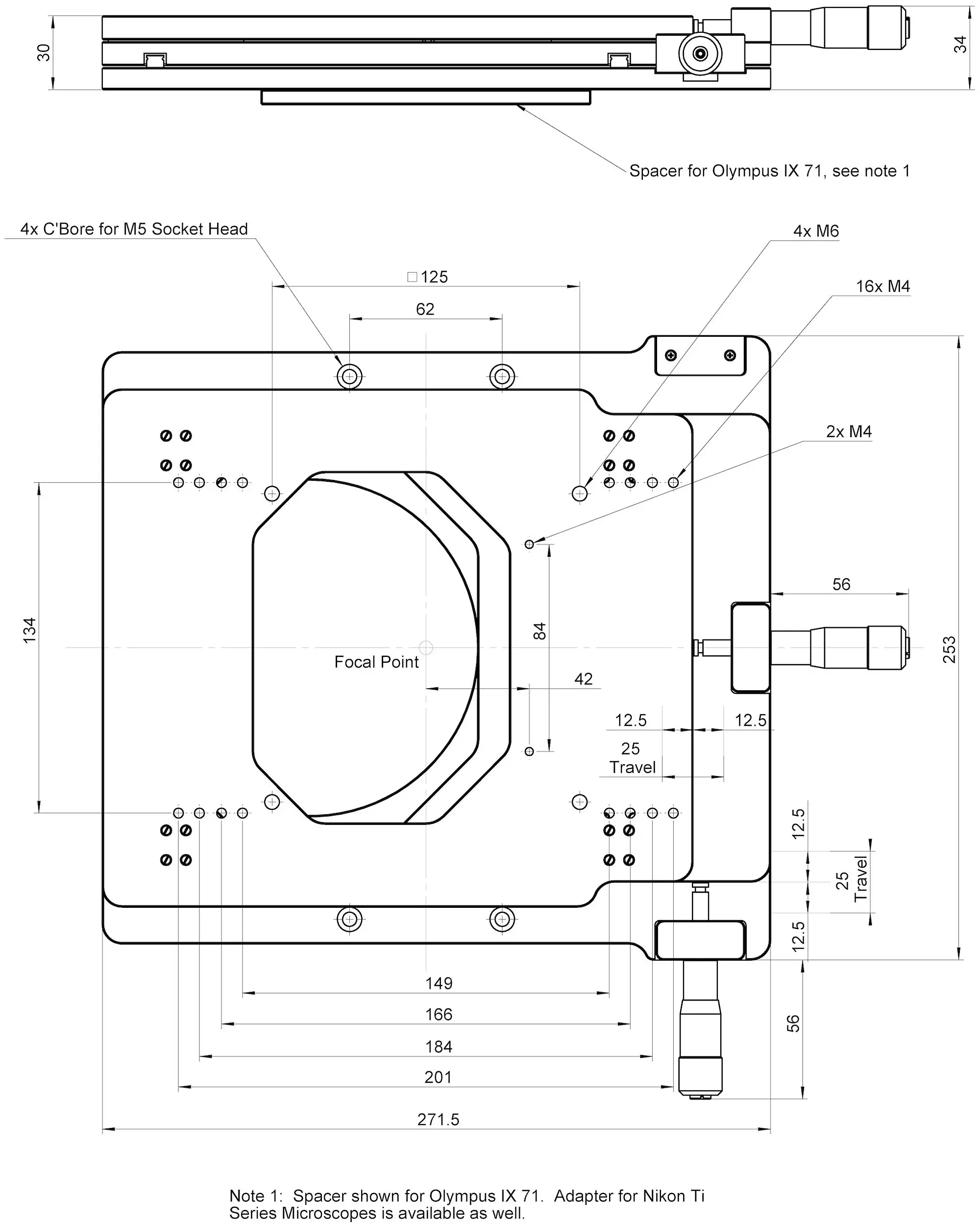

M-545.2MO and M-545.2MN: dimensions in mm. Delivery includes holders for Olympus respectively Nikon microscopes.

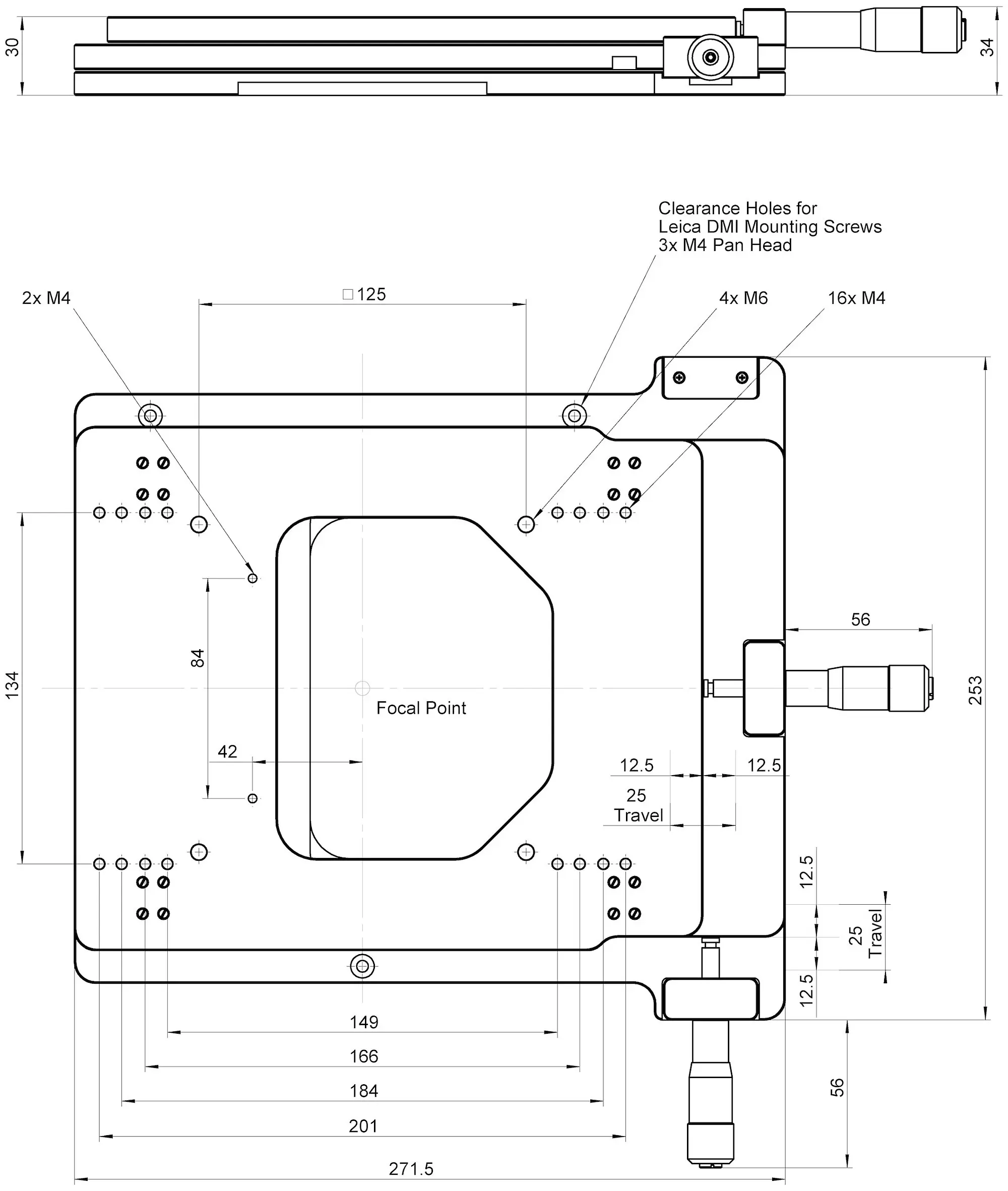

M-545.2ML: dimensions in mm

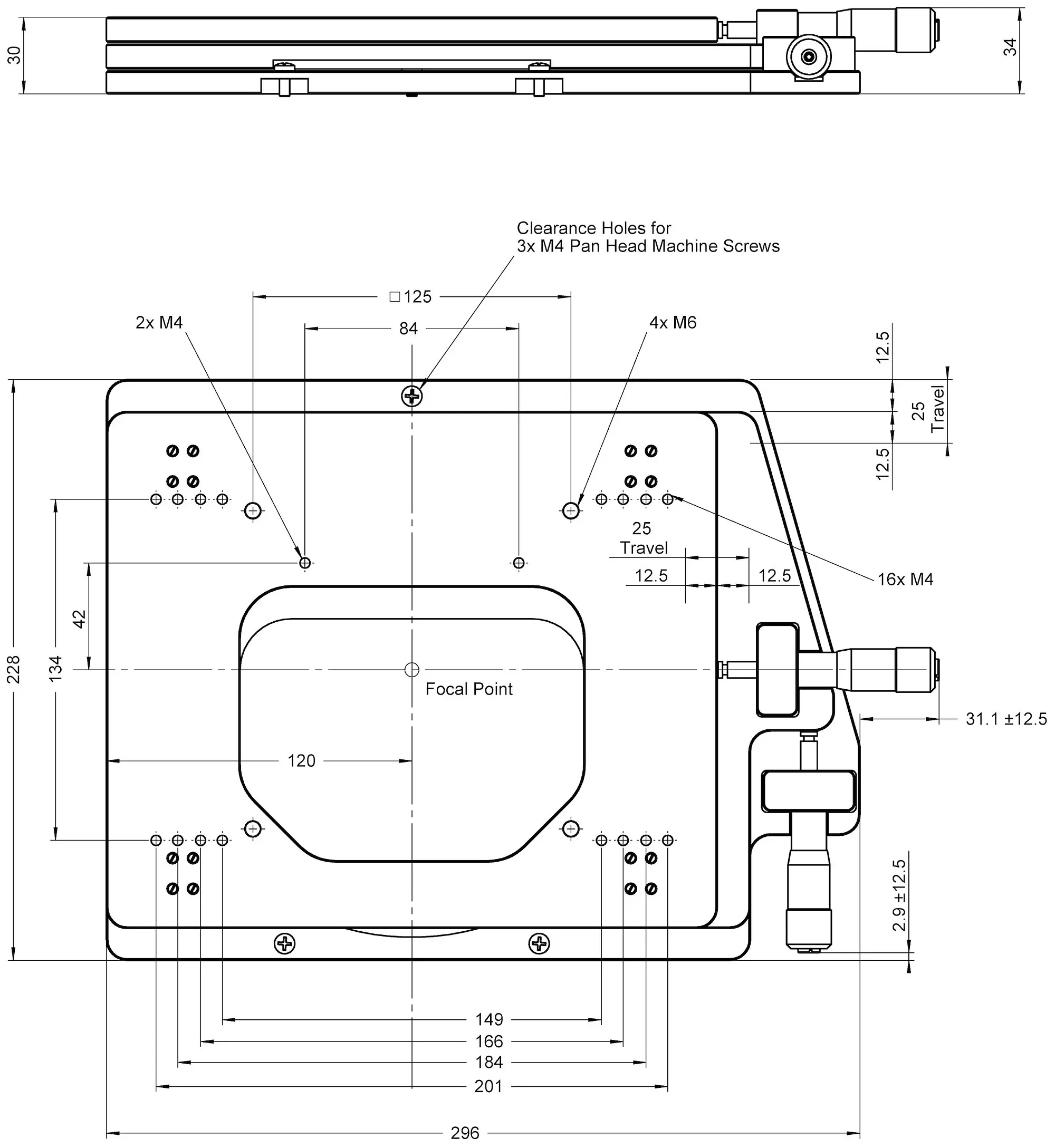

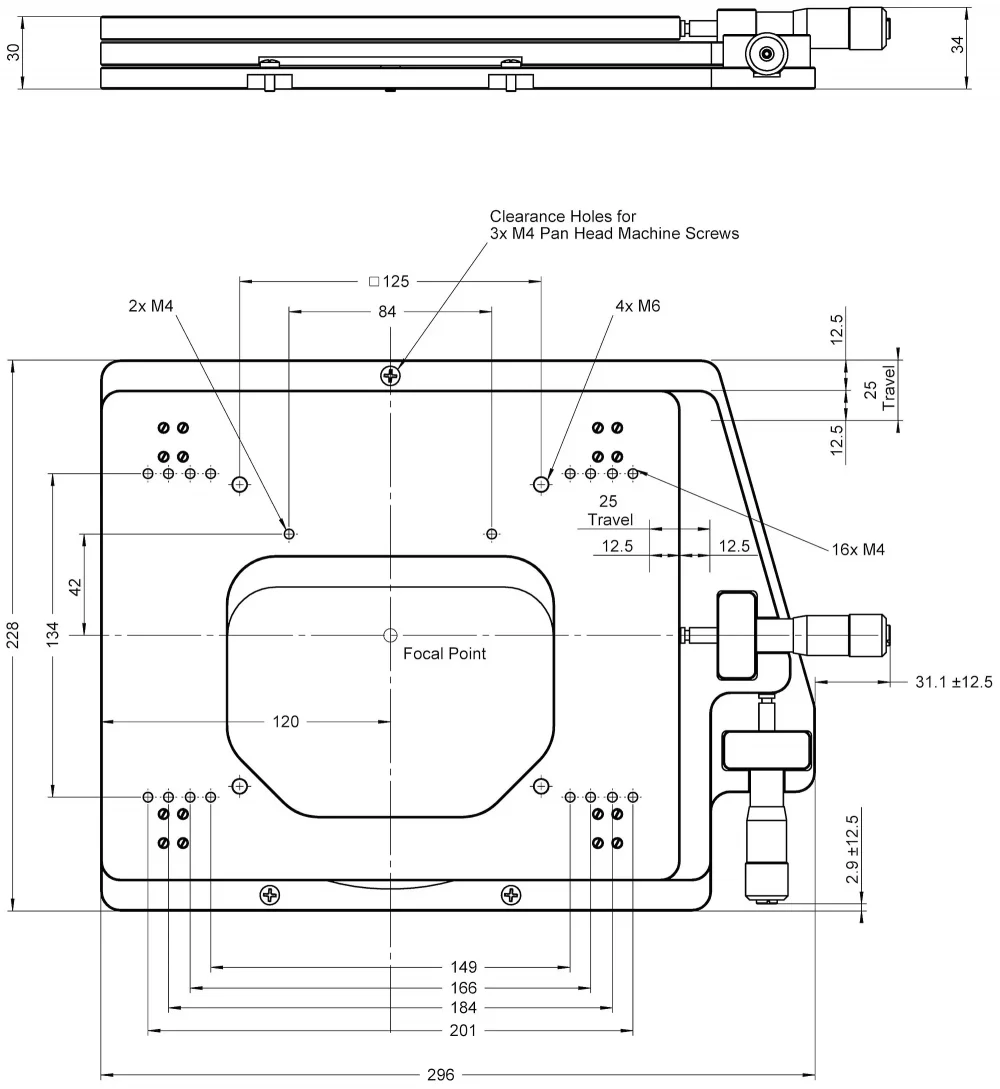

M-545.2MZ: dimensions in mm

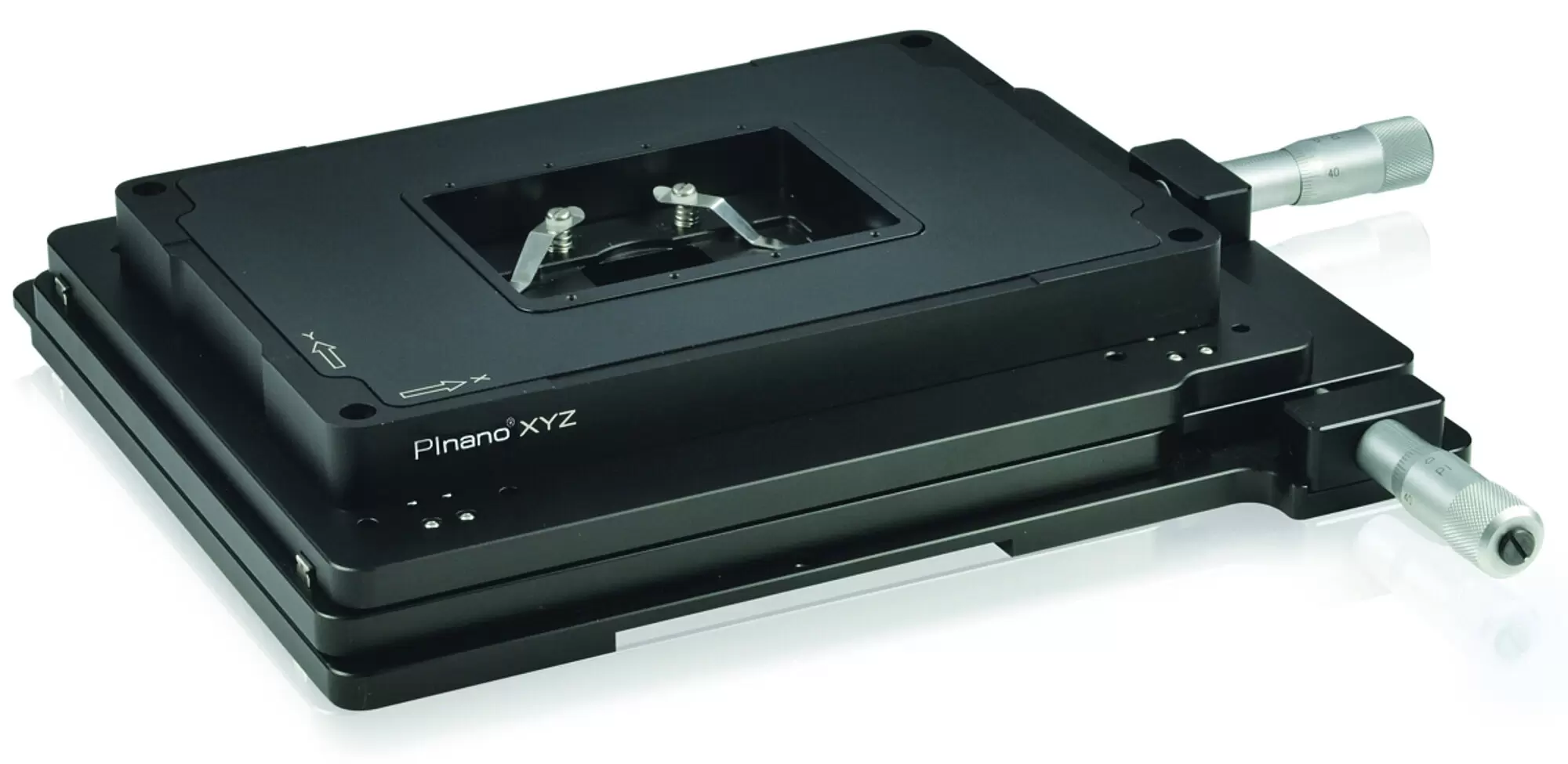

P-545 PInano® piezo positioner on M-545 XY stage

Product Description Description Specifications Downloads Quote/Order

Standard-class, manual microscope XY stage

Rough adjusting for piezo nanopositioners from PI as well as manual positioning of specimen holders. Supports optimum scanning and settling behavior.

Suitable for microscopes from a large number of manufacturers

For inverted microscopes from Nikon (TI), Zeiss (Axio Observer), Leica (DMI), and Olympus (IX2, IX3). Versions for other microscopes on request.

Micrometer screw or stepper motor drive

The M-545 XY stage can also be equipped with drives from the M-229 series (all models except M-545.2MZ). Complete packages with two stepper motor drives, matching controller, and joystick, are available under the product numbers M-545.USG respectively M-545.USC.

Can be combined with numerous PI nanopositioners

It is possible to mount piezo nanopositioners from the P-545 PInano® and P-541 / P-542 series onto the platform of the M-545. Adapter plates from PI are available for combining with other piezo nanopositioners.

	M-545.2M	Unit	Tolerance
Active axes	X, Y
Motion and positioning
Travel range	25 mm × 25 mm
Minimum incremental motion	1	µm	typ.
Minimum incremental motion with M-229 linear actuators*	1	µm	typ.
Velocity with M-229 linear actuators*	1.5	mm/s	max.
Mechanical properties
Load capacity	50	N	max.
Preload	10	N
Miscellaneous
Material	Aluminum, stainless steel
Mass	4	kg	±5 %

* Optional (for all models except M-545.2MZ)

Ask about customized versions.

3D Models

M-545 3-D model

Version / Date

2020-01-15
zip - 2 MB

Add to List Remove from List

Datasheet

Datasheet M-545

Version / Date

2019-02-12
pdf - 1 MB

Download

Documentation

Short Instructions MP119EK

Positioners with Electric Motors: M-06x, M-11x, M-12x, M-4xx, M-5xx

Version / Date

3.2.0 01/2021
,pdf - 1 MB,

Download

Documentation

Installation Instructions M545T0001

M-545.USG / M-545.USC Drive Set for M-545 XY Stage

Version / Date

2020-02-10
pdf - 642 KB

Add to List Remove from List

Documentation

User Manual PZA02

M-545 Series Microscope Stages

Version / Date

3.2.0 2020-03-04
pdf - 3 MB

Add to List Remove from List

Brochures

Microscope Stage Configurator

Sample Stages and Holders for Inverted Microscopes

Version / Date

BRO70E R3D
pdf - 4 MB

Download

M-545.2MO

XY stage, 25 mm × 25 mm, micrometer screw, high stability, compatible with PI piezo stages, for Olympus microscopes (IX2, IX3)

Add to Quote List Remove from Quote List

M-545.2MN

XY stage, 25 mm × 25 mm, micrometer screw, high stability, compatible with PI piezo stages, for Nikon microscopes (TI series)

Add to Quote List Remove from Quote List

M-545.2ML

XY stage, 25 mm × 25 mm, micrometer screw, high stability, compatible with PI piezo stages, for Leica microscopes (DMI series)

Add to Quote List Remove from Quote List

M-545.2MZ

XY stage, 25 mm × 25 mm, micrometer screw, high stability, compatible with PI piezo stages, for Zeiss microscopes (Axio Observer)
