Products PI - XY Stages XY & XYZ Sample Stages for Microscopy
U-780 PILine® XY Stage System with Controller and Joystick
Stable, Dynamic, Low Profile
  • High velocity constancy at 10 µm/s
  • Velocity to 120 mm/s, resolution 0.1 µm
  • Travel ranges to 135 mm × 85 mm (depending on model type)
  • For inverted microscopes, freely revolving nosepiece
  • Compact, low-profile design: Unrestricted access to the sample
  • Extensive accessories

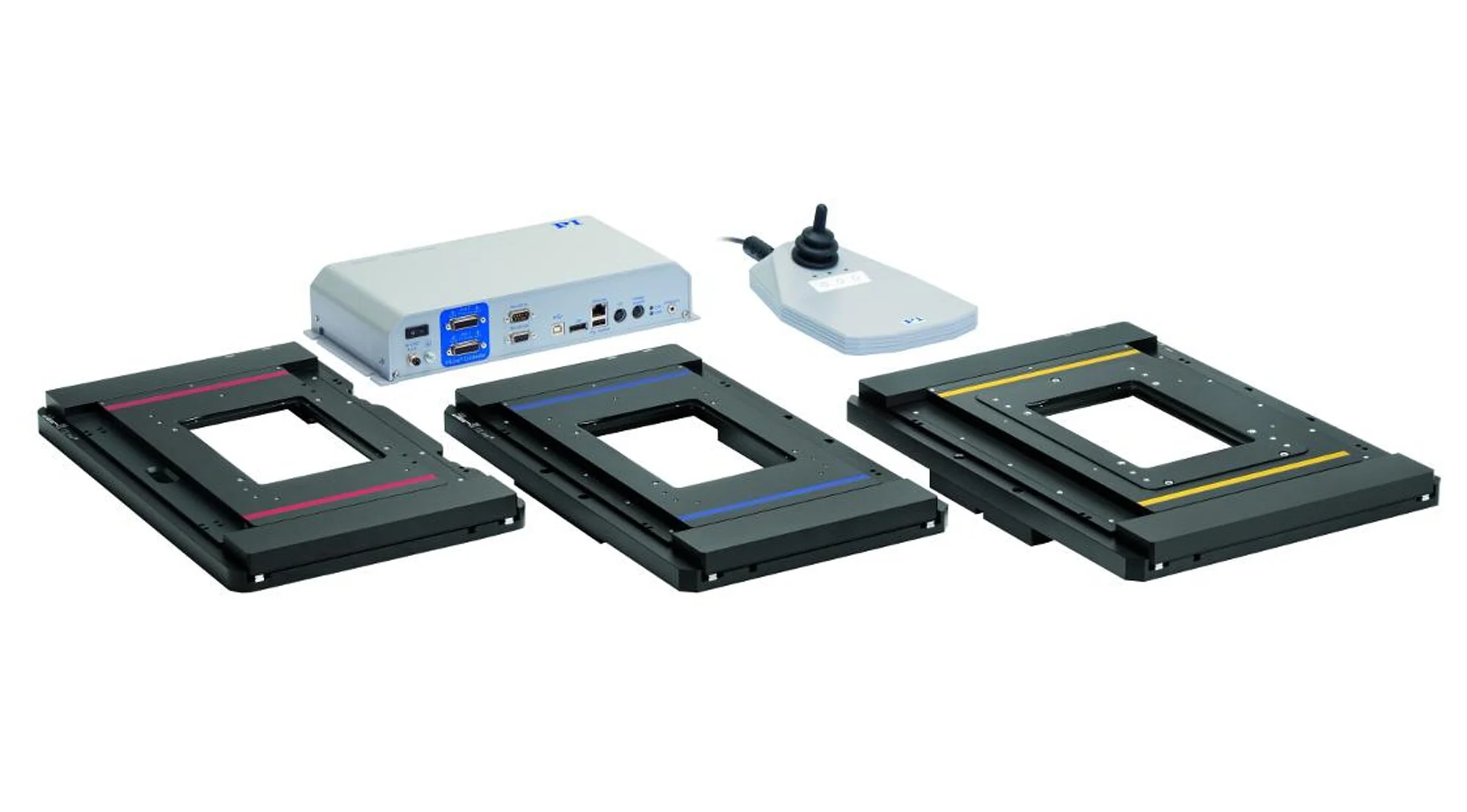

U-780 high stability XY Microscope stages are available for microscopes of leading manufacturers. A 2-axis motion controller with joystick and software are included
U-780 high stability XY Microscope stages are available for microscopes of leading manufacturers. A 2-axis motion controller with joystick and software are included
M-687.UL microscopy XY stage for Leica microscopes, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.
M-687.UL microscopy XY stage for Leica microscopes, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

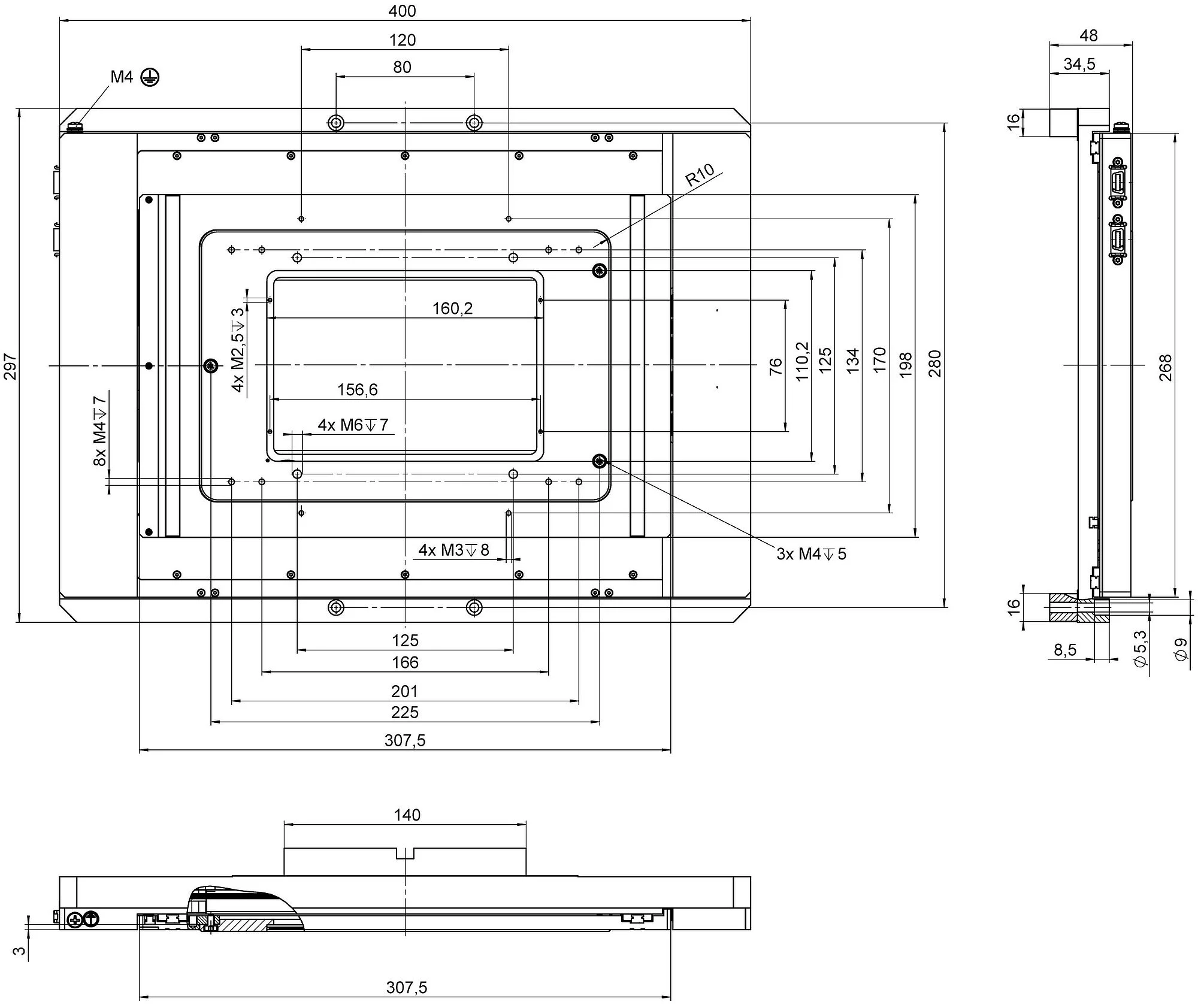

M-687.UN microscopy XY stage for Nikon microscopes, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.
M-687.UN microscopy XY stage for Nikon microscopes, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

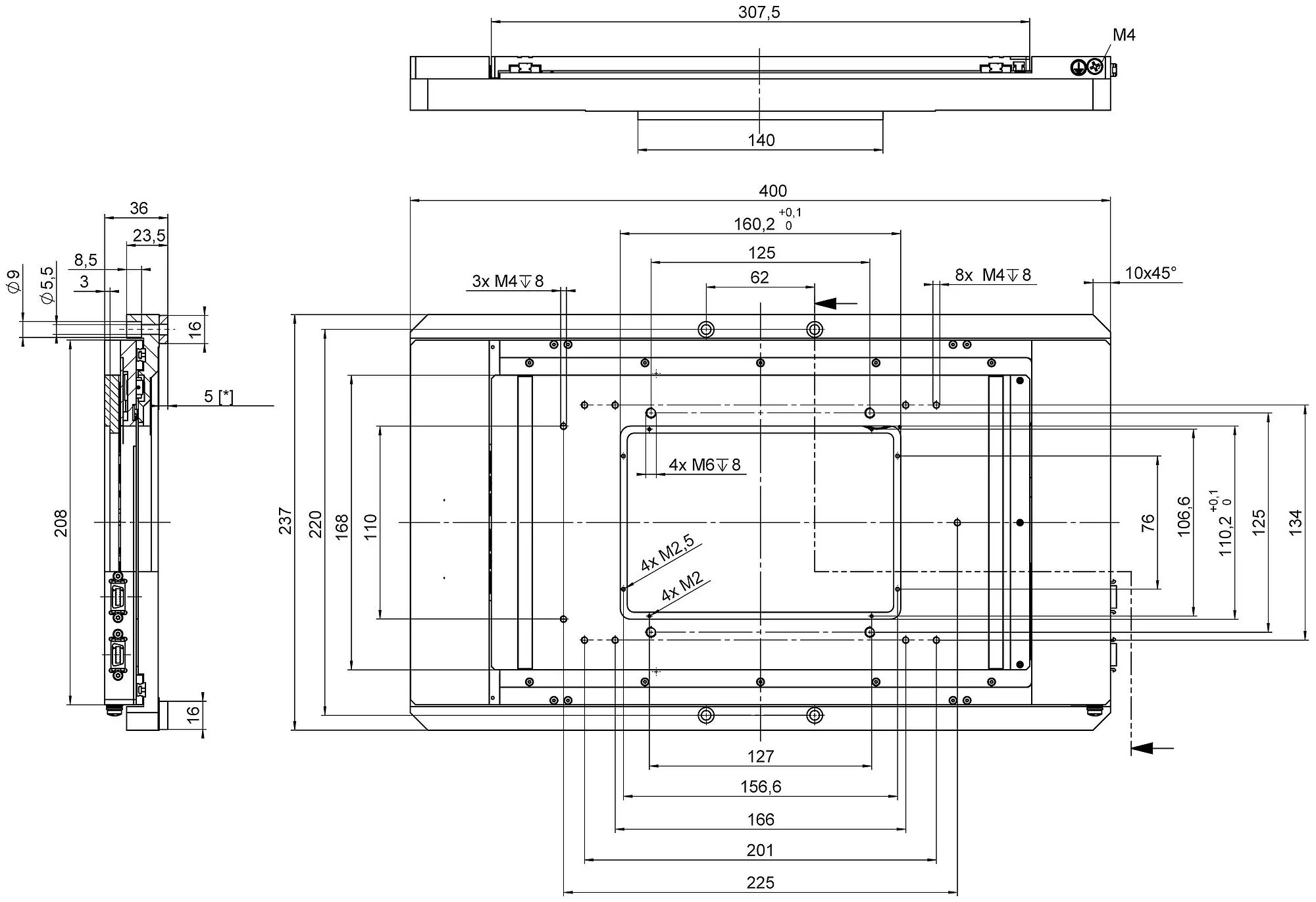

M-687.UO microscopy XY stage for Olympus microscopes, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.
M-687.UO microscopy XY stage for Olympus microscopes, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.
Product DescriptionDescriptionSpecificationsDownloadsQuote/Order

Reference-class microscope XY stage

System consisting of M-687 XY stage, controller, USB joystick, and appropriate cables. Large clear aperture 160 mm × 110 mm.

Accessories necessary: Sample holder, fine positioning stages, and Z stages

You will find matching fine positioning stages (X / Y / Z / ΘX / ΘY / ΘZ), sample holders (microscope slide, holder for Petri dishes, and microtiter plates), as well as any adapter plates necessary in our "Microscope Stage Configurator" brochure.

Suitable for the following inverted microscopes:

  • Nikon Eclipse Ti / Ti2
  • Olympus IX / IX2 / IX3
  • Leica DMI6000 / DMI8

High-resolution PILine® piezo linear drive

Self-locking at rest. Low noise. Highest stability due to low thermal load and no lubricants. Large dynamics range of 10 µm/s to 120 mm/s, ideal for operating with joystick and automated high-content processes.

Highly accurate position measuring with incremental linear encoder

Noncontact optical encoders measure the actual position directly at the motion platforms with the greatest accuracy so that nonlinearity, mechanical play or elastic deformation have no influence on position measuring.

User software

PIMikroMove. PI General Command Set (GCS). Drivers for NI LabVIEW. Compatible with µManager, MetaMorph, Andor iQ, MATLAB.

Application fields

For inverted microscopes from Nikon, Olympus and Leica, versions for other microscopes available on request. For super resolution microscopy, tiling, automated scanning microscopy.

Motion U-780.DLS U-780.DNS U-780.DOS Tolerance
Active axes X Y X Y X Y
Travel range in X 135 mm 135 mm 100 mm
Travel range in Y 85 mm 85 mm 75 mm
Maximum velocity in X, unloaded 120 mm/s 120 mm/s 120 mm/s
Maximum velocity in Y, unloaded 120 mm/s 120 mm/s 120 mm/s
Pitch (Rotational crosstalk in θX with motion in Y) ± 300 µrad ± 300 µrad ± 300 µrad typ.
Pitch (Rotational crosstalk in θY with motion in X) ± 300 µrad ± 300 µrad ± 300 µrad typ.
Yaw (Rotational crosstalk in θZ with motion in X) ± 300 µrad ± 300 µrad ± 300 µrad typ.
Yaw (Rotational crosstalk in θZ with motion in Y) ± 300 µrad ± 300 µrad ± 300 µrad typ.
Positioning U-780.DLS U-780.DNS U-780.DOS Tolerance
Bidirectional repeatability in X 0.6 µm 0.6 µm 0.6 µm typ.
Bidirectional repeatability in Y 0.6 µm 0.6 µm 0.6 µm typ.
Reference switch Optical Optical Optical
Reference switch repeatability 1 µm 1 µm 1 µm
Limit switches Hall effect Hall effect Hall effect
Integrated sensor Incremental linear encoder Incremental linear encoder Incremental linear encoder
Sensor resolution 0.1 nm 0.1 nm 0.1 nm
Drive Properties U-780.DLS U-780.DNS U-780.DOS Tolerance
Drive type PILine® piezo motor, performance class 2 PILine® piezo motor, performance class 2 PILine® piezo motor, performance class 2
Mechanical Properties U-780.DLS U-780.DNS U-780.DOS Tolerance
Permissible push force in Z 25 N 25 N 25 N max.
Overall mass 4200 g 4200 g 3200 g ±5 %
Material

Aluminum (black anodized)

Aluminum (black anodized)

Aluminum (black anodized)


Miscellaneous U-780.DLS U-780.DNS U-780.DOS Tolerance
Operating temperature range 20 to 40 °C 20 to 40 °C 20 to 40 °C
Connector 2 × MDR 14-pole (f) 2 × MDR 14-pole (f) 2 × MDR 14-pole (f)
Controller U-780.DLS U-780.DNS U-780.DOS Tolerance
Controller type C-867.2U2 with USB joystick C-867.2U2 with USB joystick C-867.2U2 with USB joystick
Communication interfaces Ethernet RS-232 SPI USB Ethernet RS-232 SPI USB Ethernet RS-232 SPI USB
I/O lines 4 analog / digital inputs; 4 digital outputs to mini DIN, 9-pin; Digital: TTL; Analog: 0 to 5 V. 4 analog / digital inputs; 4 digital outputs to mini DIN, 9-pin; Digital: TTL; Analog: 0 to 5 V. 4 analog / digital inputs; 4 digital outputs to mini DIN, 9-pin; Digital: TTL; Analog: 0 to 5 V.
Command set GCS 2.0 GCS 2.0 GCS 2.0
User software PIMikroMove PIMikroMove PIMikroMove
Software drivers GCS DLL (with code examples for the most common programming languages such as C++, C#, VB.NET, Python, Delphi), driver for NI LabVIEW, MATLAB library GCS DLL (with code examples for the most common programming languages such as C++, C#, VB.NET, Python, Delphi), driver for NI LabVIEW, MATLAB library GCS DLL (with code examples for the most common programming languages such as C++, C#, VB.NET, Python, Delphi), driver for NI LabVIEW, MATLAB library
Application-related functions Data recorder Makro Startup macro Data recorder Makro Startup macro Data recorder Makro Startup macro
Controller's dimensions 312 mm × 153.4 mm × 59.3 mm (incl. mounting rails) 312 mm × 153.4 mm × 59.3 mm (incl. mounting rails) 312 mm × 153.4 mm × 59.3 mm (incl. mounting rails)
3D Models
3D Models
U-780 3-D model
Version / Date
2023-06-26
zip - 3 MB
Add to List Remove from List
Datasheet
Datasheet
Datasheet U-780
Version / Date
2023-06-26
pdf - 877 KB
Download
Documentation
Documentation
Short Instructions MP121EK
PILine® Positioners: M-67x, M-68x, U-52x, U-62x, U-651, U-7xx
Version / Date
5.3.0 02/2023
pdf - 2 MB
Download
Documentation
User Manual MS231
C-867.2U2 Piezomotor Controller / Driver, Networkable, 2 Axes, for PILine® Systems with Sub-D Connector
Version / Date
2.2.0 2023-06-19
pdf - 8 MB
Add to List Remove from List
Documentation
Short Instructions MS242EK
Digital Motor Controllers and Drivers: C-663 / C-863 / C-867 / C-877 / C-884 / E-861 / E-871 / E-872.401 / E-873
Version / Date
3.1.0 02/2021
pdf - 2 MB
Download
Documentation
User Manual MP100
M-687.UN XY Microscope Stage for Inverted Nikon Microscopes, with PILine® Linear Drives
Version / Date
1.3.0 2022-03-17
pdf - 3 MB
Add to List Remove from List
Documentation
User Manual MP107
M-687.UO XY Microscope Stage for Inverted Olympus Microscopes, with PILine® Linear Drives
Version / Date
1.3.0 2022-03-17
pdf - 2 MB
Add to List Remove from List
Documentation
User Manual MP111
M-687.UL XY stage for inverted Leica microscopes, with PILine® linear drives
Version / Date
1.1.0 2022-03-17
pdf - 1 MB
Add to List Remove from List
Brochures
Brochures
Microscope Stage Configurator
Sample Stages and Holders for Inverted Microscopes
Version / Date
BRO70E R3D
pdf - 4 MB
Download
U-780.DLS
PILine® XY stage system with controller and joystick; M-687.UL XY stage for inverted microscopes from Leica; PILine® piezo motor; 135 mm × 85 mm travel range (X × Y); 25 N load capacity; 120 mm/s × 120 mm/s maximum velocity; incremental linear encoder, 0.1 nm sensor resolution
Add to Quote List Remove from Quote List
U-780.DNS
PILine® XY stage system with controller and joystick; M-687.UN XY stage for inverted microscopes from Nikon; PILine® piezo motor; 135 mm × 85 mm travel range (X × Y); 25 N load capacity; 120 mm/s × 120 mm/s maximum velocity; incremental linear encoder, 0.1 nm sensor resolution
Add to Quote List Remove from Quote List
U-780.DOS
PILine® XY stage system with controller and joystick; M-687.UO XY stage for inverted microscopes from Olympus; PILine® piezo motor; 100 mm × 75 mm mm travel range (X × Y); 25 N load capacity; 120 mm/s × 120 mm/s maximum velocity; incremental linear encoder, 0.1 nm sensor resolution
Add to Quote List Remove from Quote List
