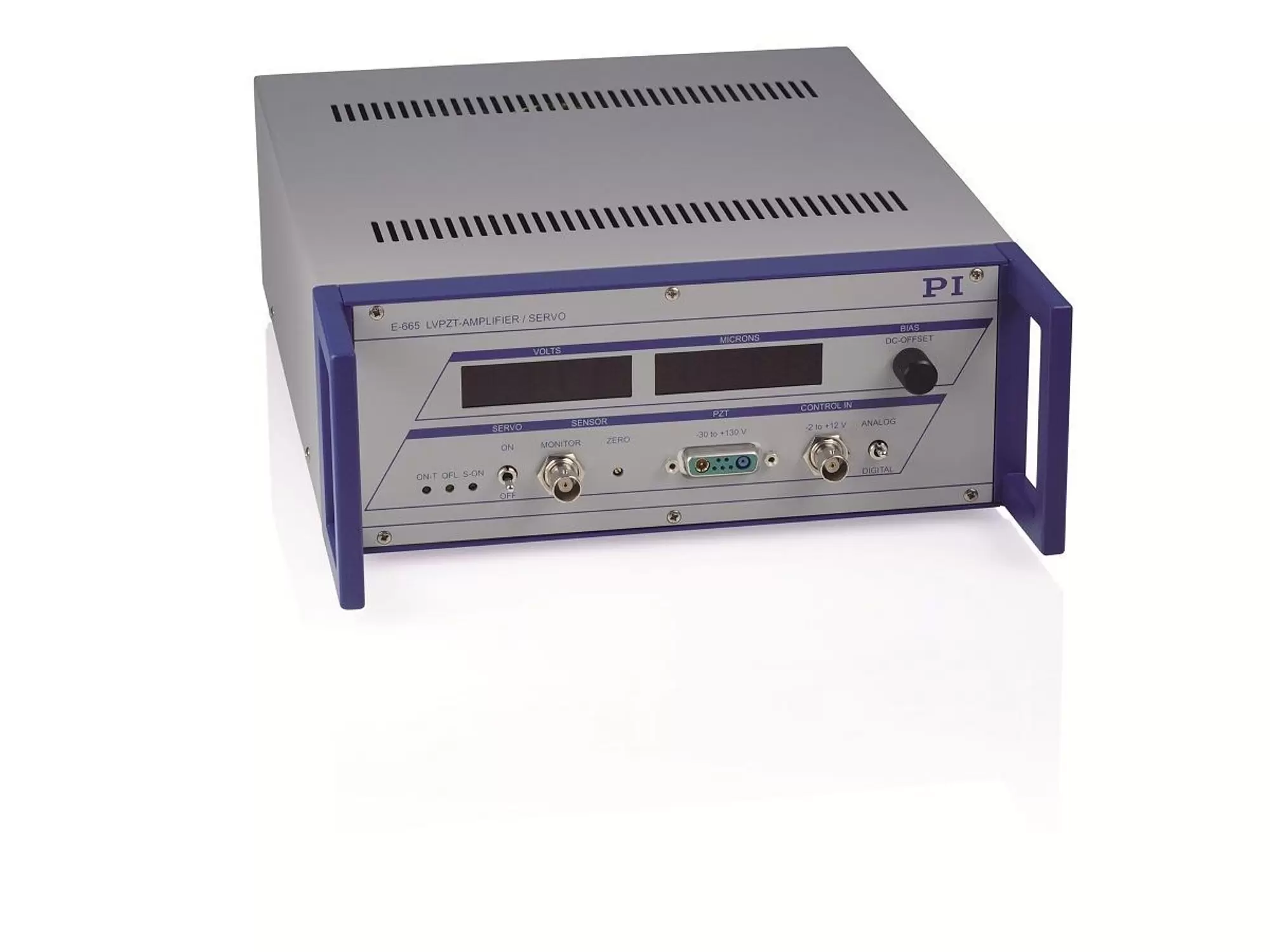

E-665 Piezo Amplifier / Servo Controller

For 1 Axis, with Analog and Digital Interface

360 mA Peak current
Notch filter for higher bandwidth
Position control for SGS and capacitive sensors
Table for user-defined curves
Integrated 24-bit USB interface (.CR, .SR)
Network capability up to 12 axes (.CR, .SR)

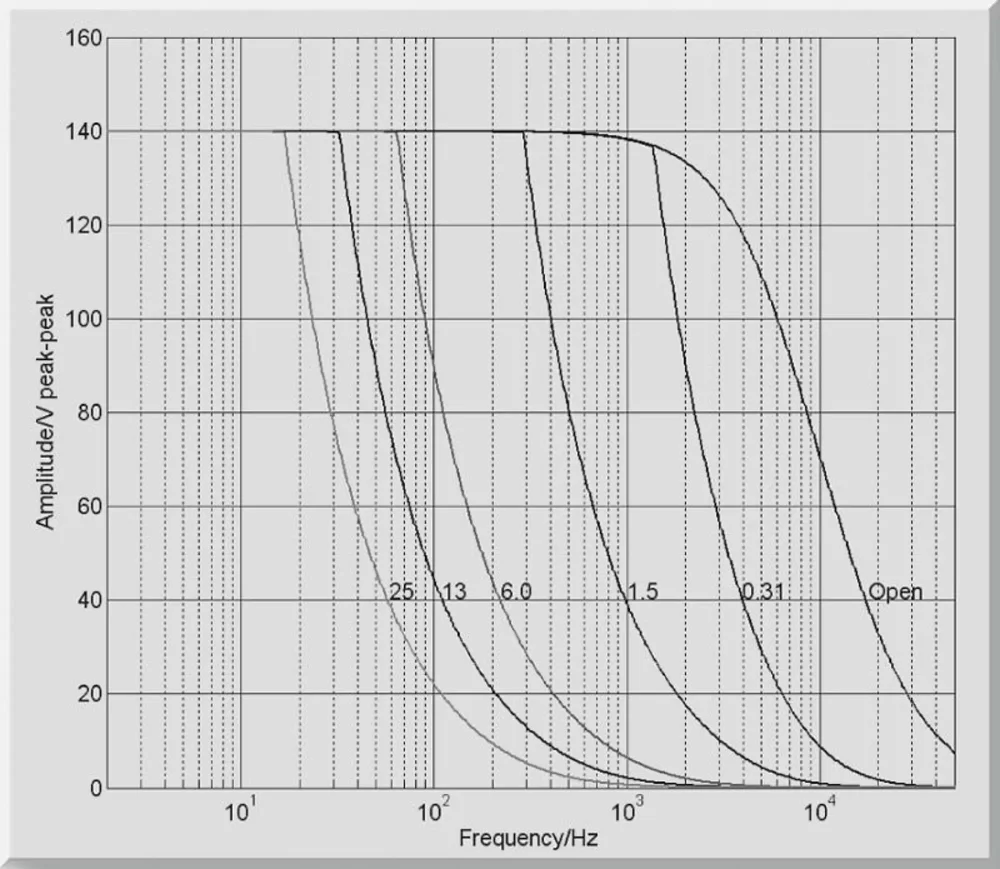

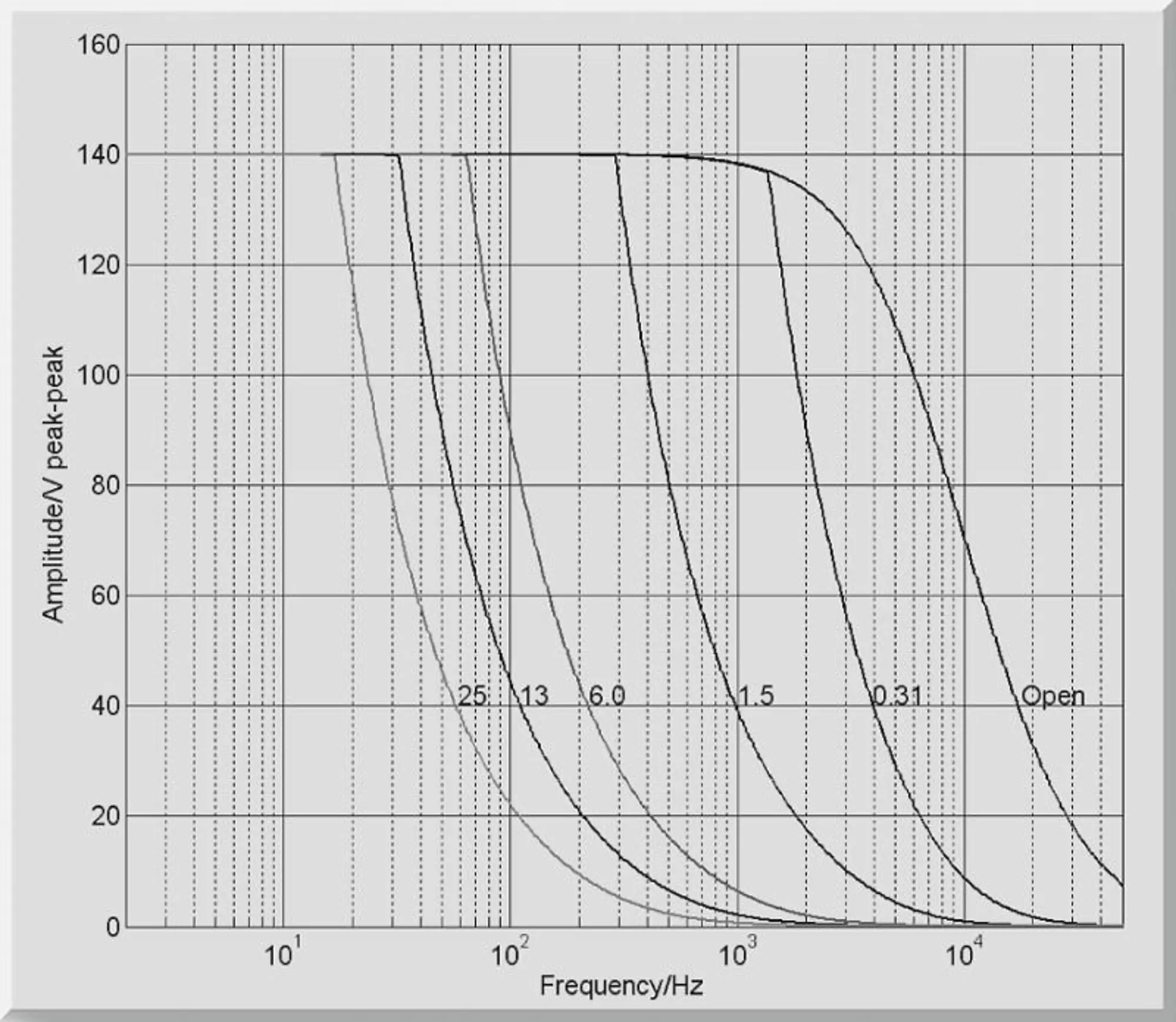

E-665: Operating limits (open loop) with various piezo loads, capacitance values in µF

	E-665.SR, E-665.S0 / E-665.CR
Function	Piezo amplifier and position servo controller
Axes	1

Sensor	E-665.SR, E-665.S0 / E-665.CR
Controller type	P-I (analog) + notch filter
Sensor type	SGS (.S) / capacitive (.C)

Amplifier	E-665.SR, E-665.S0 / E-665.CR
Input voltage range	-2 to +12 V
Output voltage range	-30 to +130 V
Peak current, < 20 ms	360 mA
Average output current	150 mA
Current limitation	Short-circuit proof
Noise, 0 to 100 kHz	0.5 (.S) / 4.0 (.C) mV_rms
Voltage gain	10 ±0.1
Input impedance	100 kΩ

Interfaces and operation	E-665.SR, E-665.S0 / E-665.CR
Communication interfaces*	USB, RS-232 (Sub-D 9 (m)), 24-bit A/D and 20-bit D/A
Piezo connection	LEMO ERA.00.250.CTL (.S) / Sub-D special (.C)
Sensor connection	LEMO EPL.0S.304.HLN (.S) / Sub-D special (.C)
Analog input	BNC
Sensor monitor socket	BNC
Controller network*	up to 12 channels, parallel
Supported functions*	Wave table; 256 data points, up to 16 macros
Display and indicators	2 × 4½ digits, LED
DC offset setting	10-turn potentiometer, adds 0 to 10 V to the input voltage

Miscellaneous	E-665.SR, E-665.S0 / E-665.CR
Operating temperature range	5 to 40 °C
Overheat protection	Deactivation at 80 °C
Dimensions	236 mm × 88 mm × 273 mm + handles
Mass	2.5 kg
Operating voltage	115 VAC / 230 VAC, 50-60 Hz (linear power adapter)
Max. power consumption	60 W

E-665.S0 without digital interface

Ask about custom designs!
